Home >> Ford >> 1986 >> Mustang V6-232 3.8L >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Hazard Warning Switch >> Diagrams >> Electrical Diagrams

Electrical Diagrams

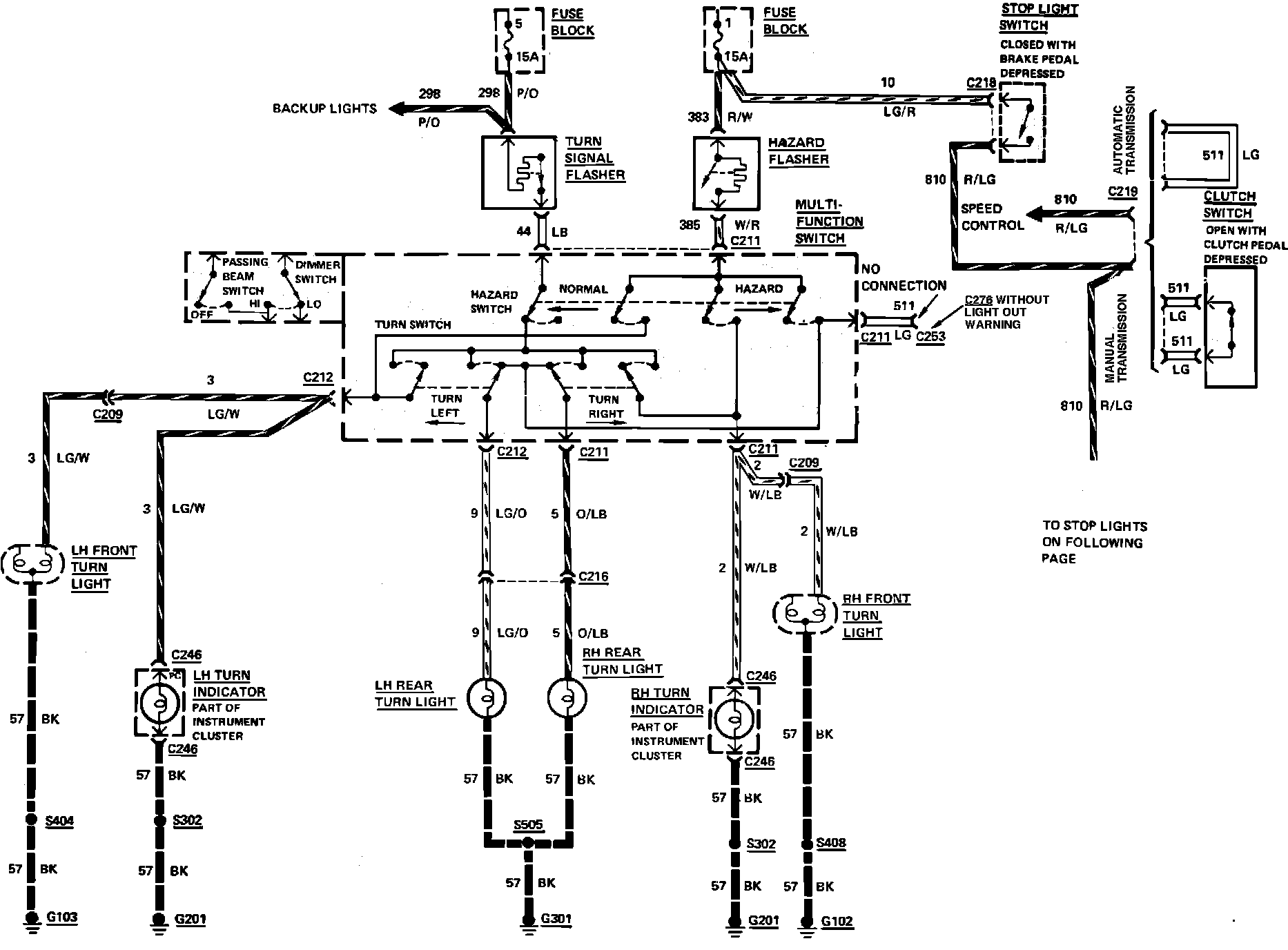

Fig. 33 Hazard, Stop & Turn Signal Wiring Circuit (Part 1 of 2). Mustang:

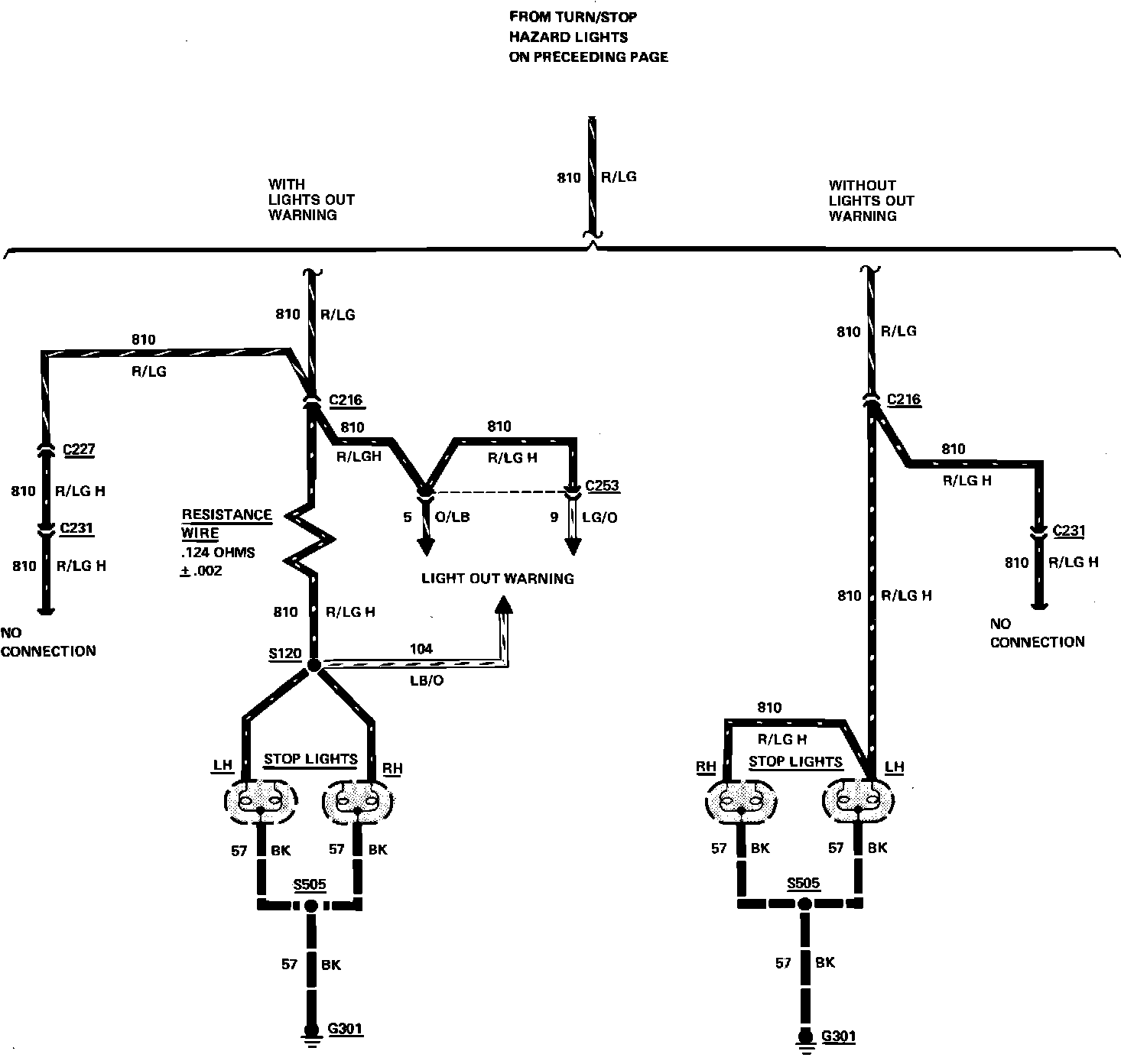

Fig. 33 Hazard, Stop & Turn Signal Wiring Circuit (Part 2 of 2). Mustang:
