Removal (Bronco & F150)

To remove locking hub, first separate locking hub cap assembly from hub body assembly by removing 6 Allen head cap screws from cap assembly, then slip components apart. Detach snap ring (retainer ring) from end of axle shaft.
Remove lock ring (seated in groove of wheel hub). See Fig 1 . Slide hub body assembly out of wheel hub. If necessary, use a puller to remove hub body assembly.

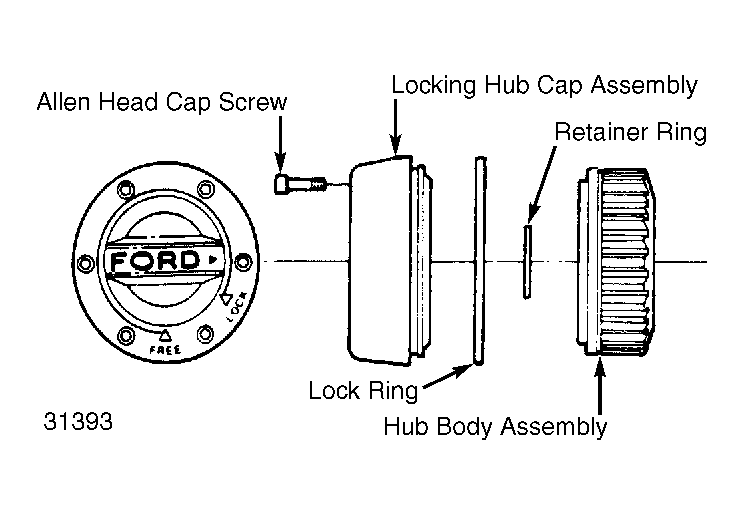

Fig 1: Exploded View of Manual Locking Hub

NOTE: Do not pack grease into locking hub cap. Too much grease can cause excessive dialing effort.
