Wiring Diagrams - Ranger & Bronco II: Wiring Diagram

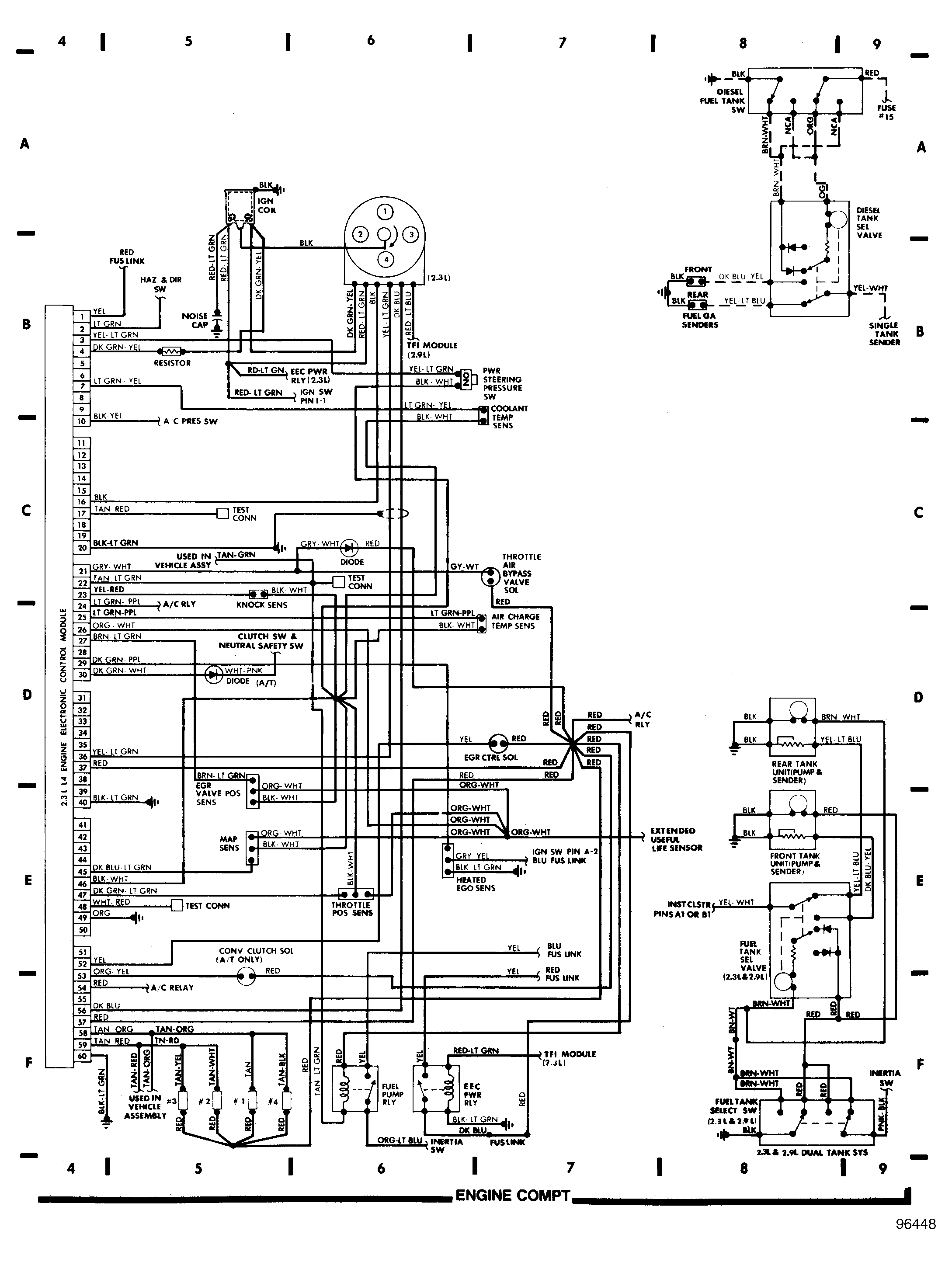

Fig 1: Engine Compartment

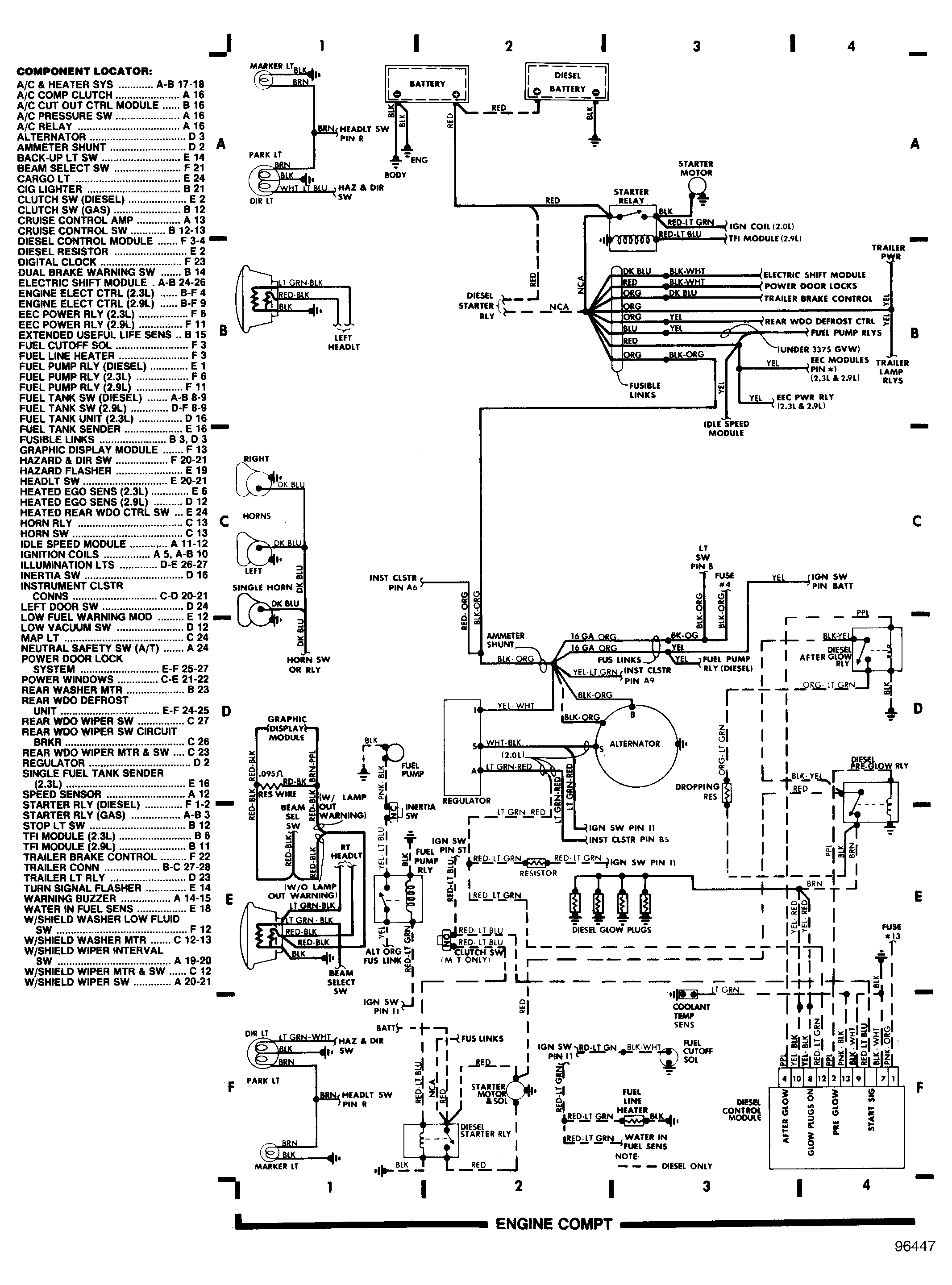

Fig 2: Engine Compartment (Cont.)

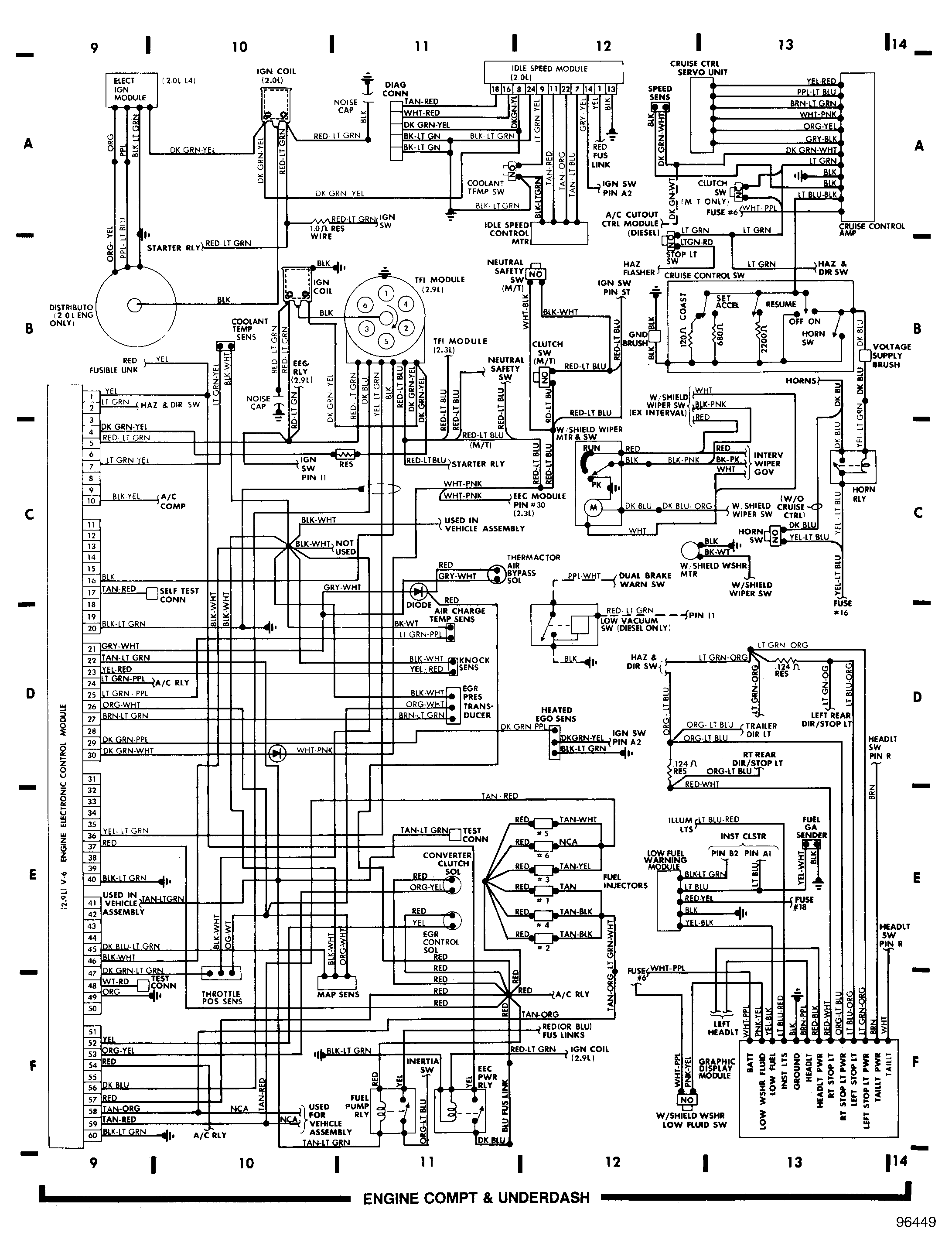

Fig 3: Engine Compartment & Underdash

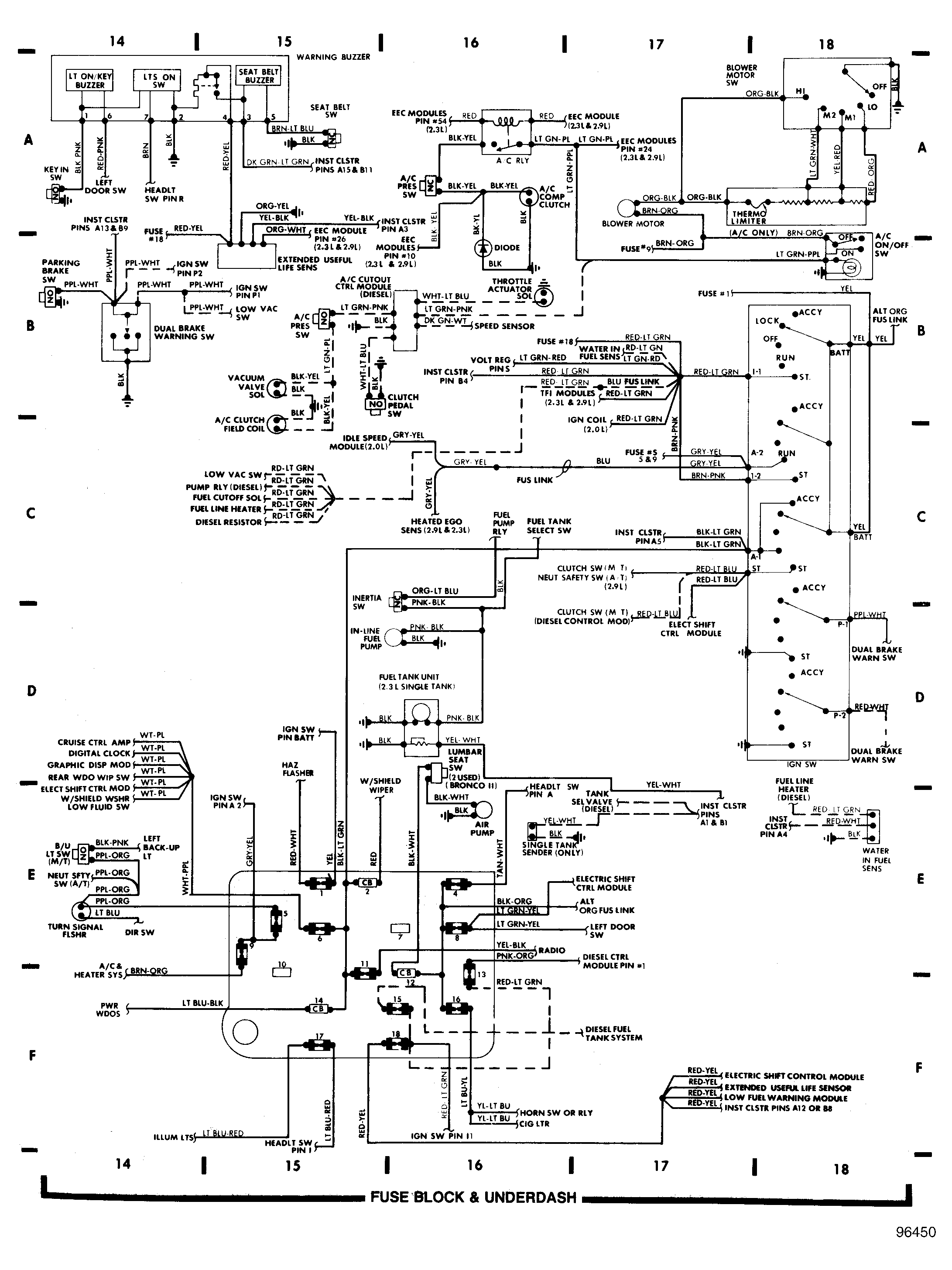

Fig 4: Fuse Block & Underdash

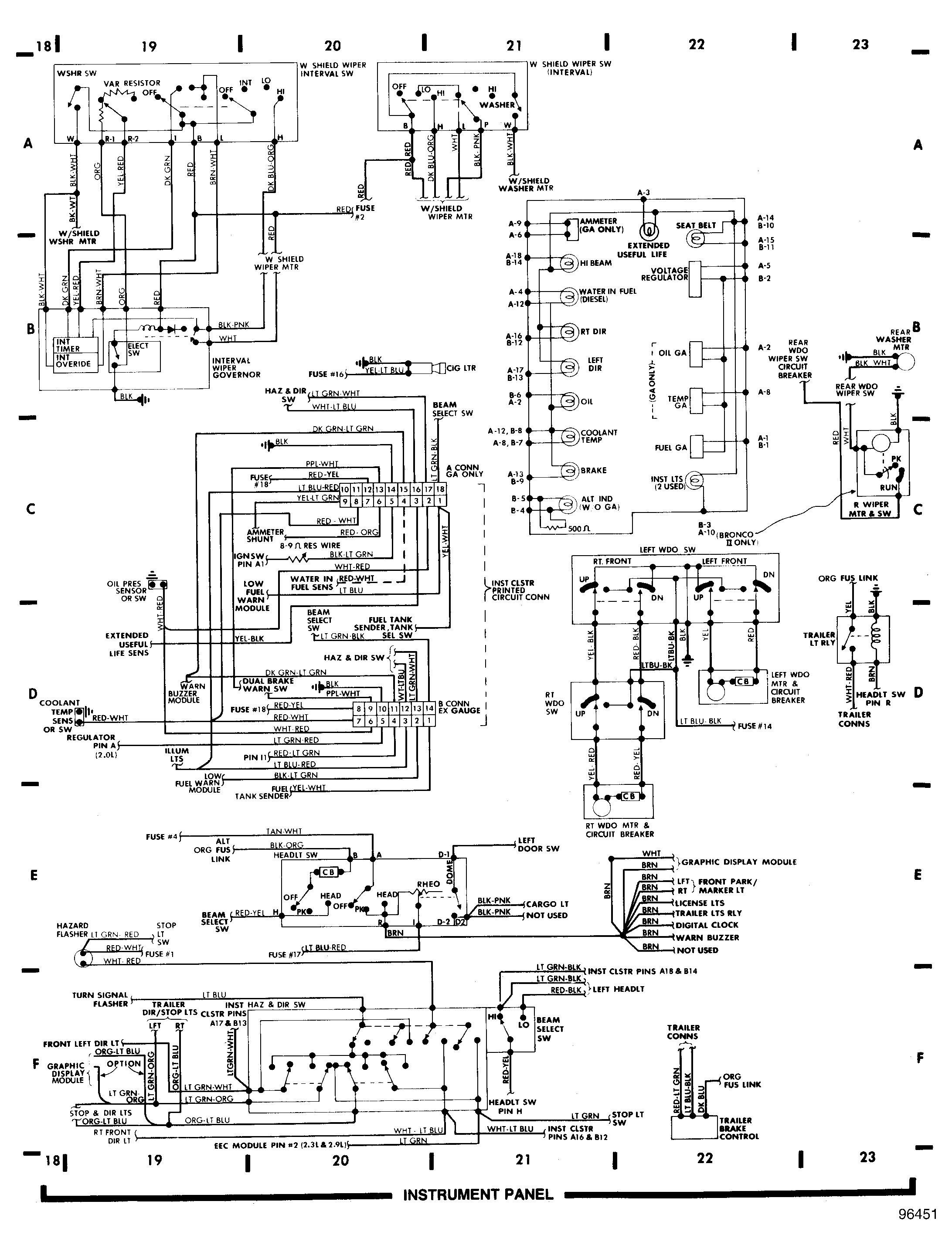

Fig 5: Instrument Panel

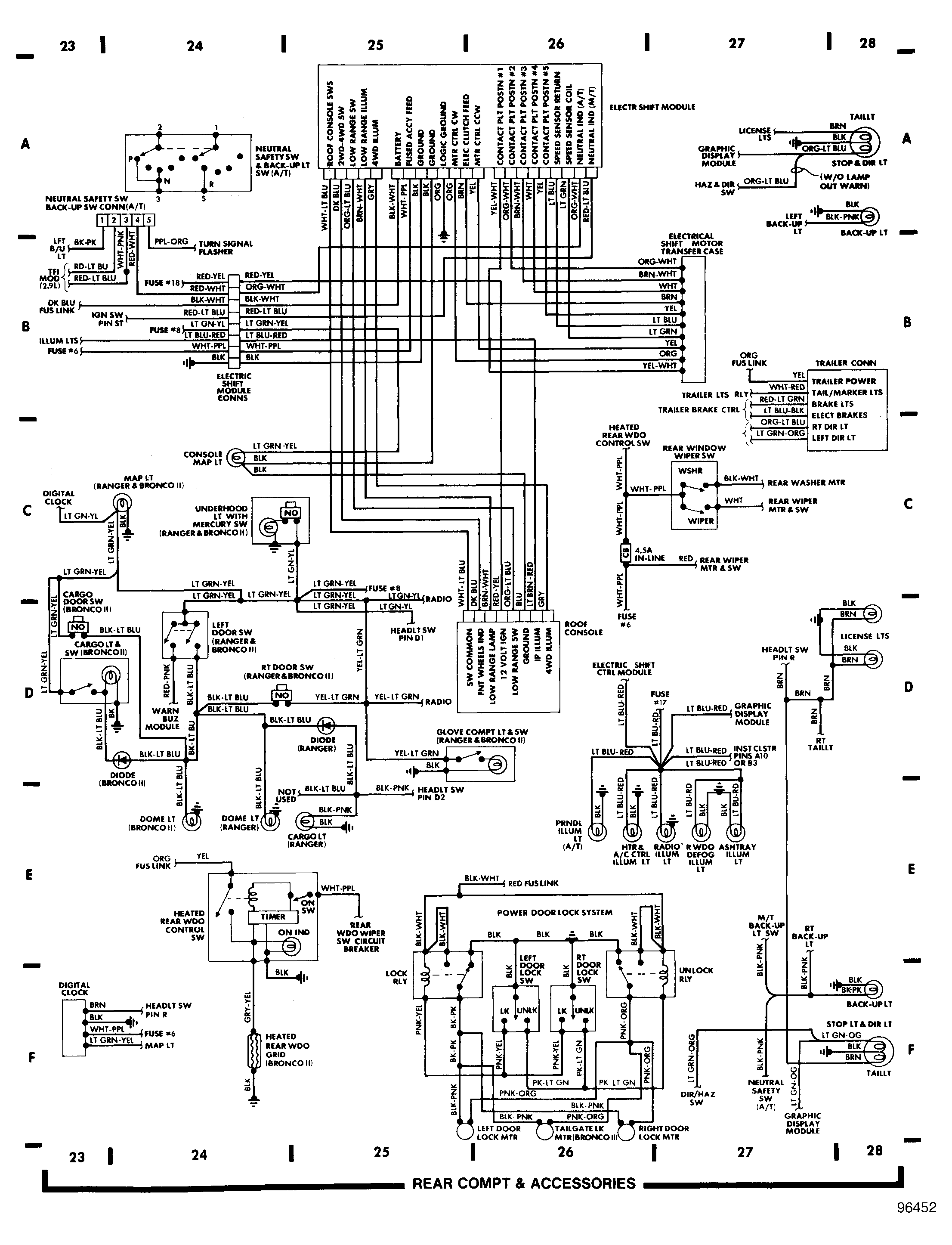

Fig 6: Rear Compaartment & Accessories
