Disc Brake Caliper: Disassembly

With caliper assembly removed from vehicle, pad interior of caliper with shop cloths. Apply compressed air to caliper inlet port to remove piston. If piston is seized, lightly tap around piston while applying air pressure. Remove dust boot from caliper. Using a plastic or wooden tool to prevent scratching caliper bore, remove piston seal from caliper groove.

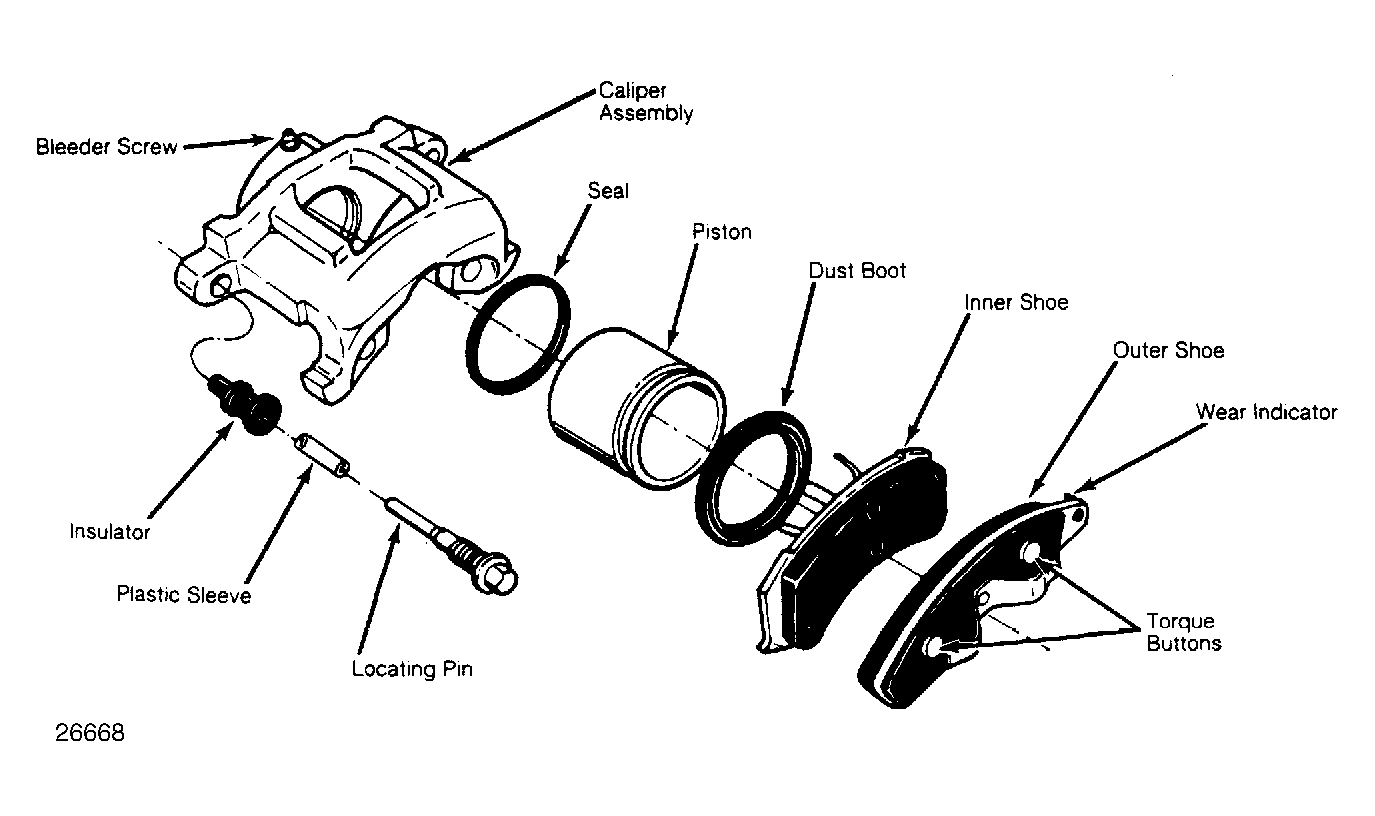

Fig 1: Exploded View of Front Sliding Caliper Assembly (Typical)

Courtesy of FORD MOTOR CO.

Fig 2: Exploded View of Rear Sliding Caliper Assembly

Courtesy of FORD MOTOR CO.
