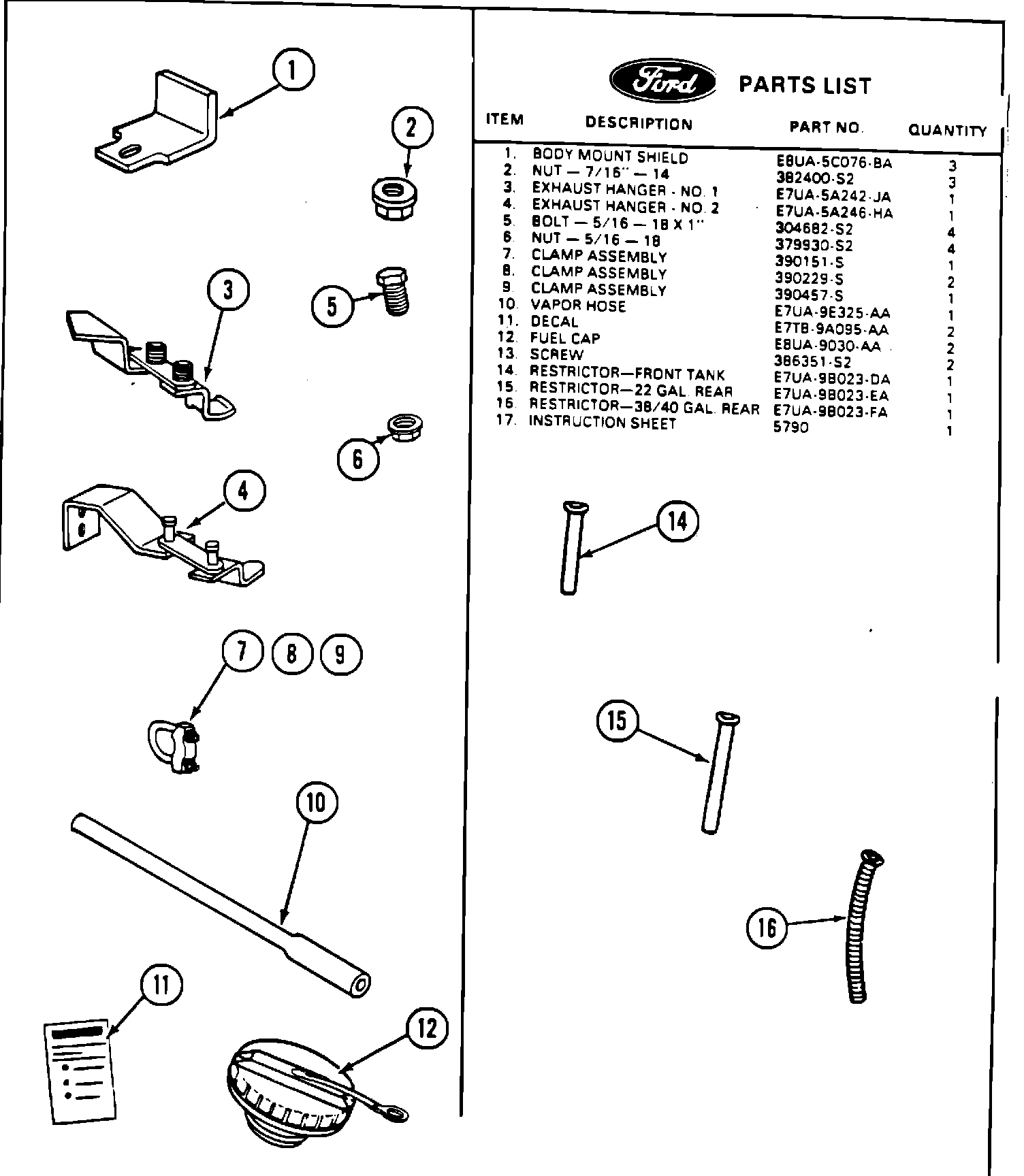

Ambulance - Heat Protection Components: Overview

87ford27 TSB # 5790

KIT Y

PART NO. E5UZ-9000-B HEAT PROTECTION

1983 - 1987 E350 ECONOLINE
SPECIAL NOTE:

The following instructions describe the installation procedure for the improved heat protection components on the Ford E350 based ambulances. These vehicles are completed or modified by many different final stage manufacturers. It is not possible to identify all the designs and modifications used by these manufacturers. Therefore, if you encounter difficulties not anticipated in these instructions, contact the closest Ford Parts and Service Division District Office for assistance.



The following additional kit is required to be used in conjunction with this kit: Van/Club Wagons require Kit E3UZ-9000-E (Kit X) or Cutaway/Stripped Chassis vehicles require Kit E3UZ-9000-G (Kit E).
KIT Y
PART NO. E5UZ-9000-B

HEAT PROTECTION
1983 - 1987 ECONOLINE WITH 7.5L ENGINES
