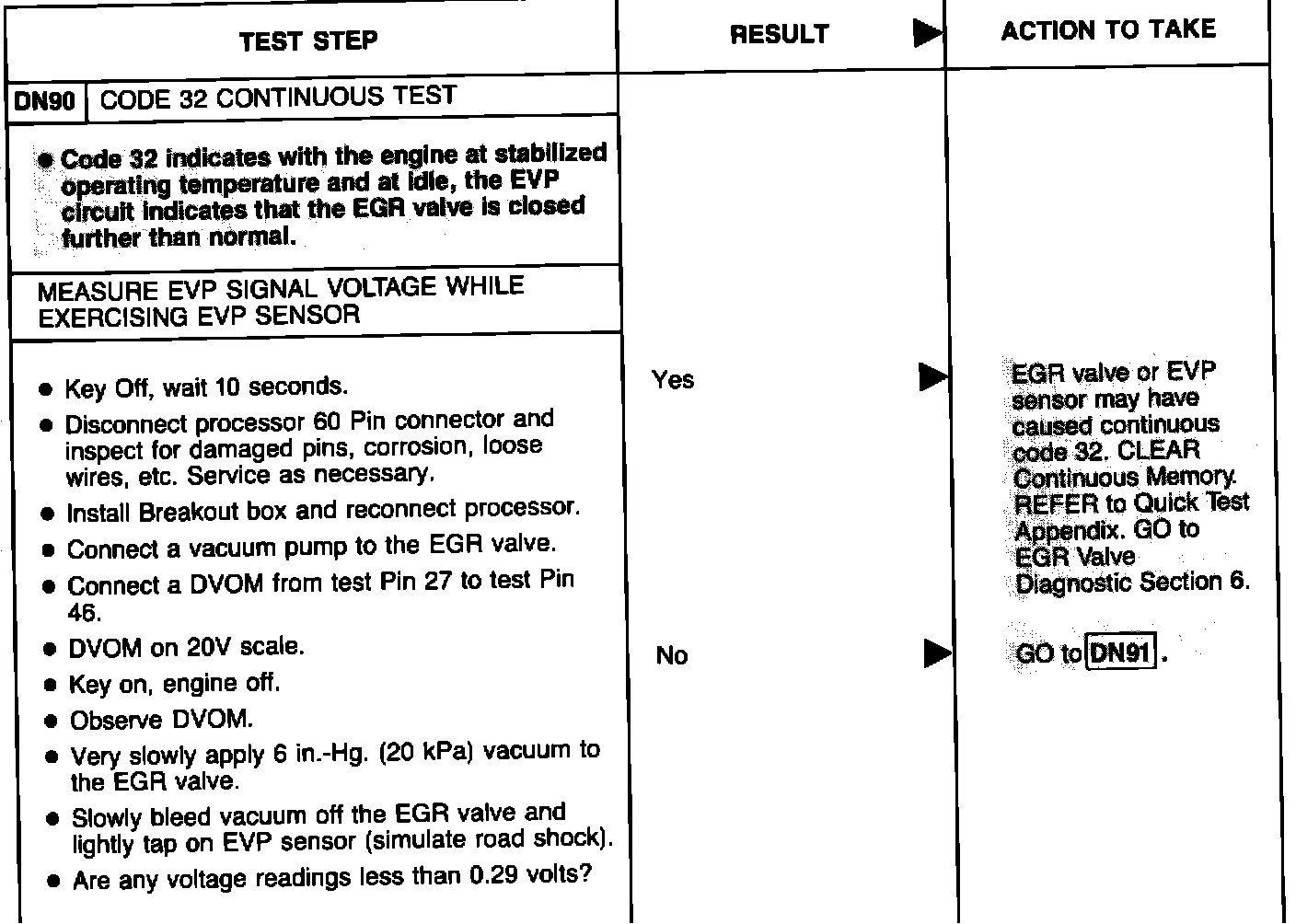

Pinpoint Test - DN - EGR - EVP & EVR

1987

EEC IV - Pinpoint Tests - All Vehicles 19-91


EGR VALVE Position Sensor (EVP)
EGR Valve Regulator (EVR) - 2.3L HSC, 2.5L,
5.0L SEFI Passenger Car and 4.9L and 5.0L Truck
Pinpoint Test DN

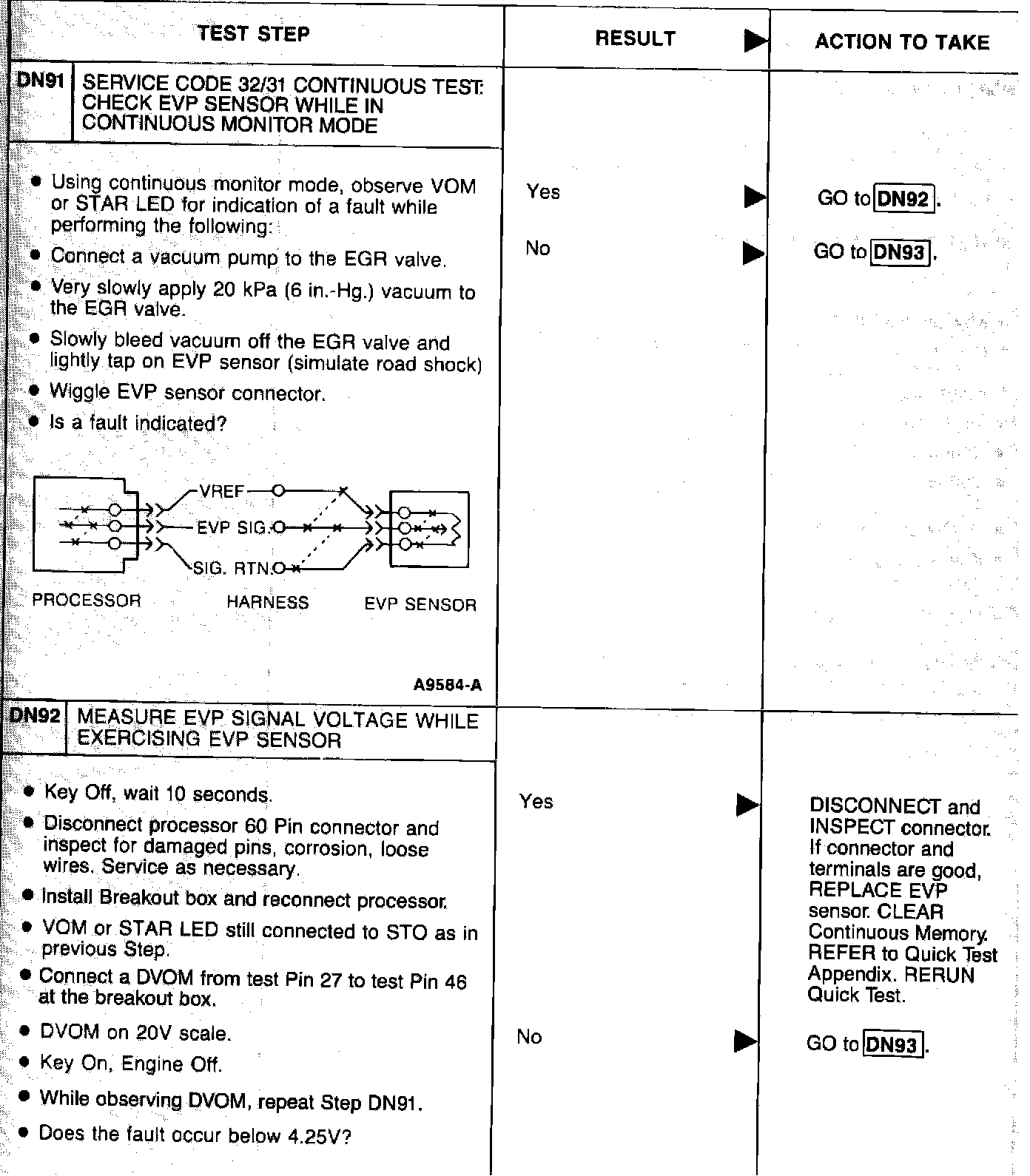

19-92A 1987

EEC IV Pinpoint Tests-All Vehicles


EGR Valve Position Sensor (EVP)
EGR Valve Regulator (EVR) - 2.3L HSC, 2.5L,
Pinpoint Test DN
5.0L SEFI Passenger Car and 4.9L and 5.0L Truck




1987

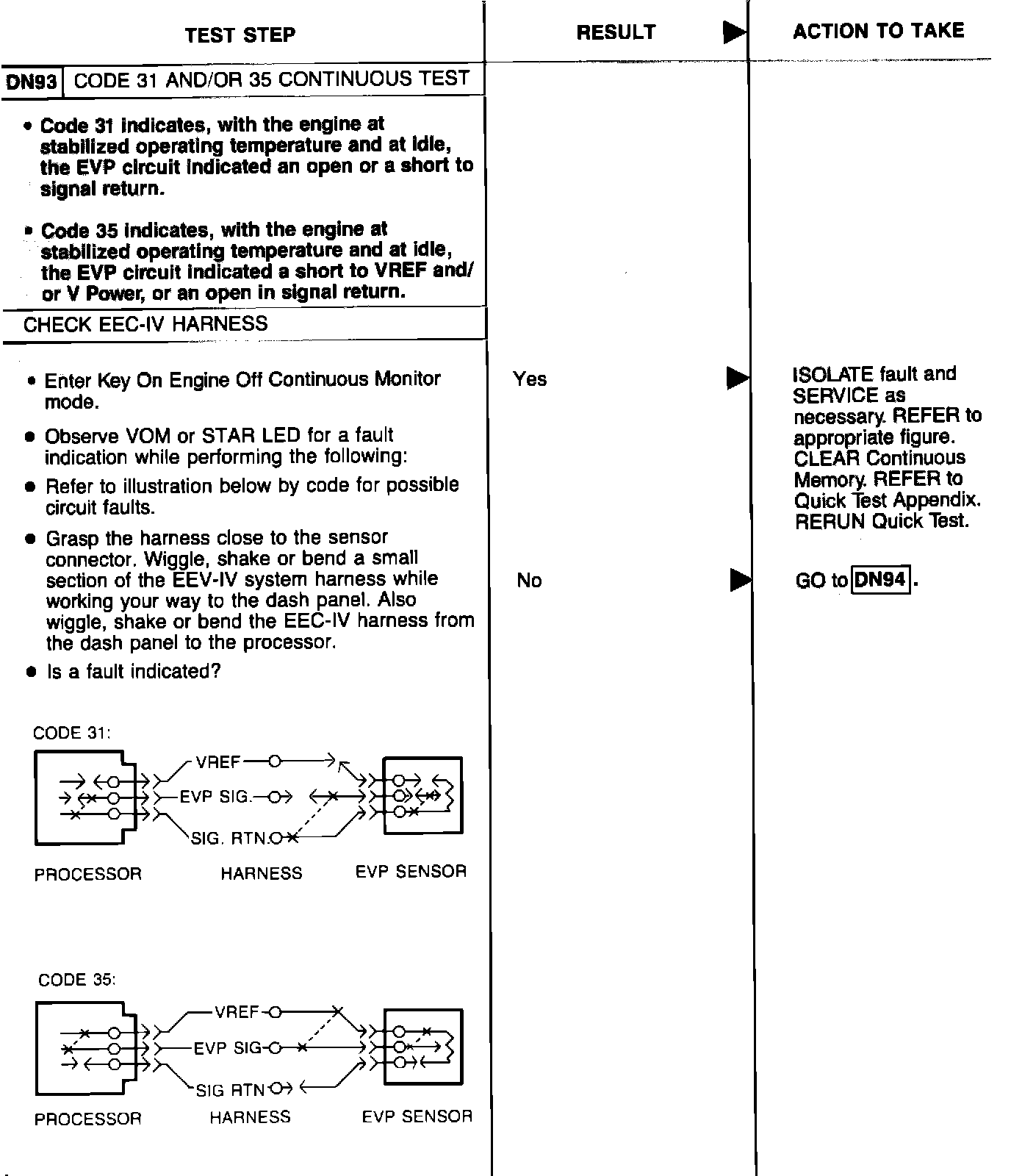

EEC IV-Pinpoint Tests-All Vehicles 19-92B


EGR Valve Position Sensor (EVP)
EGR Valve Regulator (EVR) - 2.3L HSC, 2.5L,
5.0L SEFI Passenger Car and 4.9L and 5.0L Truck
Pinpoint Test DN




1987

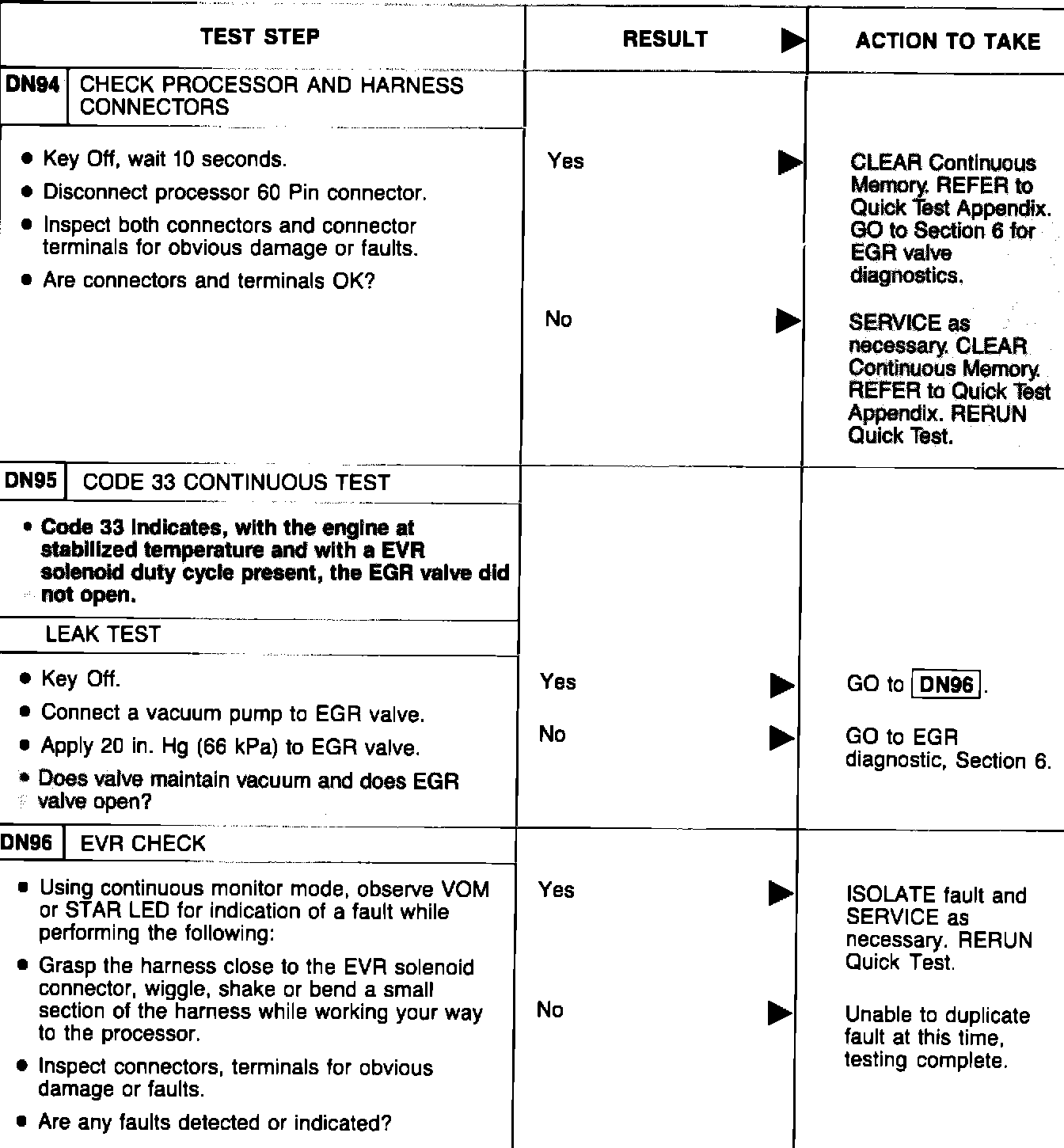

19-93-A EEC IV-Pinpoint Tests-All Vehicles


EGR Valve Position Sensor (EVP)
EGR Valve Regulator (EVR) - 2.3L HSC, 2.5L,
5.0L SEFI Passenger Car 4.9L and 5.0L Truck
Pinpoint Test DN

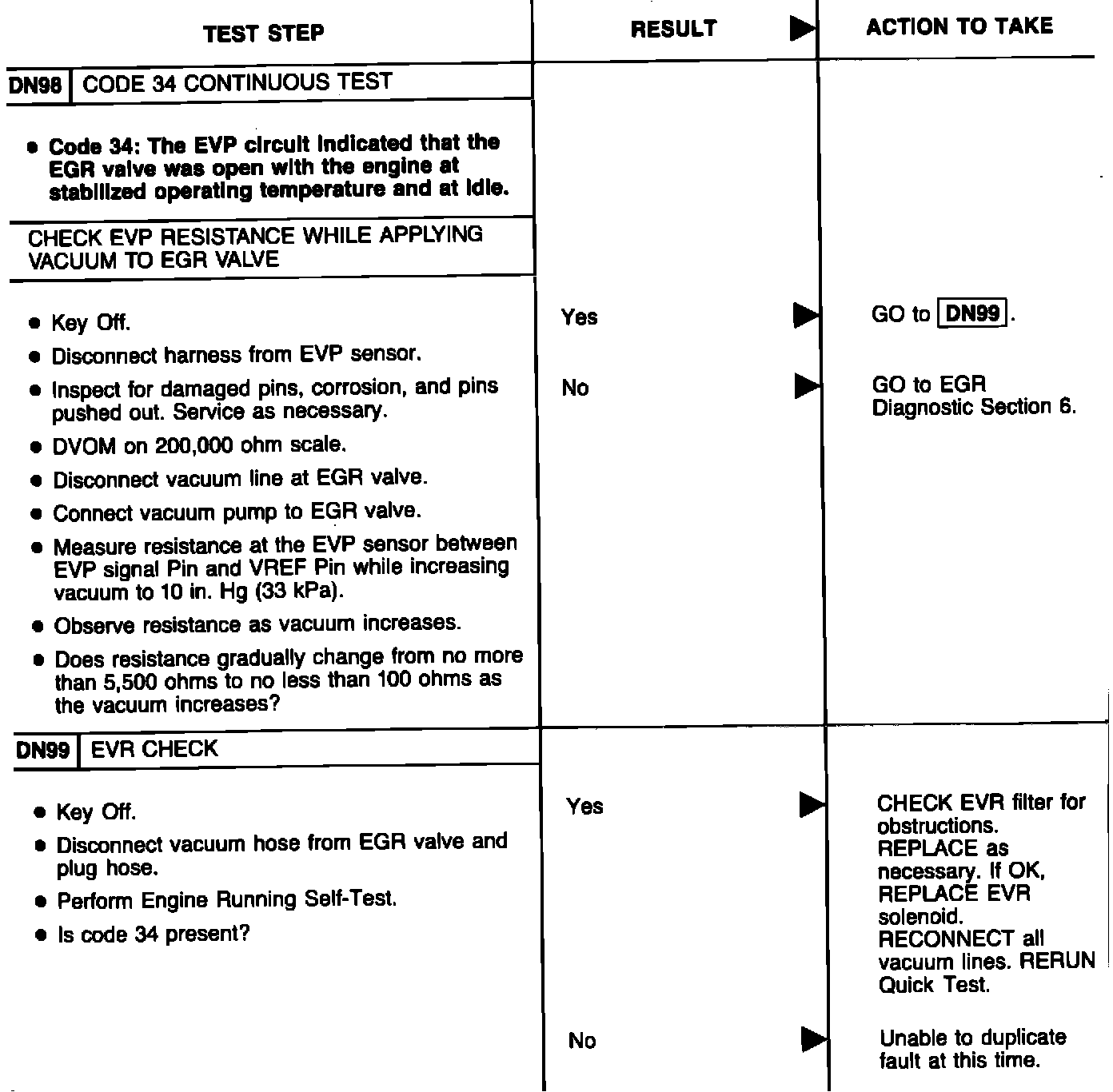

EEC IV-Pinpoint Tests-All Vehicles 1987 19-94


EGR Valve Position Sensor (EVP)

Pinpoint Test DN

EGR Valve Regulator (EVR)
