Fig. 164 W/Auto. Trans. Codes 4-98S-R0 & R10 Calif.
Fig. 164 W/Auto. Trans. Codes 4-98S-R0 & R10 Calif.

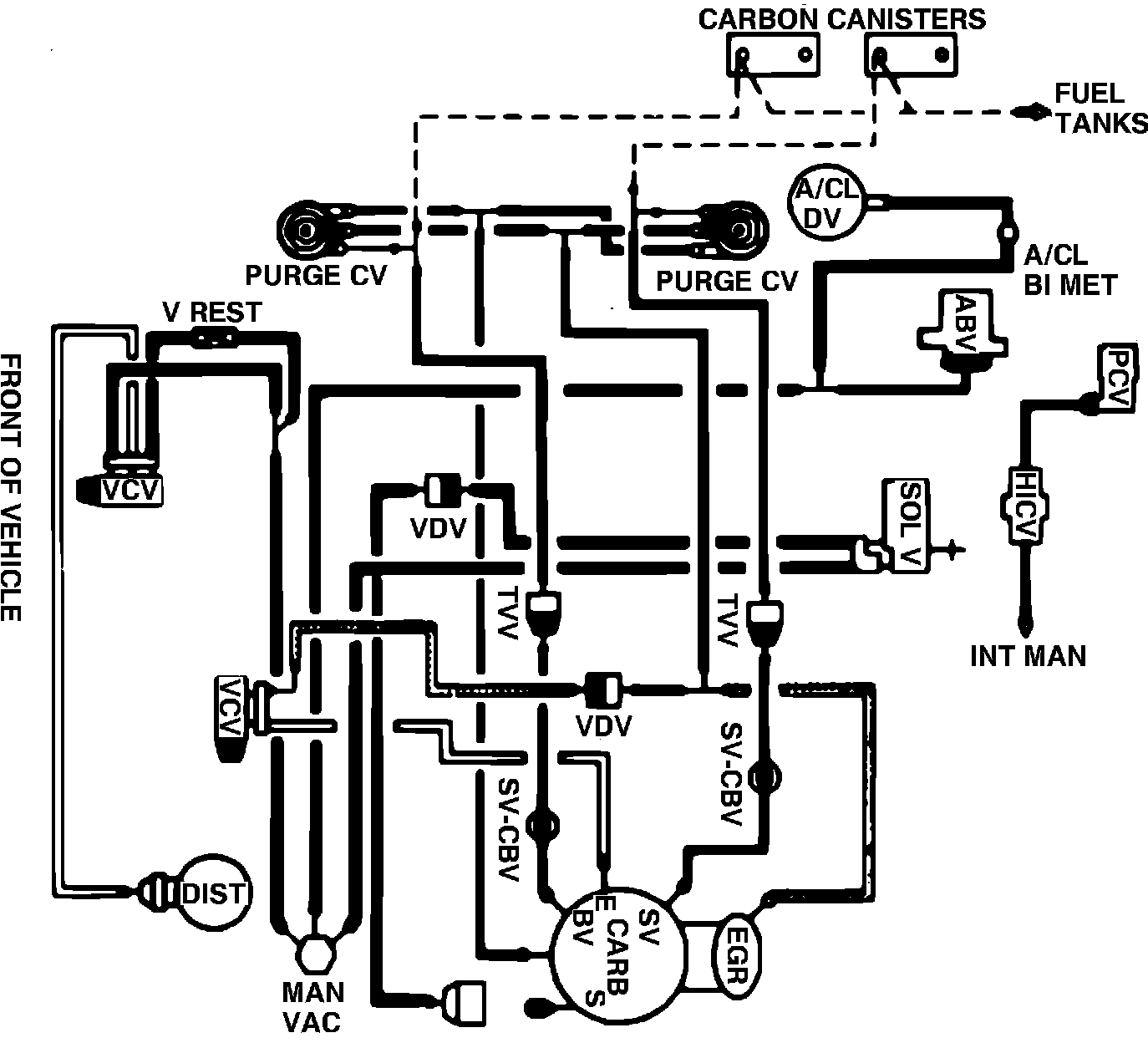

Fig. 164 Vacuum hose routing. 1985 V8-460 E & F150 & 250 w/auto. trans. Calib. codes 4-98S-R0 & R10 Calif.:
