Dome Lamp
Dome Lamp

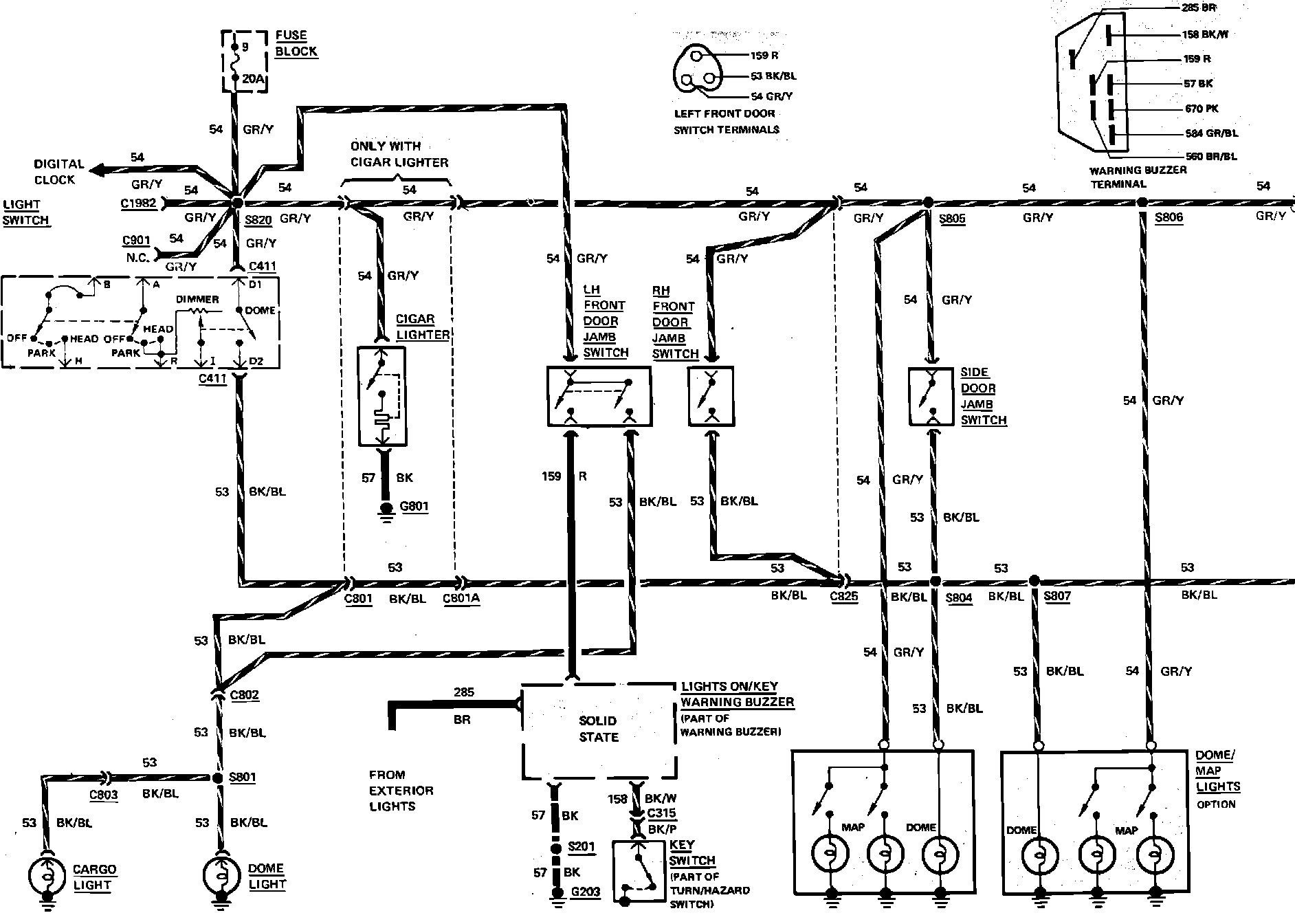

Cargo, Courtesy, Dome & Lamps-On Warning System Wiring Circuit (Part 1 of 2):
Fig. 11 Cargo, Courtesy, Dome & Lamps-On Warning System Wiring Circuit (Part 2 of 2). 1985:
