Ford
>>
1985
>>
E 250 Van V8-302 5.0L
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Windows
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

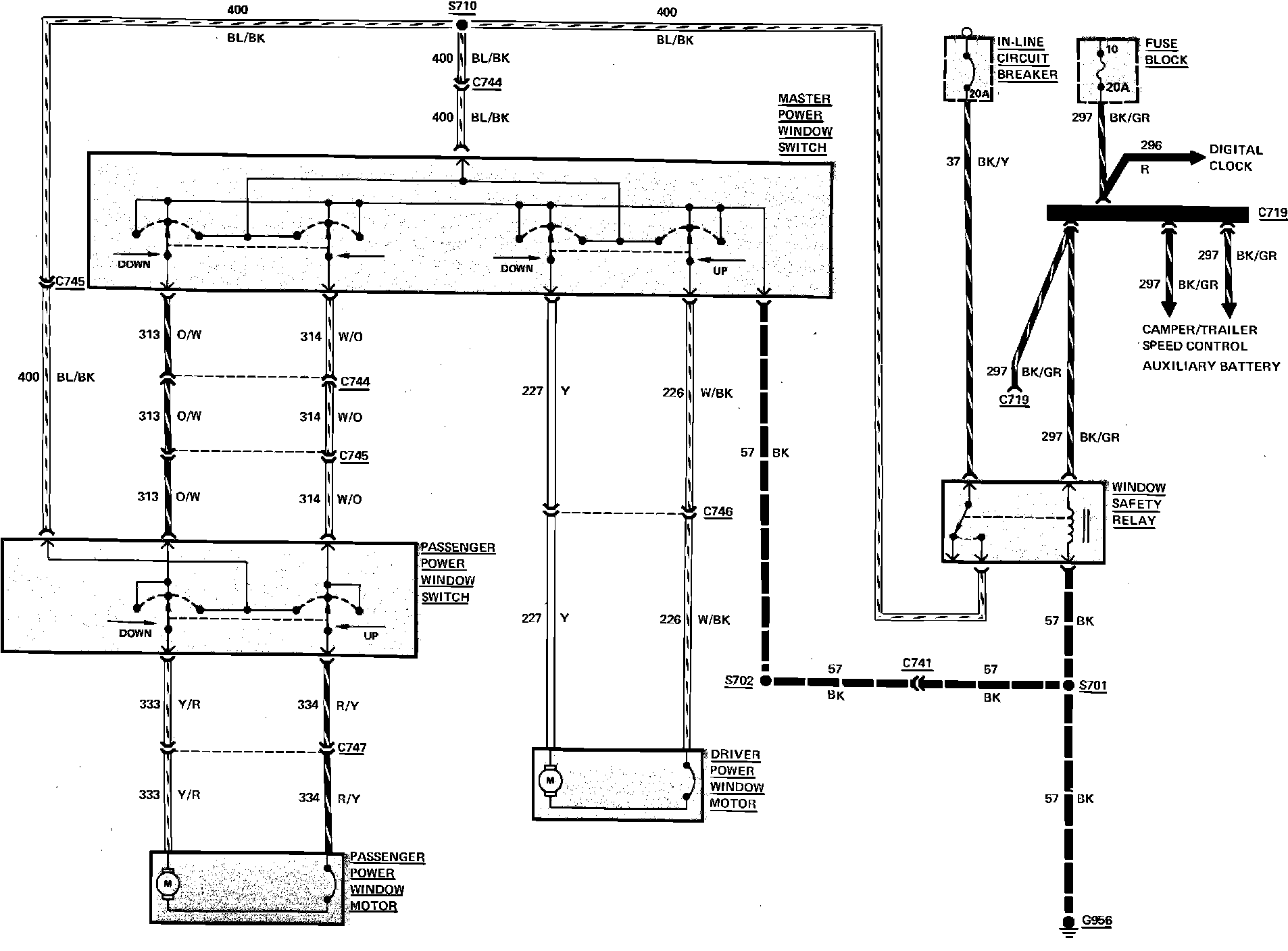

Fig. 37 Power Windows Wiring Circuit. 1985:
