Standard Circuit Number Chart

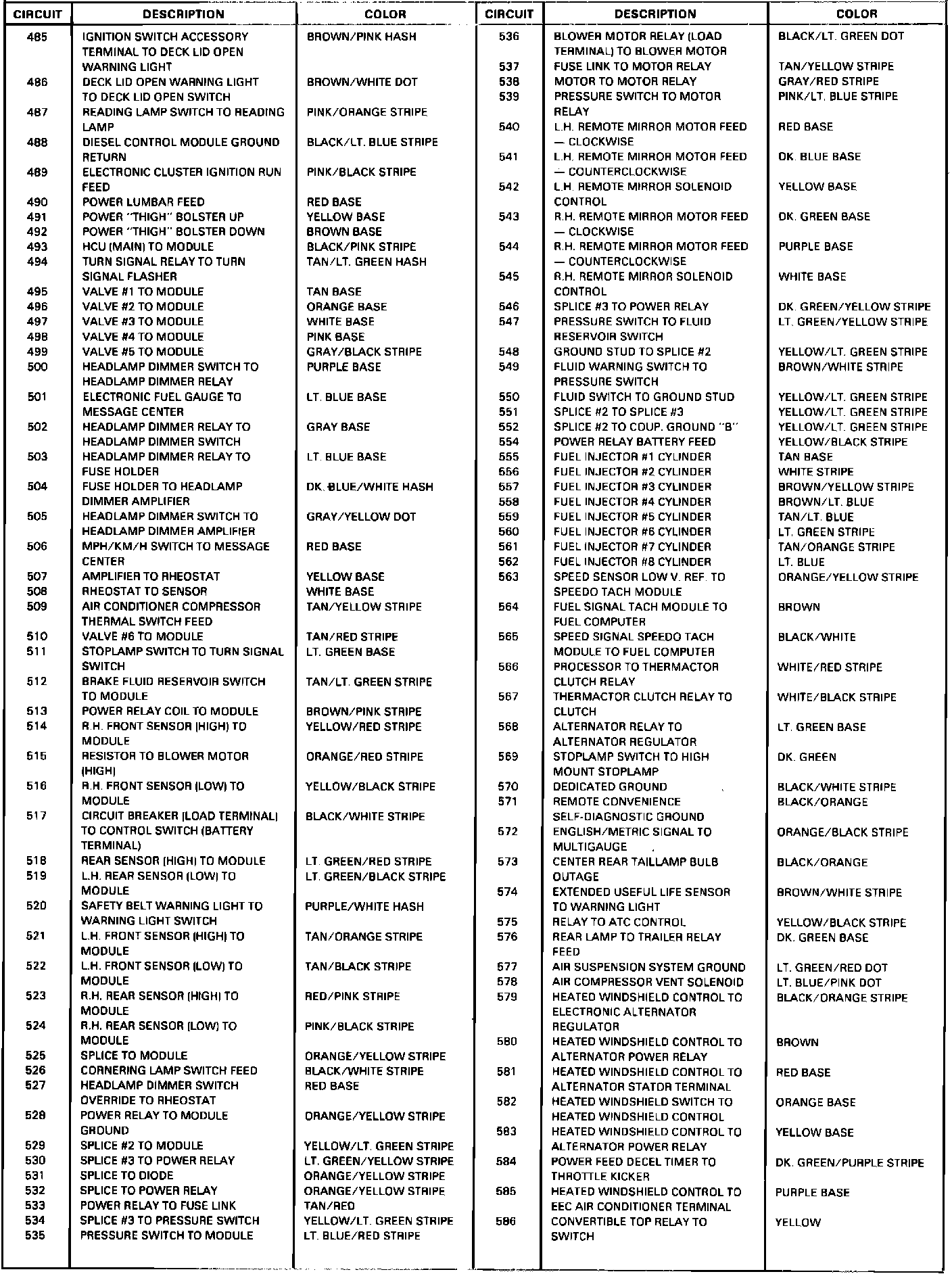

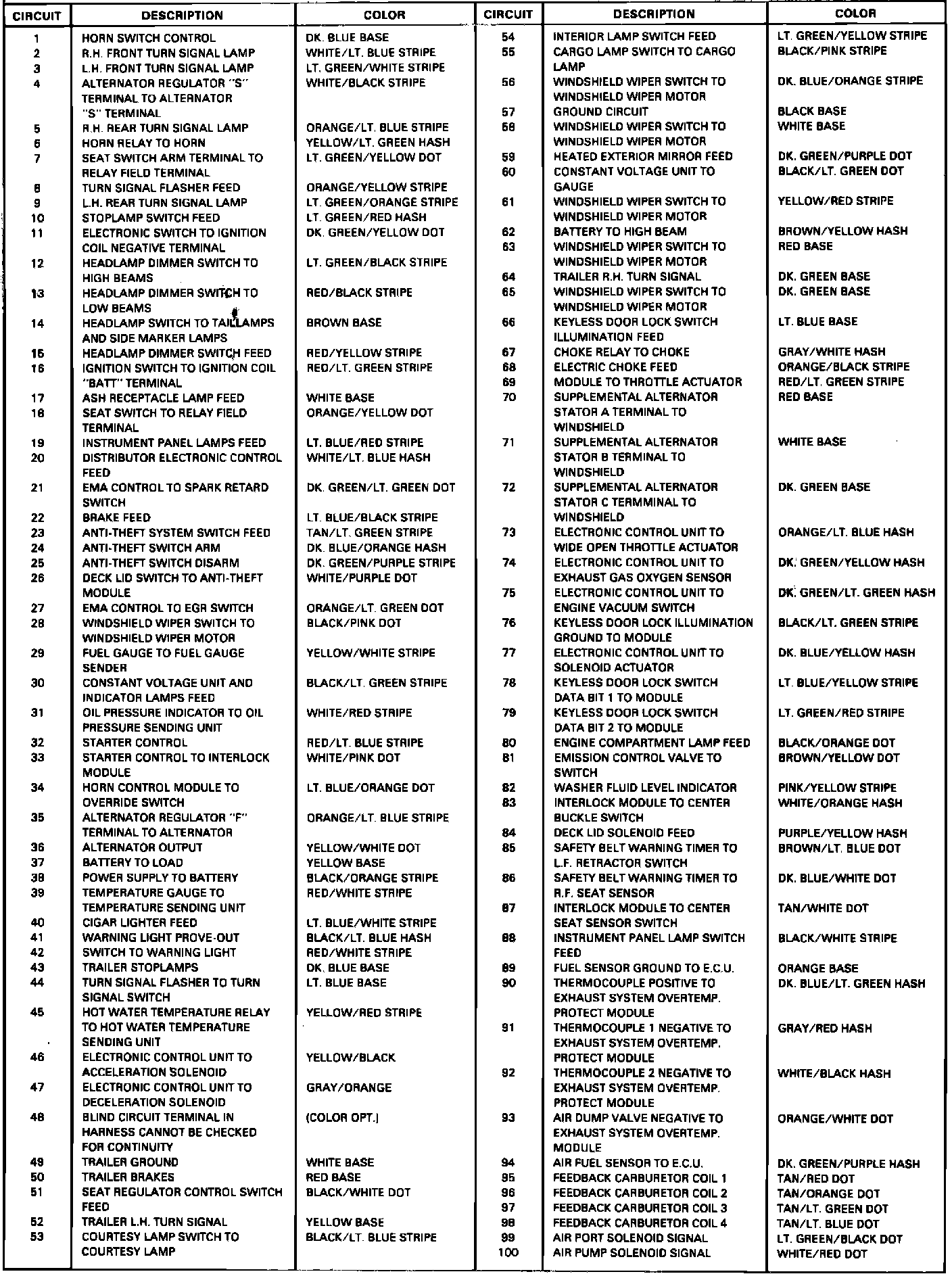

STANDARD CIRCUIT NUMBER CHART

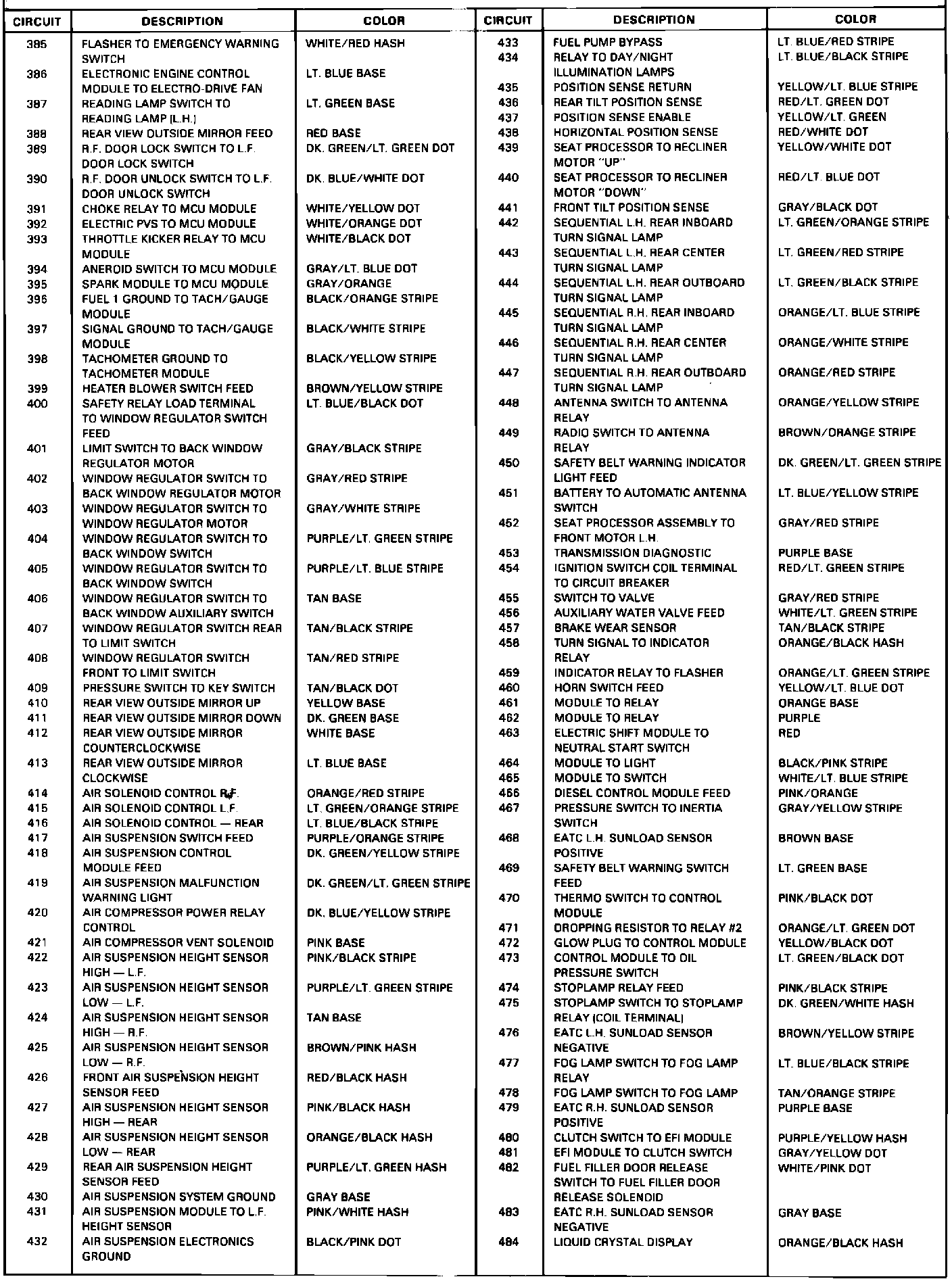

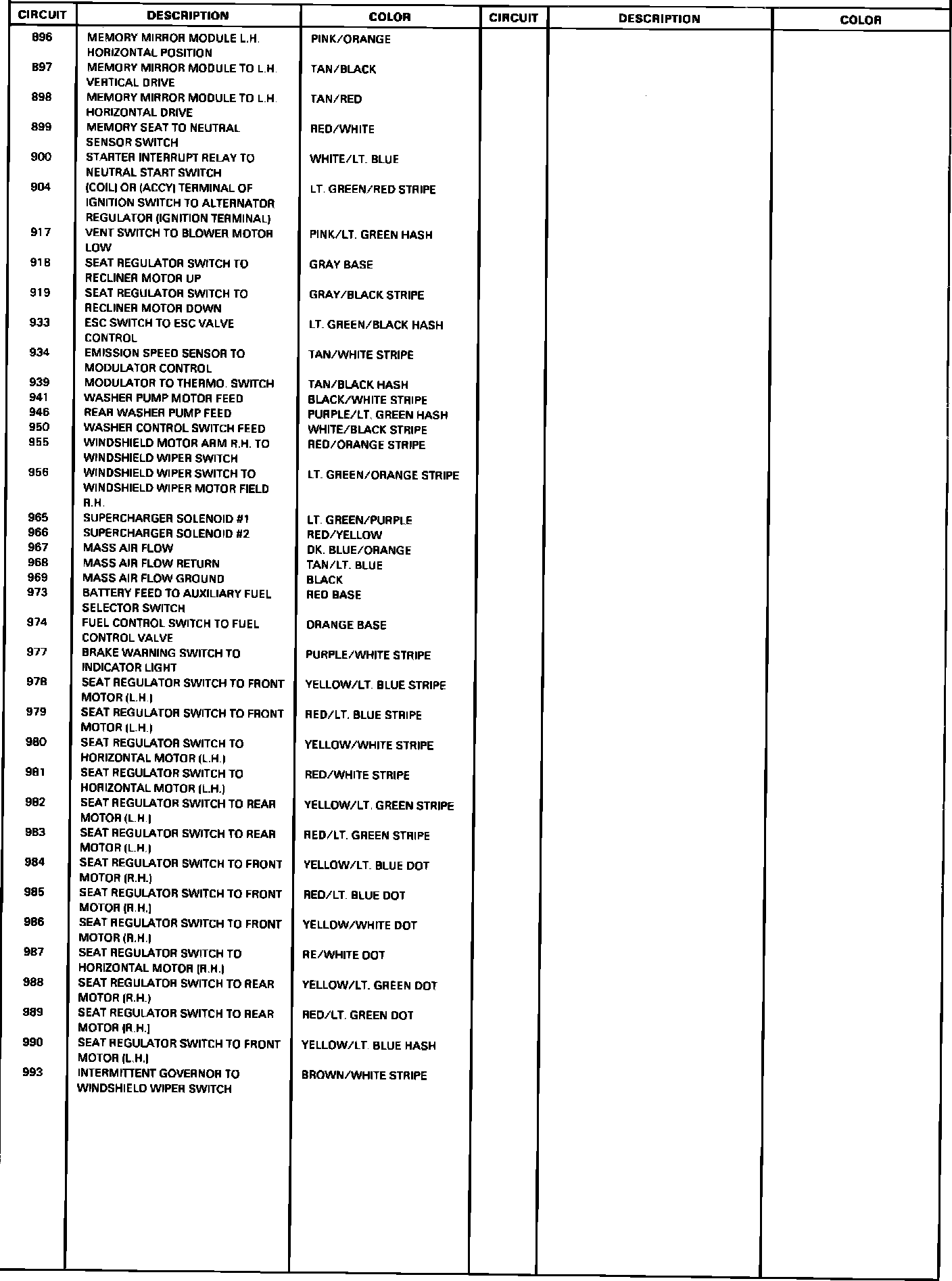

STANDARD CIRCUIT NUMBER CHART

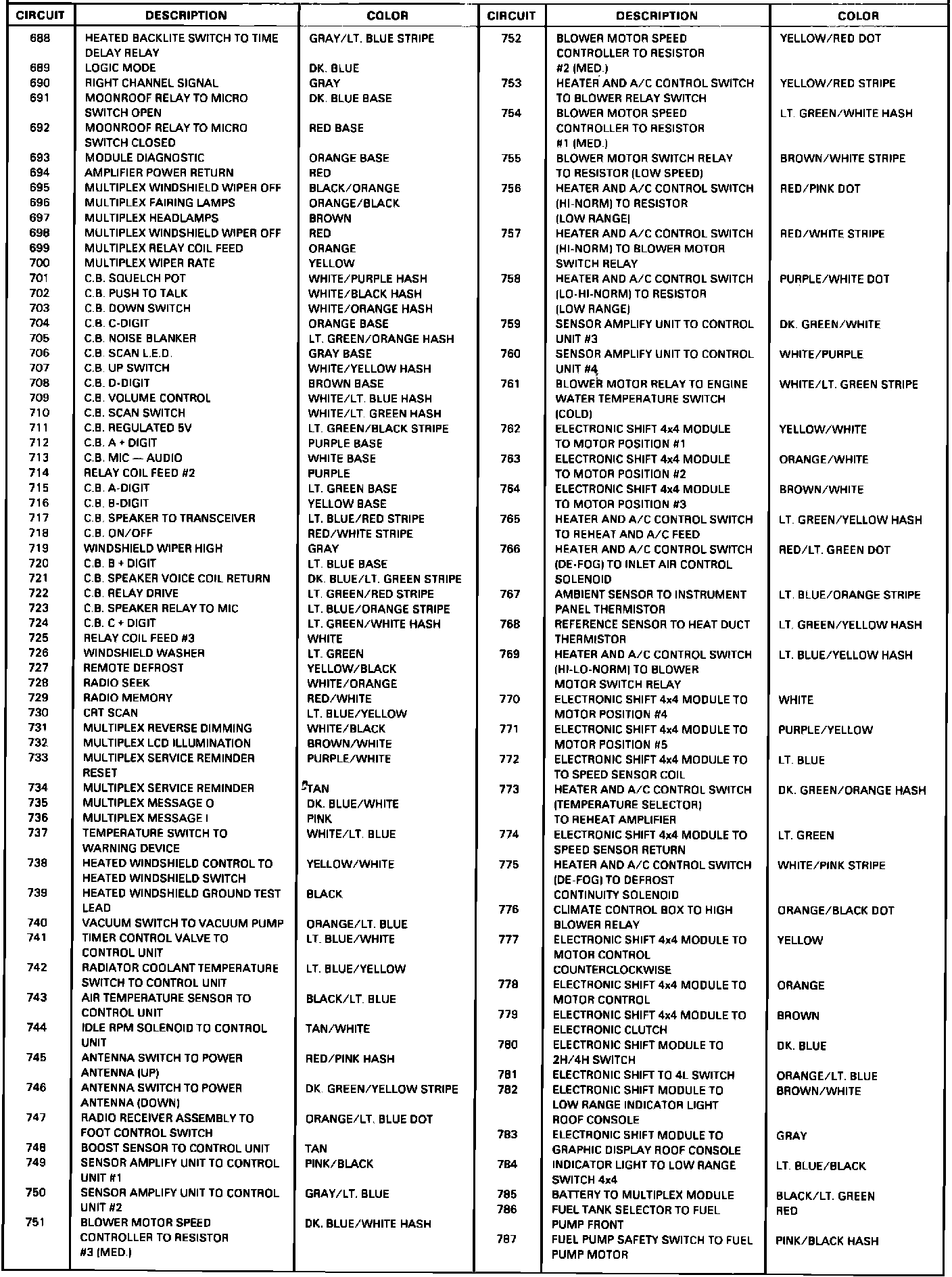

STANDARD CIRCUIT NUMBER CHART

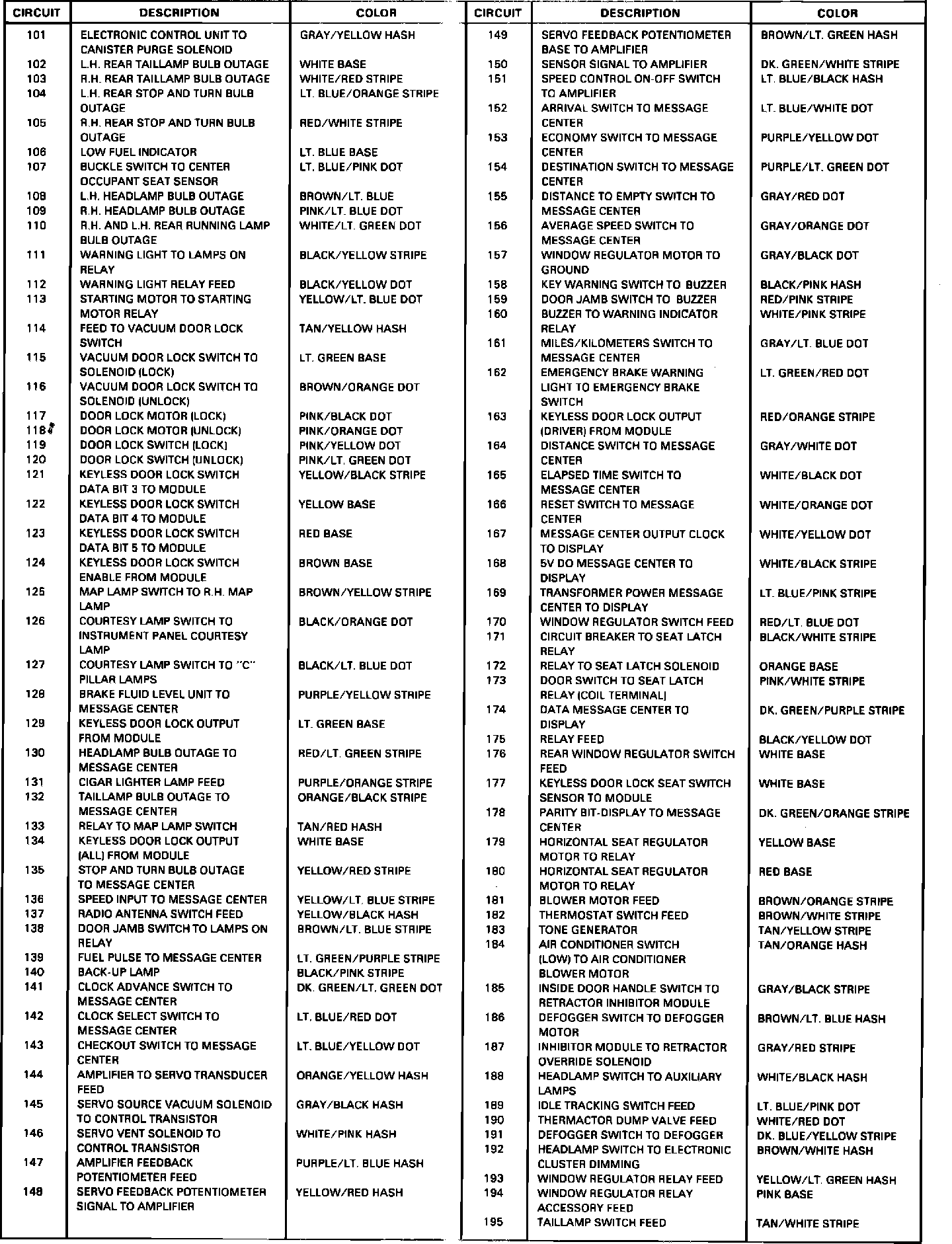

STANDARD CIRCUIT NUMBER CHART

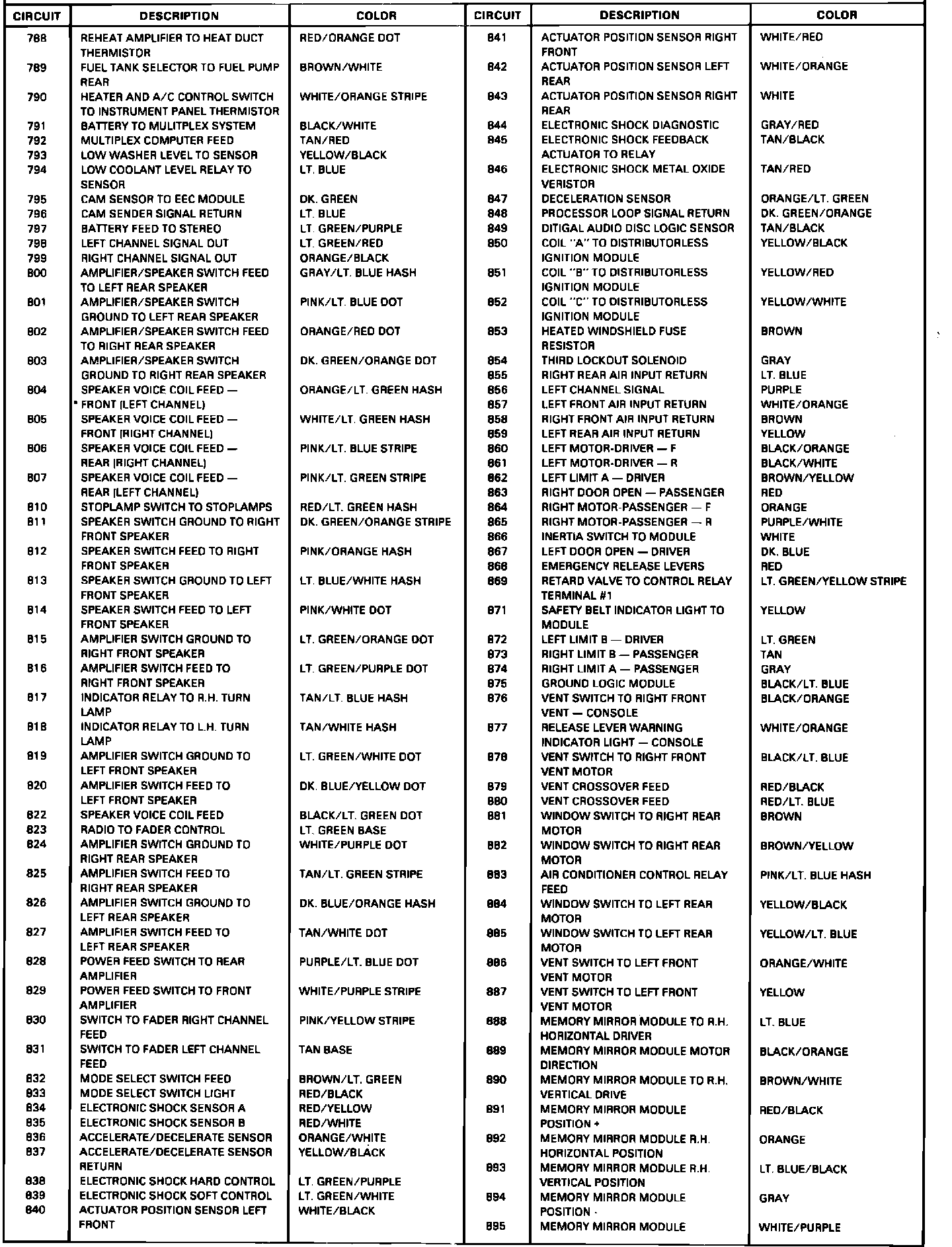

STANDARD CIRCUIT NUMBER CHART

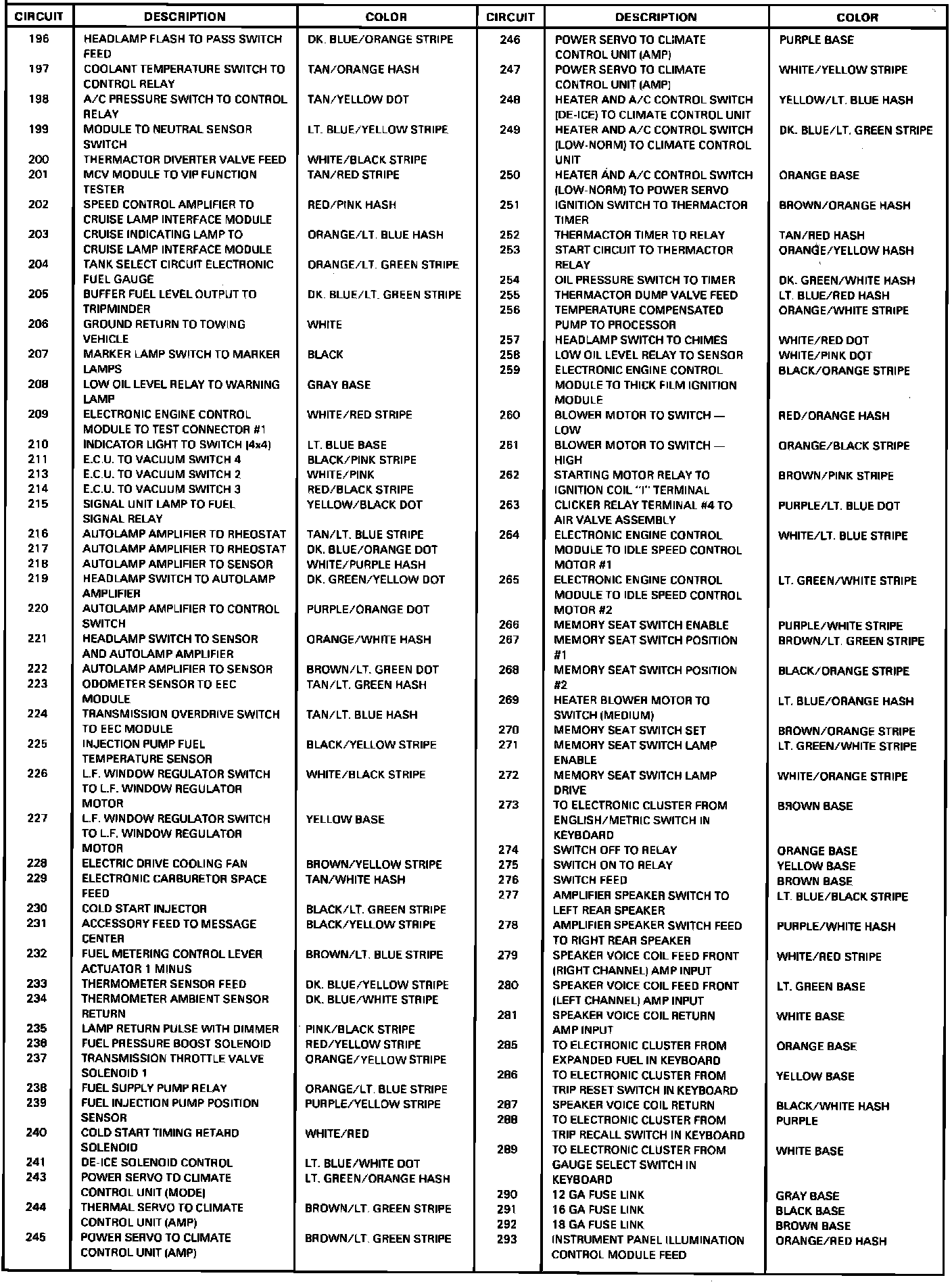

STANDARD CIRCUIT NUMBER CHART

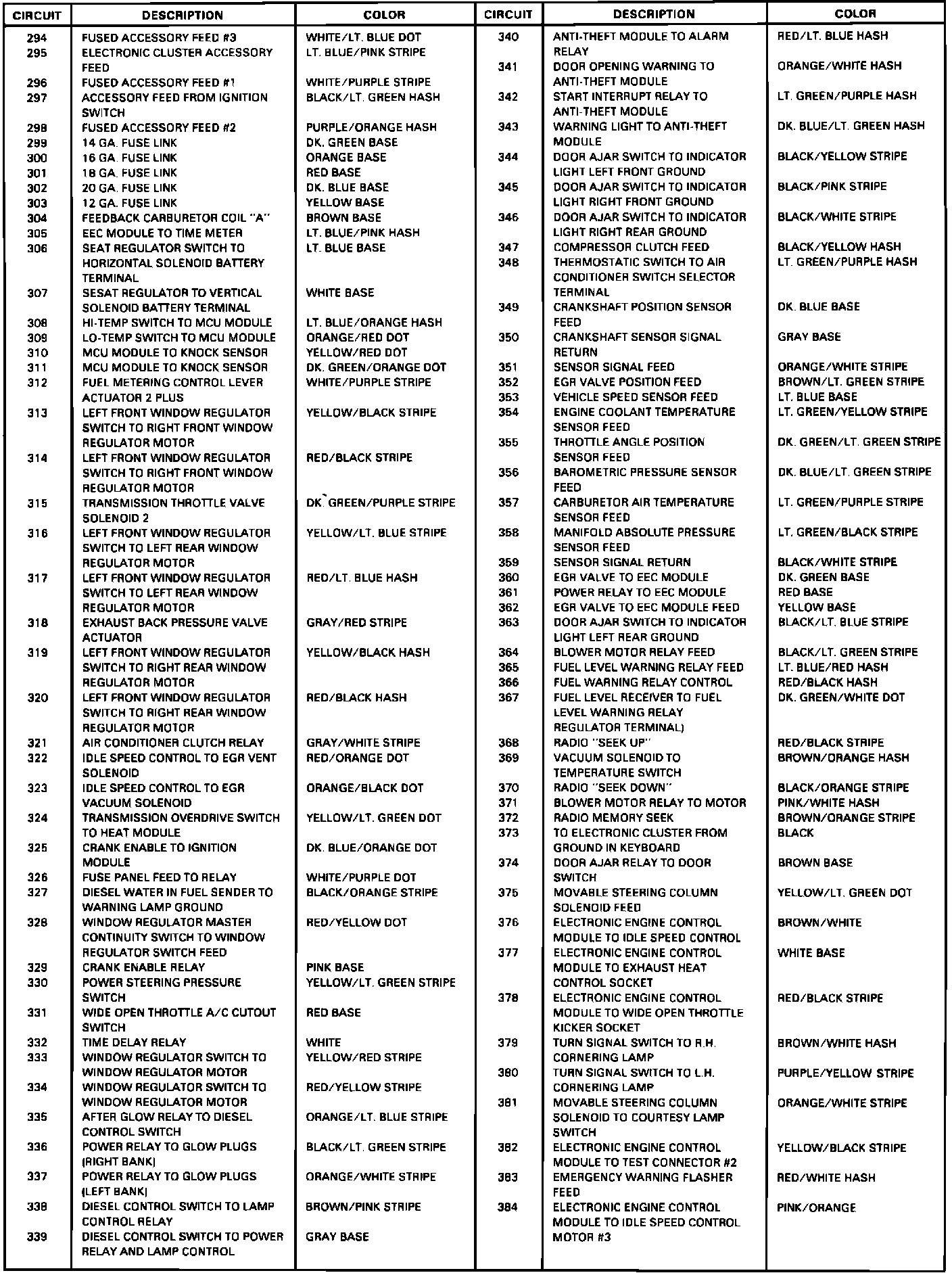

STANDARD CIRCUIT NUMBER CHART

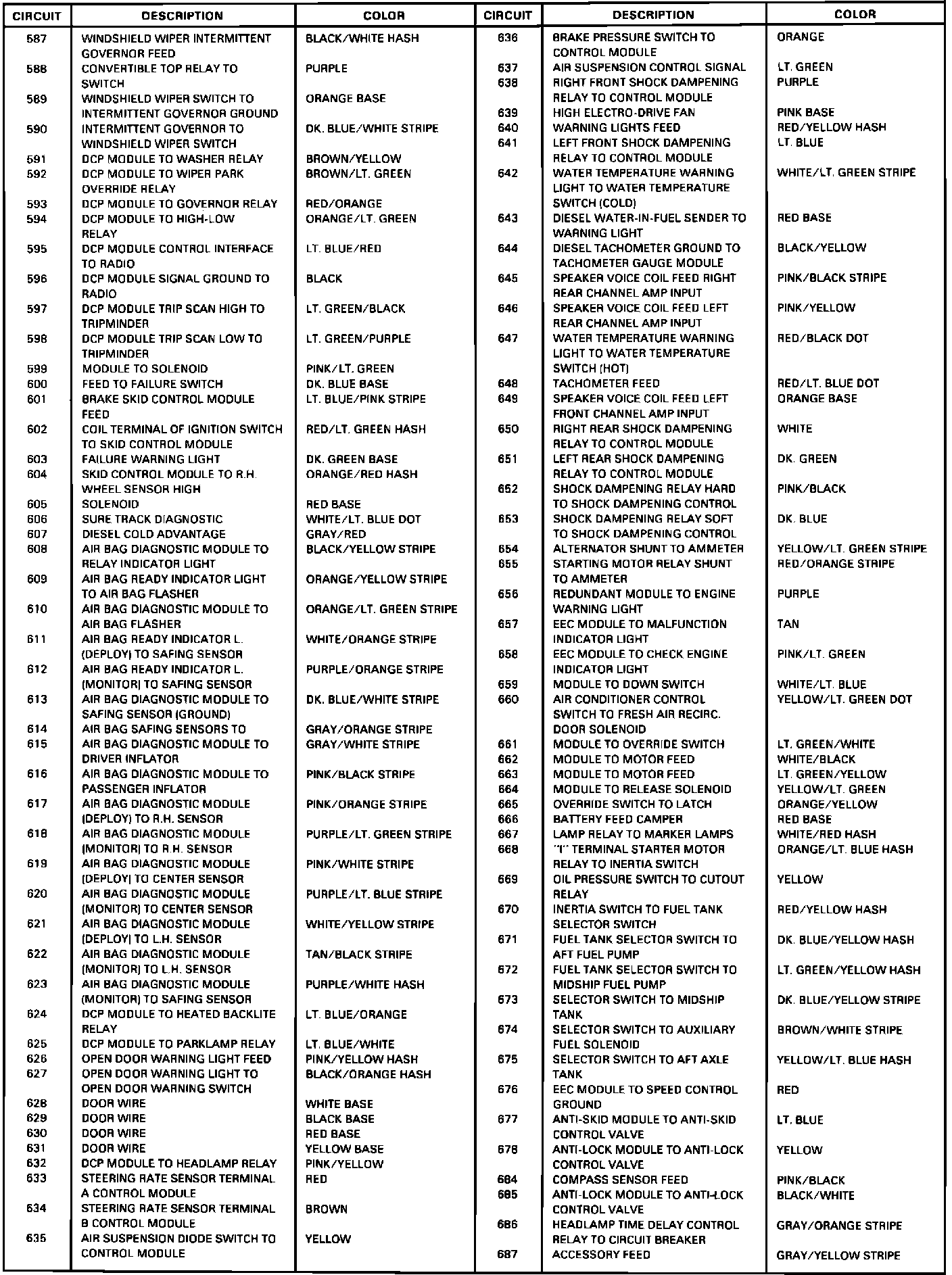

STANDARD CIRCUIT NUMBER CHART



STANDARD CIRCUIT NUMBER CHART
