Wheel Attachment - Shop Manual Update
Article No. 85-15-9WHEEL ATTACHMENT - 1985 SHOP MANUAL UPDATE
LIGHT TRUCK 1985 E350, F350
The following information, outlined in Section 50-2, but not shown or outlined in Section 50-11, should be added to the 1985 Light Truck Shop Manual-Section 50-11 as indicated below:
Figure 3 - LIGHT TRUCK F/E/BRONCO:
Figure 4 - REAR WHEEL LUG NUT USAGE:
1. On Page 50-11-7: Add Figure 3 of the attached sketches to Figure l0 of Page 5O-11-7 - Lug Nut Tightening Sequence. This figure shows the lug nut tightening sequence for the 5-lug and 8-lug wheels used on all light truck models and indicates the recommended lug nut tightening procedure. Figure 4 of the attached sketches shows the two wheel lug nut designs released for 1985 Light Truck vehicles.
Figure 4 - REAR WHEEL LUG NUT USAGE:

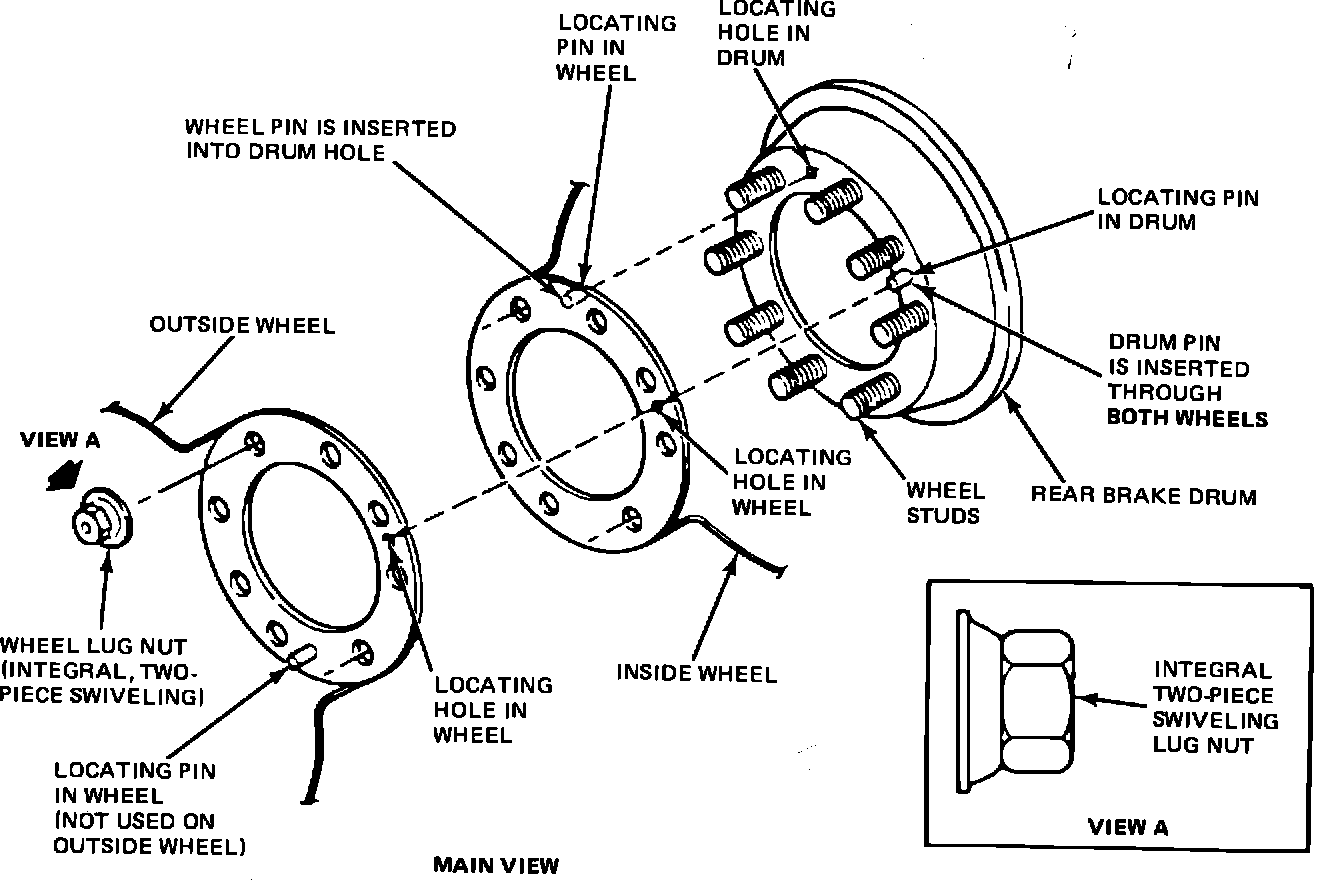

Figure 5 - REAR WHEEL INSTALLATION - F-350 / E-350 EQUIPPED WITH DUAL REAR WHEELS:
2. On Page 50-11-7: The note concerning E350 and F350 vehicles equipped with dual rear wheels should be deleted and the following note and Figures 4 and 5 of the attached sketches be added:

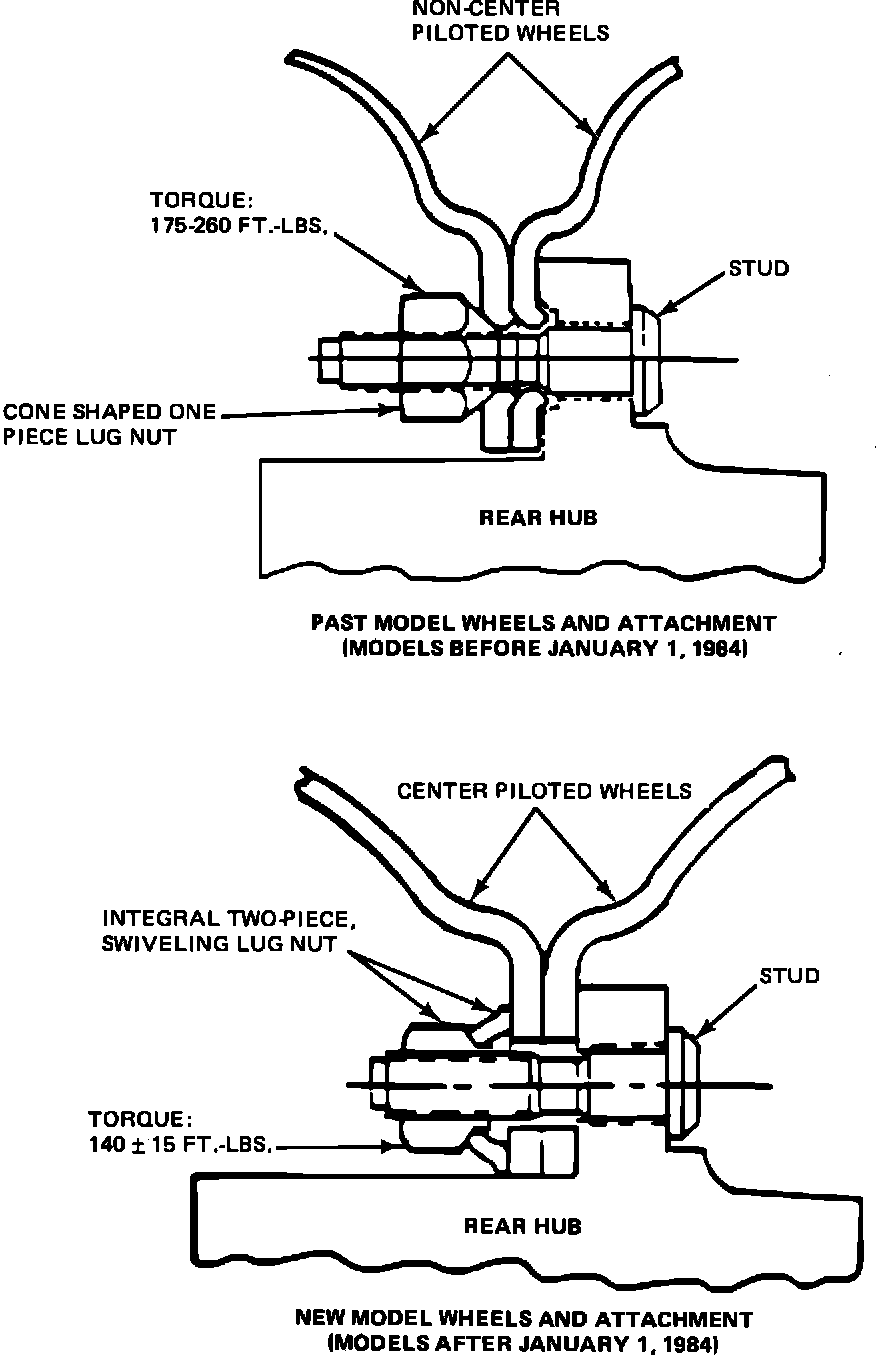

E350 and F350 vehicles with dual rear wheels are equipped with wheels (front/rear) which are center piloted to the hub and are attached with integral two-piece, swiveling lug nuts. The lug nut torque specification is 140 ft.lbs. +/- 15 ft.lbs. (right hand threads are used at all four wheel locations). See Figure 5 of the attached sketches for description of the wheel attachments.
Figure 4 - REAR WHEEL LUG NUT USAGE:
WARNING: Use only integral two-piece swiveling lug nuts on 1985 vehicles equipped with dual rear wheels. Do not attempt to use cone shaped onepiece lug nuts on these vehicles. If used on wrong wheels, cone shaped one-piece lug nuts can come loose in vehicle operation. Do not attempt to use wheels which have cone shaped lug nut seats on these vehicles. Intermixing of different types of wheels can lead to damage to the wheel mounting system. Use of cone shaped one-piece nuts or intermixing of wheels could allow wheels to come off while vehicle is in motion, possibly causing loss of control and a collision. See Figure 4 of the attached sketch for lug nut description."
3. On Page 50-11-8: Delete the wheel "Torque Limits" chart and add the "Wheel Torque Limits" chart as shown.
REFERENCE: For pre-delivery and wheel maintenance, refer to Pages 50-02-4, 5, 6, 7 and 51 in the 1985 Light Truck Shop Manual.
Figure 6 - MODEL E350-F350 DUAL REAR WHEEL STUD NUTS USAGE INFORMATION:
For a complete description of the new and prior model dual rear wheel mounting systems for model E350 and F350 vehicles equipped with dual rear wheels, refer to the attached Figure 6.
Torque Limits*
Description - Model Bolt Size (Ft. Lbs.) N-m
F-150, E-150, and Bronco-5-Lug Wheel 1/2-20 (85-115) 115-156
F-250 - E-350, E-250 - E-350, 8-Lug Wheel
(under 8,500 GVW) 1/2-20 (85-115) 115-156
F-250 - F-350, E-250 - E-350, 8-Lug Wheel
(over 8,500 GVW, Single Rear Wheel Vehicles) 9/16-18 (115-175) 156-237
F-350 - E-350, 8-Lug Wheel - Front or Rear
(Dual Rear Wheel Vehicles with Integral Two-Piece
Swiveling Lug Nuts) 9-16-18 (125-155) 169-210
*Torque specifications are for dirt and paint free dry bolt and nut threads.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
