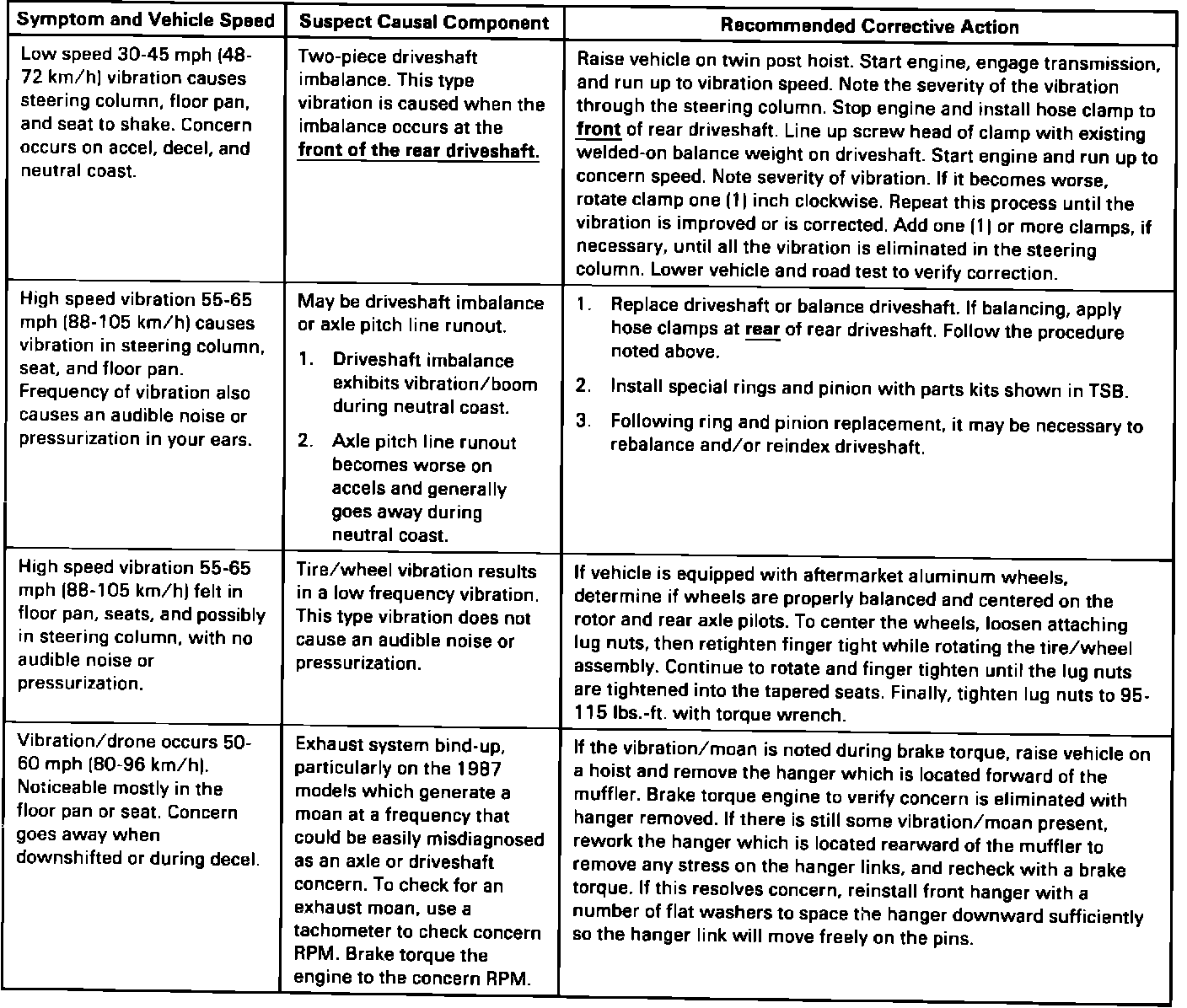

Econoline Nvh Diagnosis Chart

NOTE: If the complaint unit is a conversion van, be sure to raise vehicle on a hoist and inspect the second seat attachments to verify that the bolts are not too long and grounded to the frame cross member or other components. Also, check running board hangers to make certain that the hangers are not attached to the frame.
