TFI Module/PIP Sensor - New Diagnostic Procedure
>>
Part 2 TFI-IV Ignition System With TFI Ignition Tester
>>
Stator - TFI
Stator - TFI
TFI-IV
Part 2

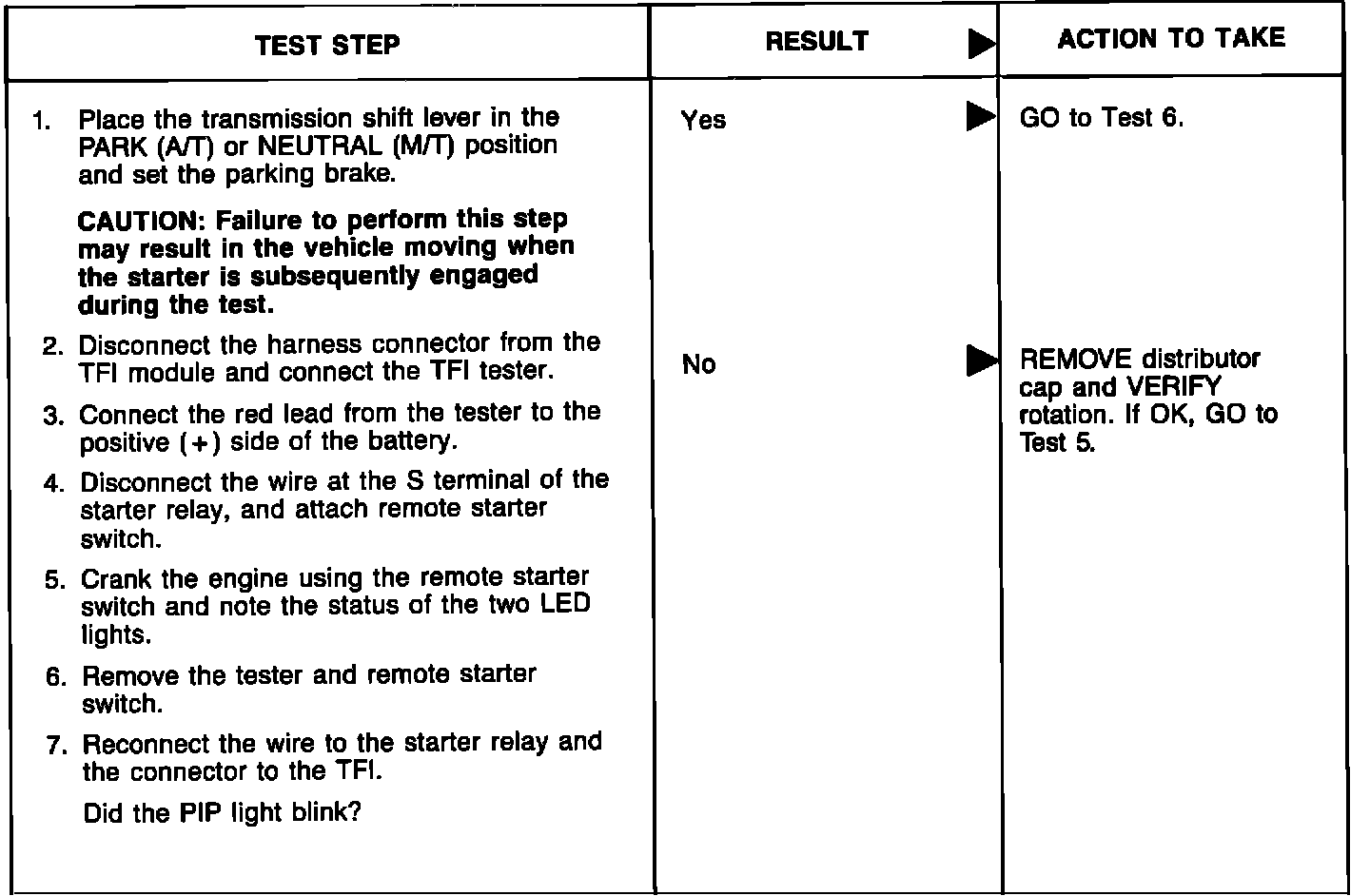

Test 4 & 5
Stator - TFI-IV
TFI-IV
Part 2
Test 5
