G203, G601, G955 & G956 Gasoline Engine

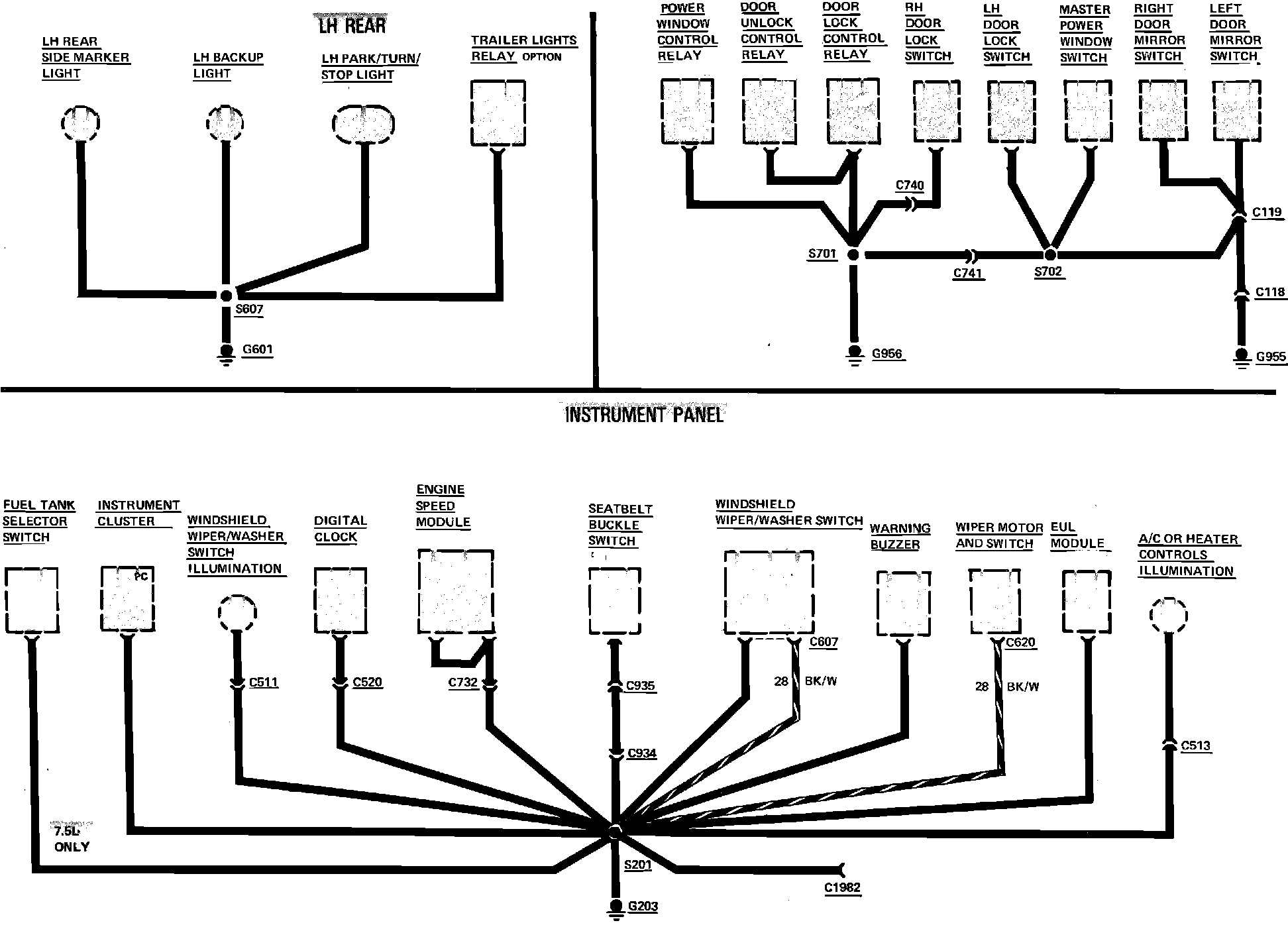

Fig. 28 Ground Distribution (G203, G601, G955 & G956). 1985 Gasoline Engine:
