E 250 Van V8-302 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Testing and Inspection
>>
Component Tests and General Diagnostics
>>
Secondary Circuit Tests
>>
Test 2 - Secondary Display
Test 2 - Secondary Display

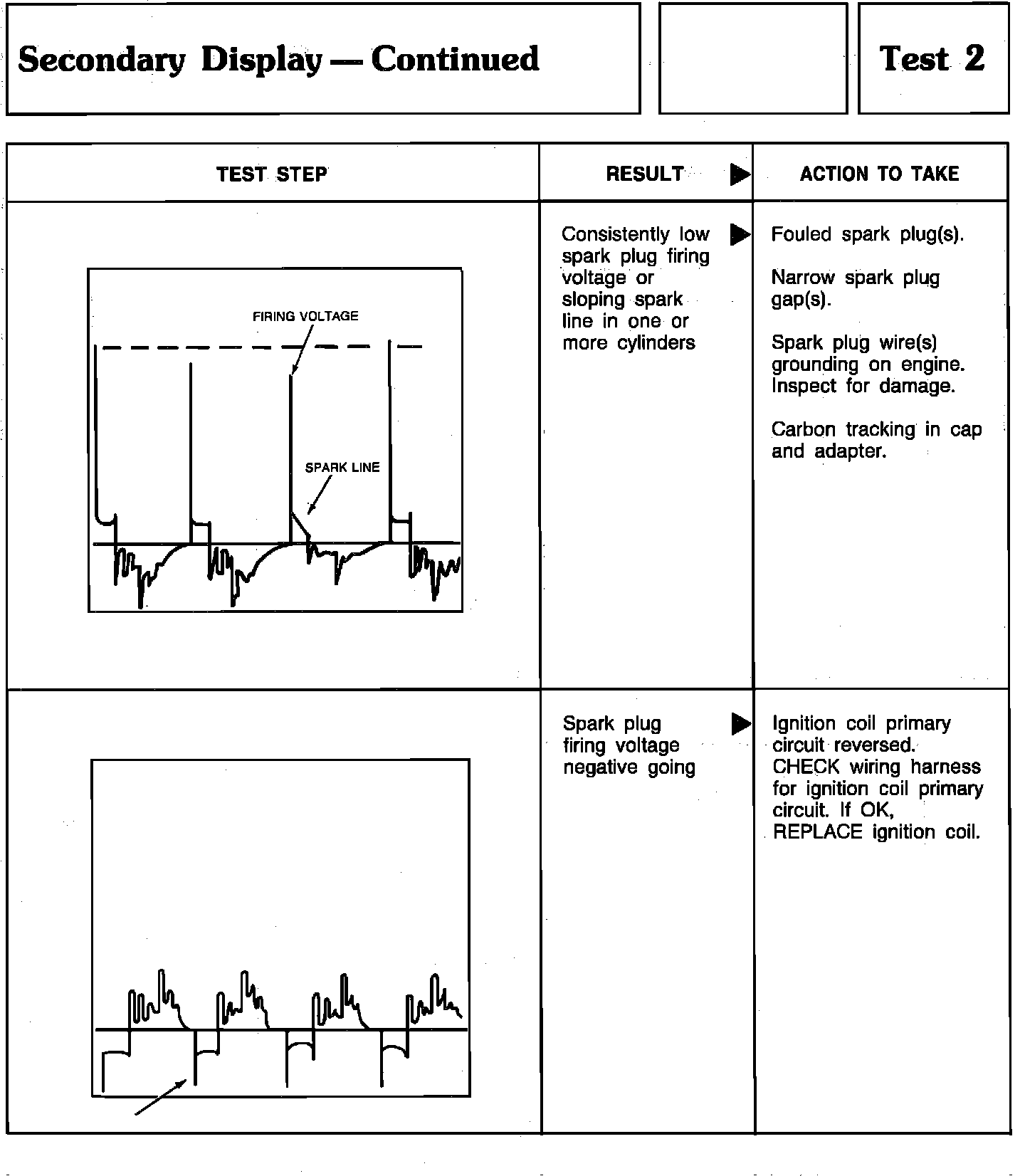

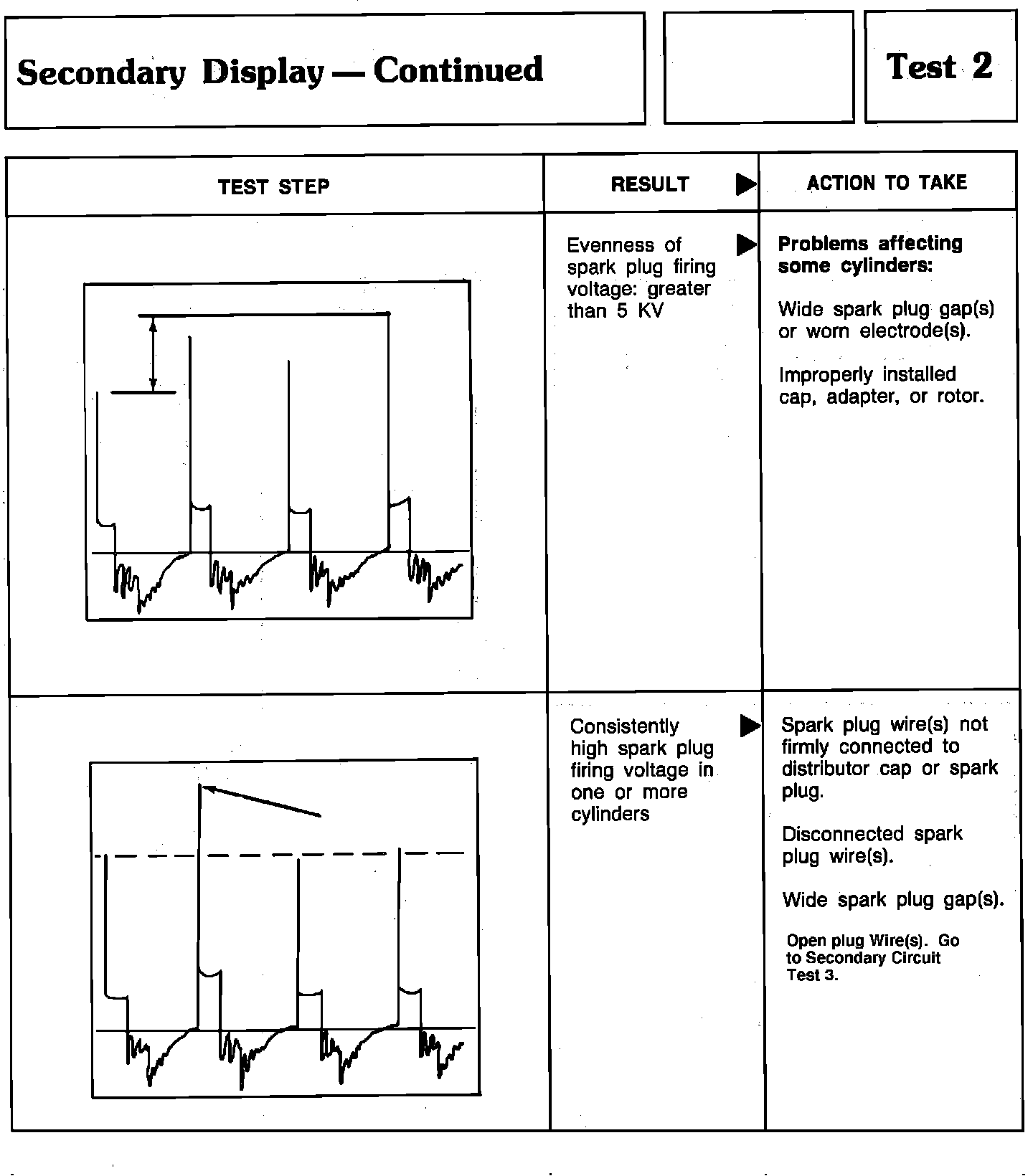

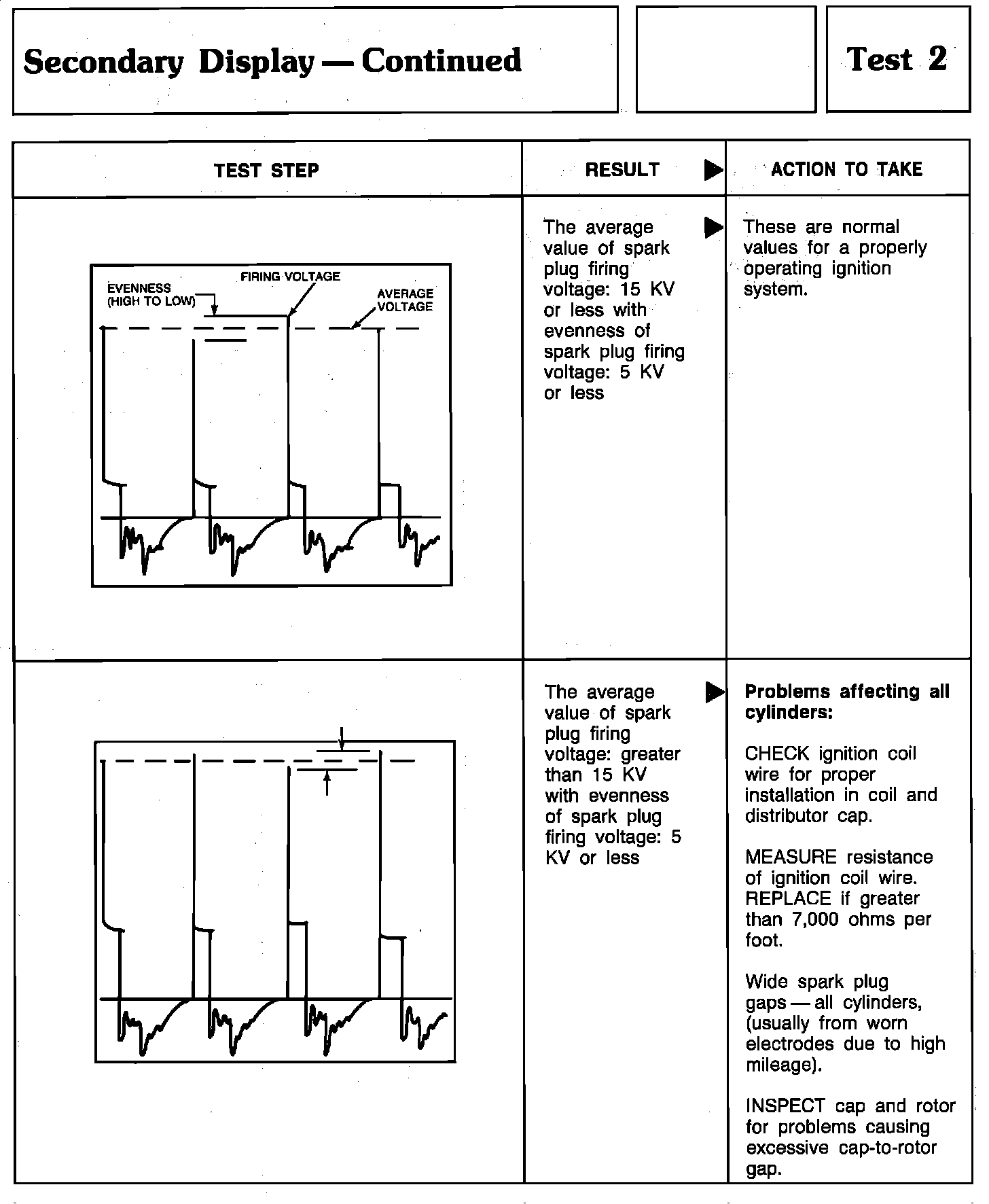

Secondary Display - 1 0f 4:
Secondary Display - 1 0f 3:
Secondary Display - 2 of 3:
Secondary Display - 3 of 3:
*** UPDATED BY TSB #85-9-33
