Home >> Ford >> 1985 >> E 250 Van V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Component Tests and General Diagnostics >> Primary Circuit Tests >> Test 7, Ignition Coil Primary Resistance

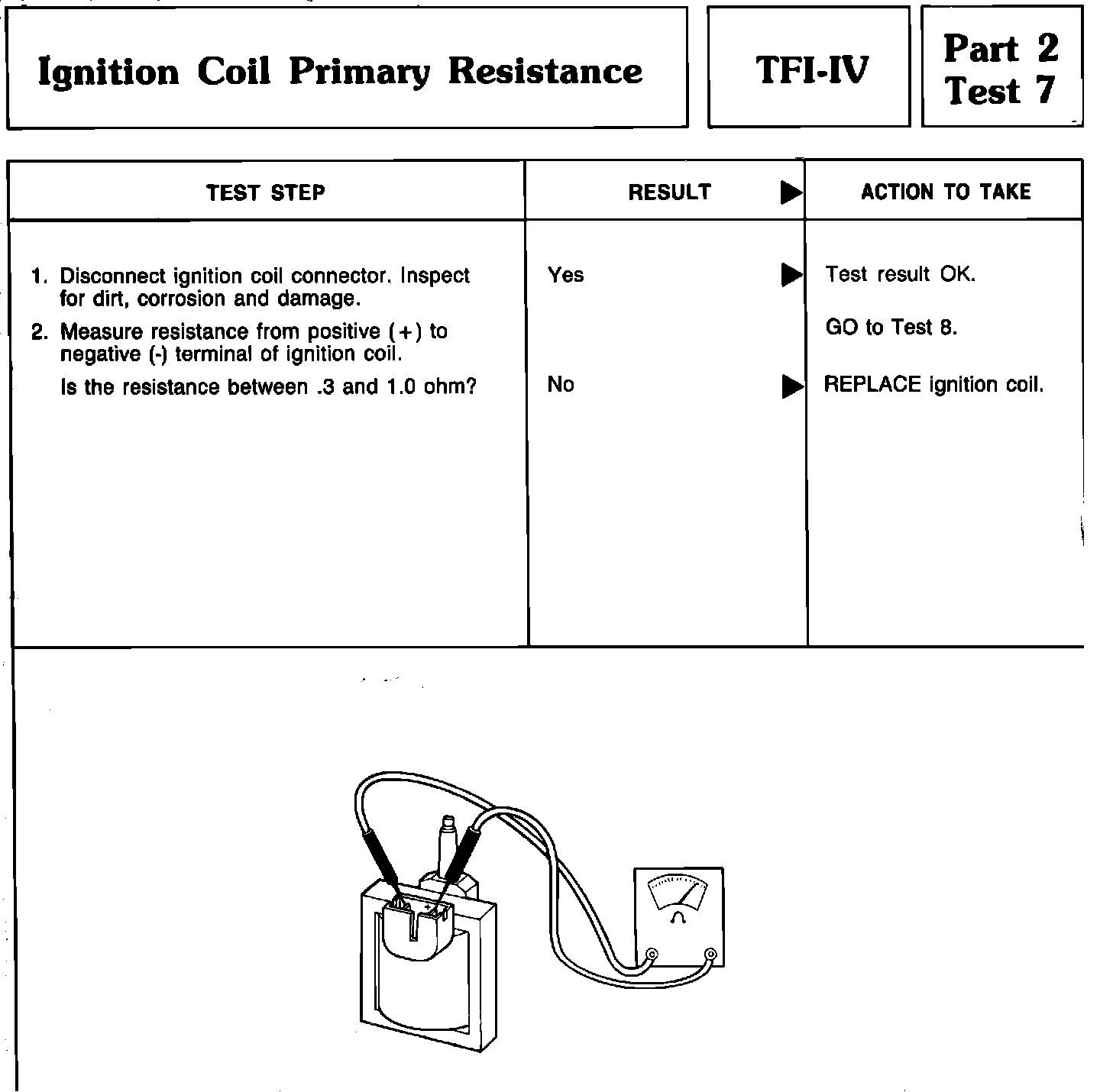

Test 7, Ignition Coil Primary Resistance






*** UPDATED BY TSB #87-21-10
