Dashpot: Adjustments

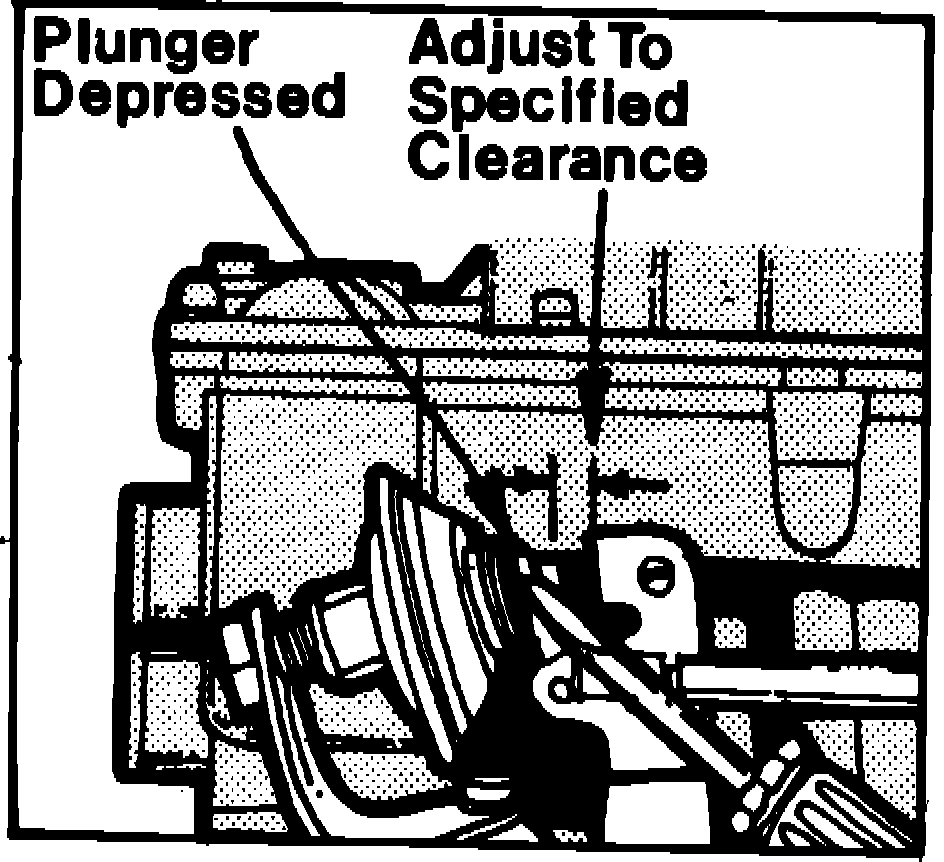

Fig. 11 Dashpot adjustment:

With air cleaner removed, and with engine idle speed and mixture properly adjusted, loosen anti-stall dashpot lock nut, Fig. 11. Hold throttle in closed position and depress plunger with a screwdriver. Check clearance between throttle lever and plunger tip with a feeler gauge of the specified clearance dimension. Then turn dashpot in its bracket in a direction to provide the specified clearance.
