EEC-IV System Component Location
>>
EFI Engine
EFI Engine

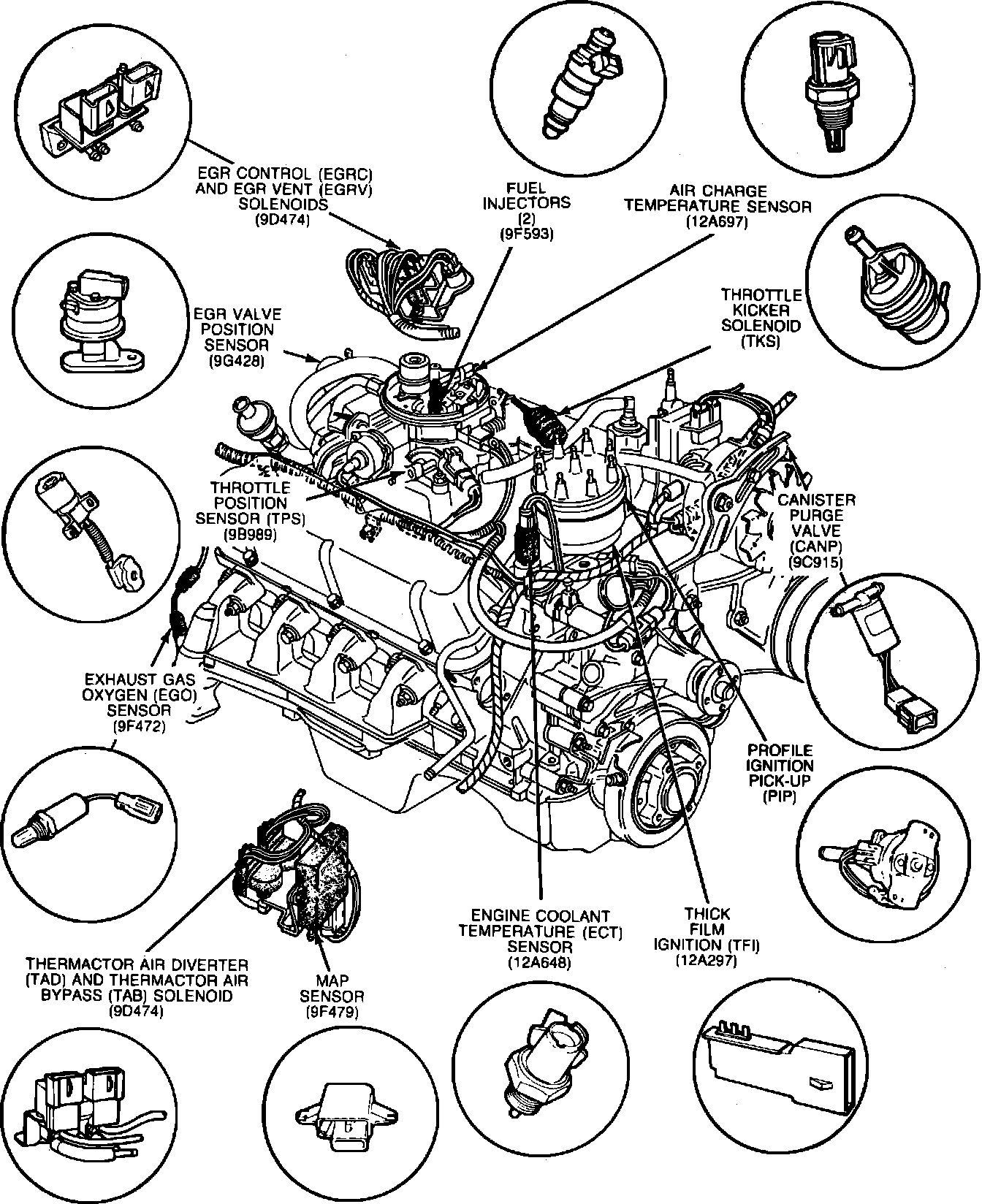

Fig. 10 EEC-IV system components. V8-302 EFI:
