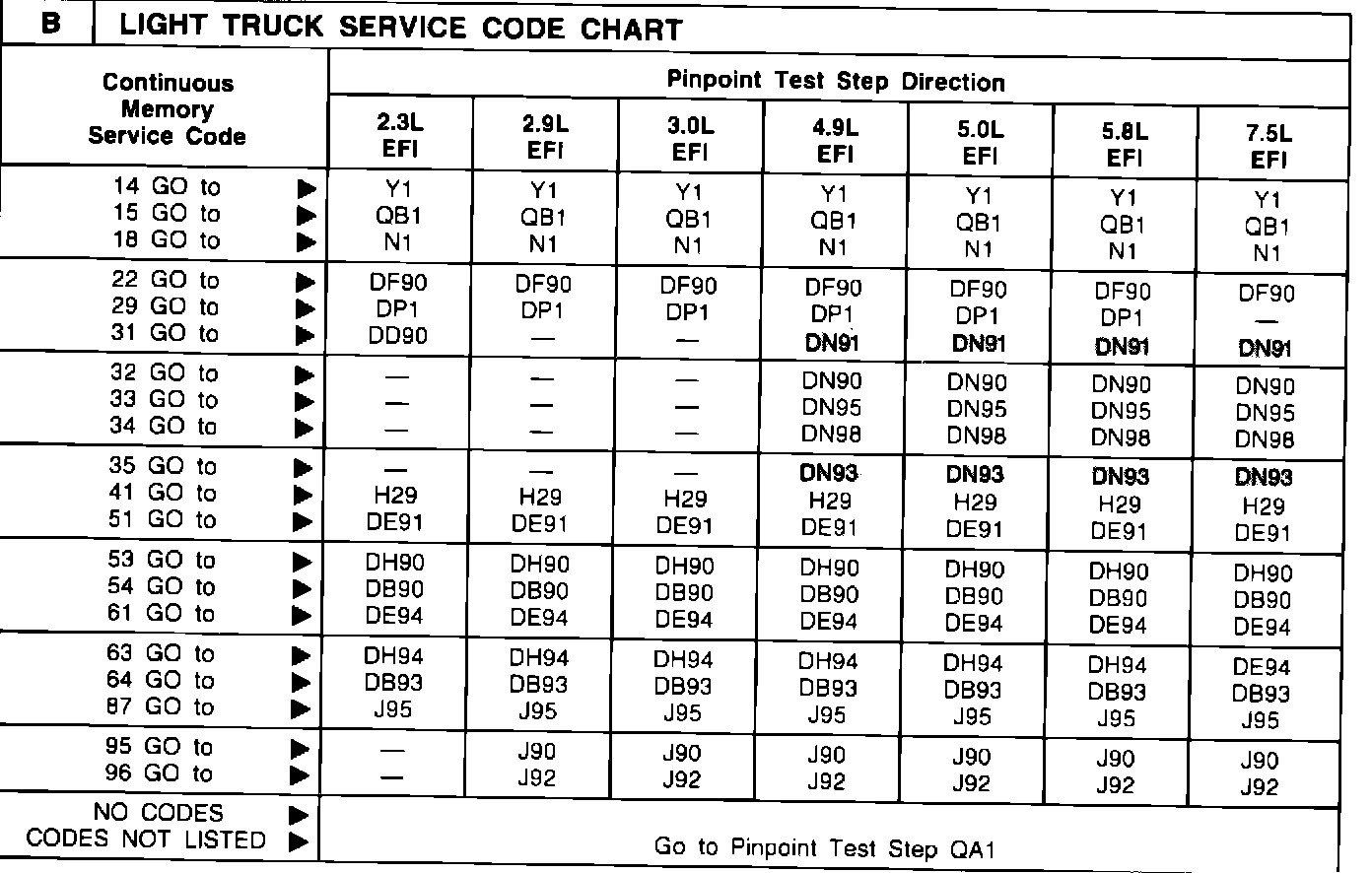

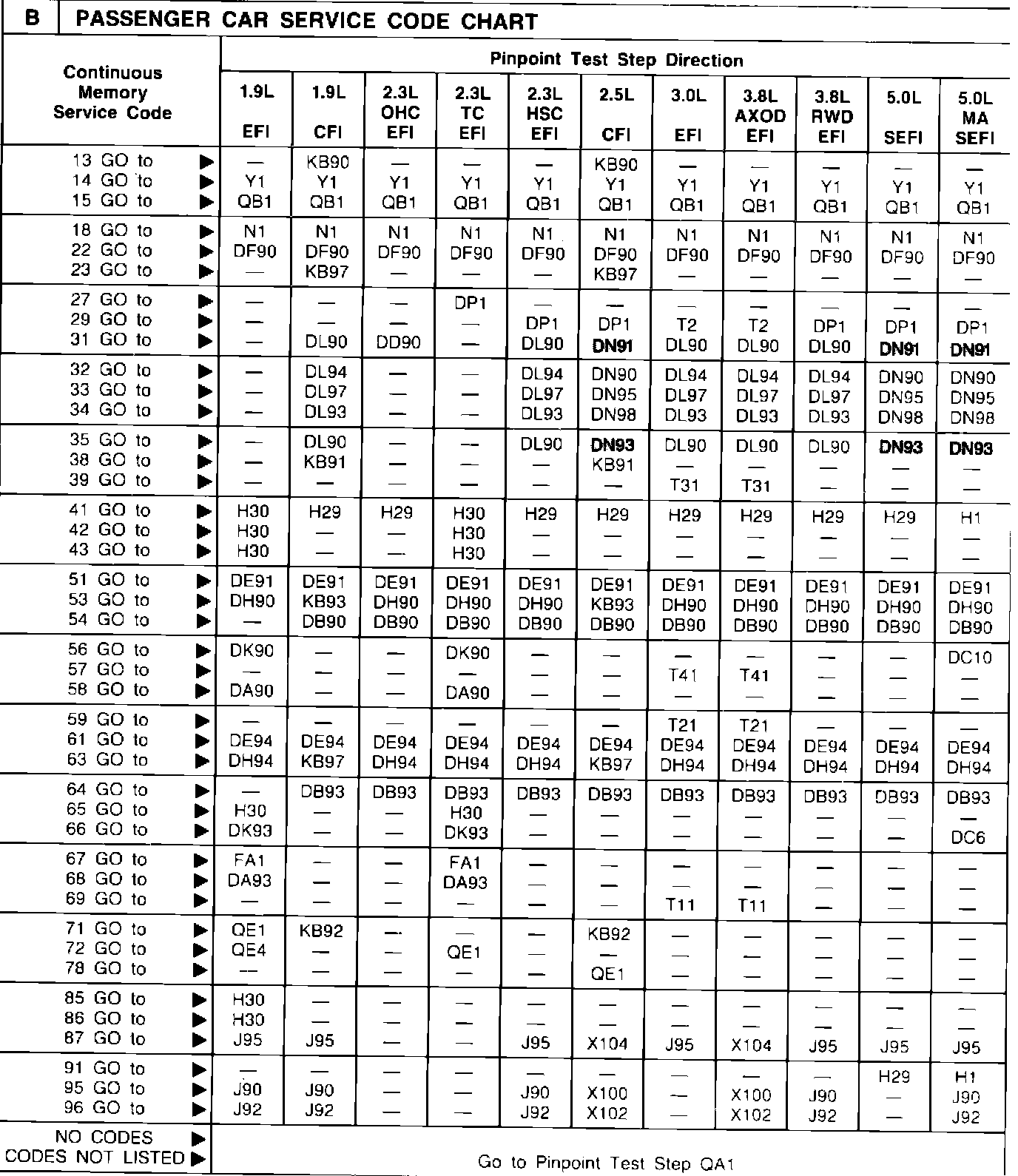

Quick Test:Continuous Self-Test - 6.0





1988

EEC-IV - Quick Test - All Engines 16-15


QUICK TEST: Continuous

Self-Test 6.0




1988
16-16 EEC-IV - Quick Test - All Engines


QUICK TEST: Continuous 6.0
Self-Test
