1985 Pinpoint Tests - Fa - Neutral Drive Switch -A/C Input





1985

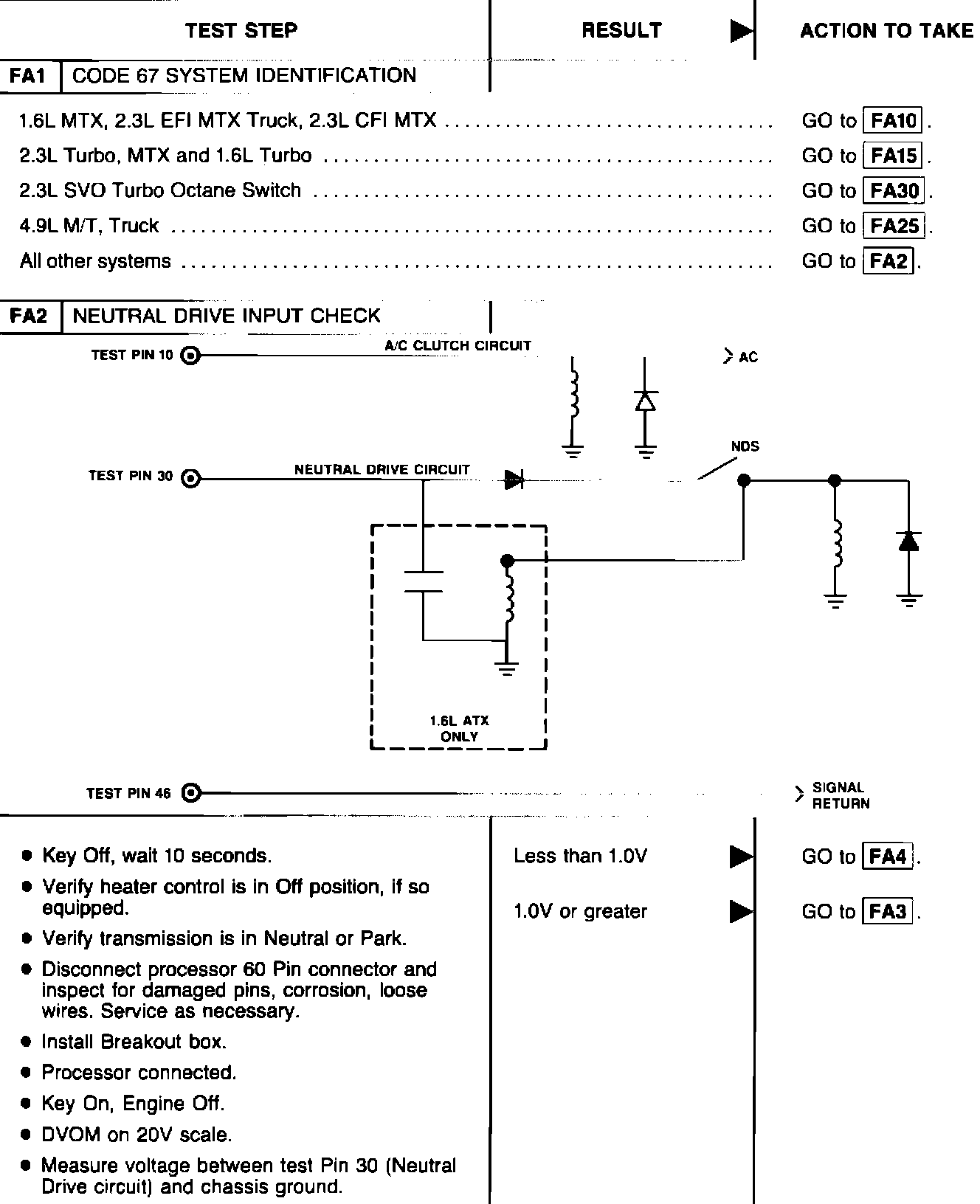

22-78 EEC IV - Pinpoint Tests - All Vehicles


Neutral Drive Switch
FA
A/C Input
PinpointTest
