Home
>>
Ford
>>
1985
>>
E 250 Van V8-302 5.0L
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Evaporative Emissions System
>>
Locations
>>
EFI
EFI

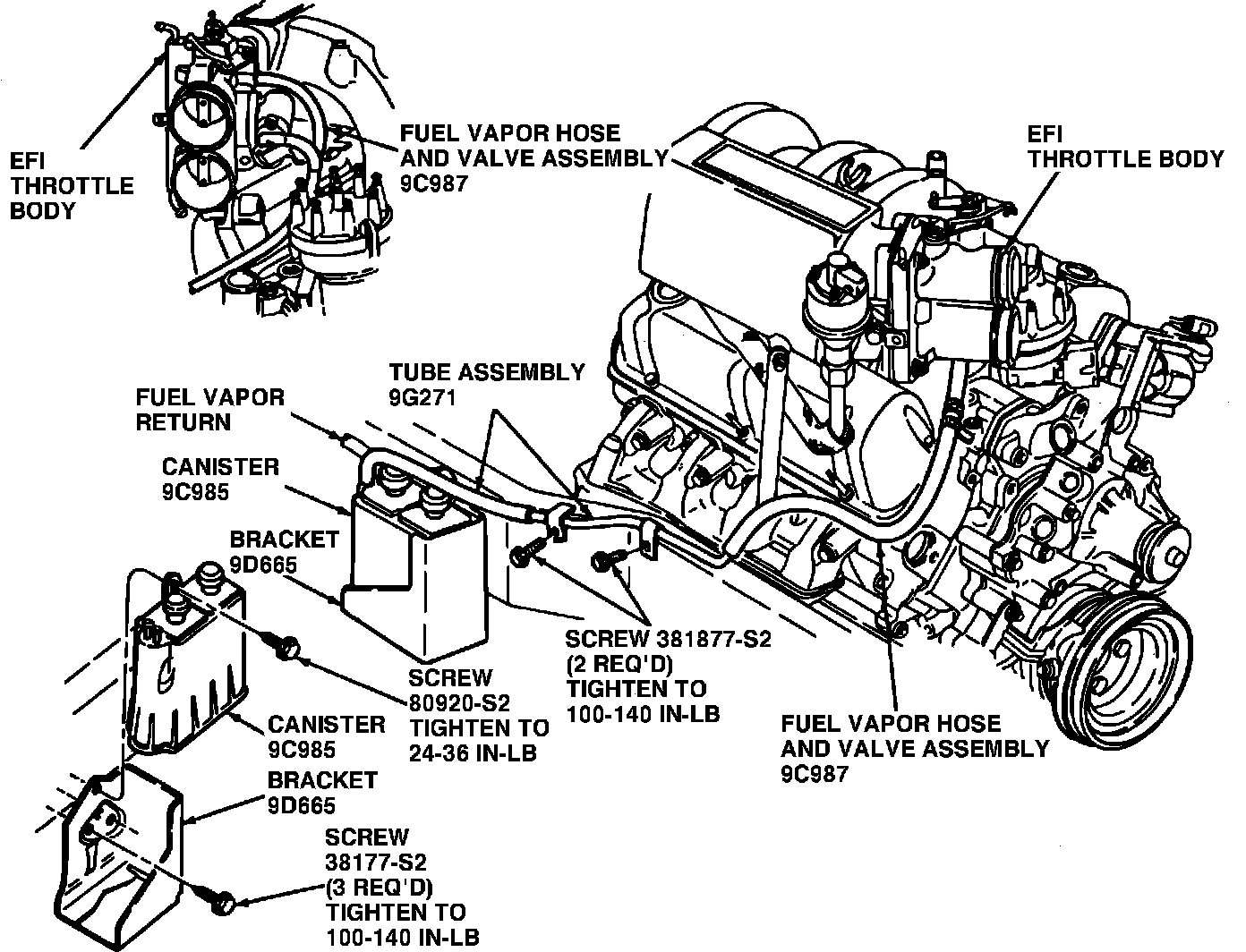

Fig. 21 Evaporative emission control system. V8-302 EFI E Series:
