Home >> Ford >> 1985 >> E 250 Van V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Diagrams >> Electrical Diagrams >> Block Diagrams

Block Diagrams

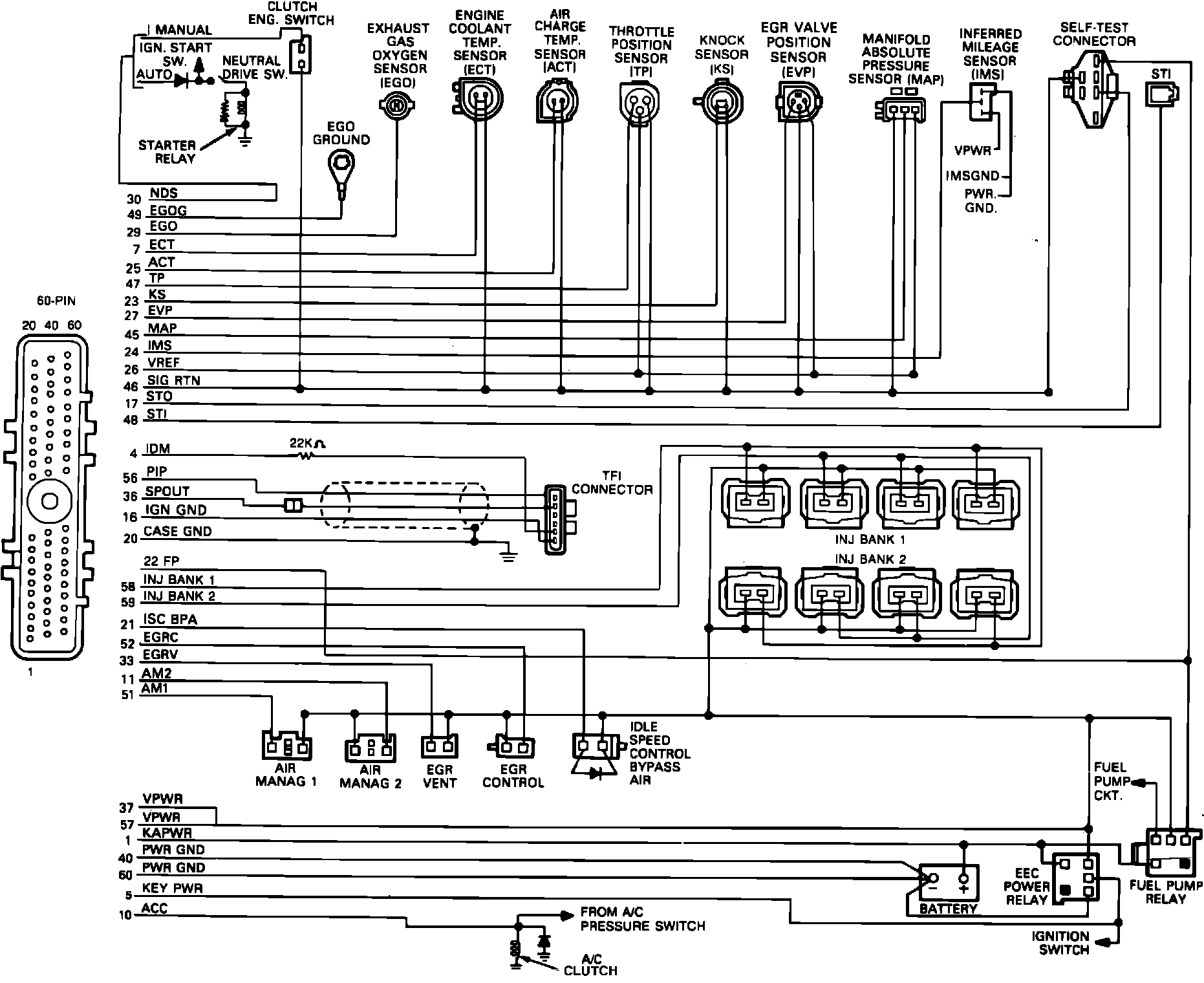

Fig. 130 EEC-IV wiring schematic. 1985 V8-302 EFI:

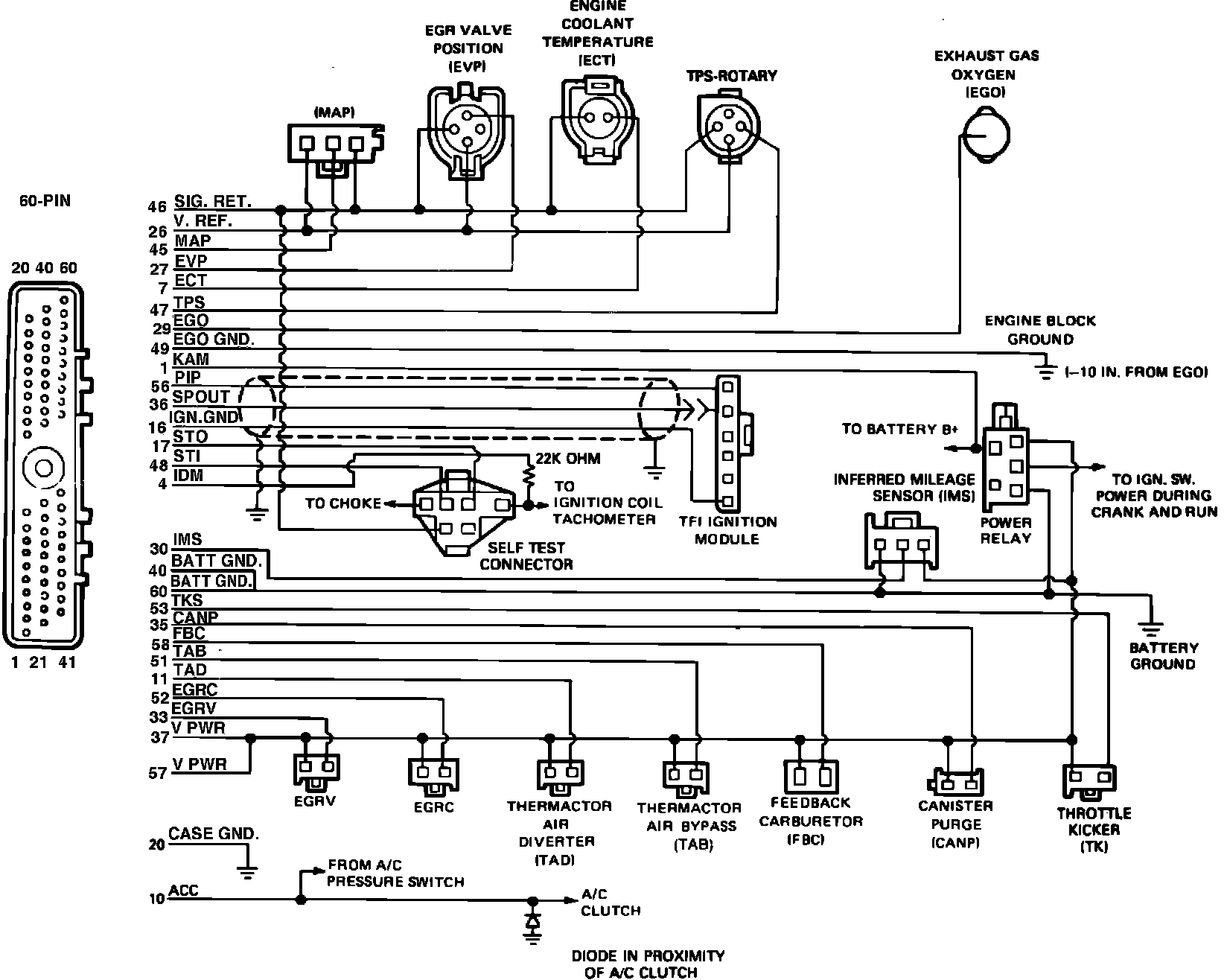

Fig. 132 EEC-IV wiring schematic. 1985 V8-302 & 351 FBC:
