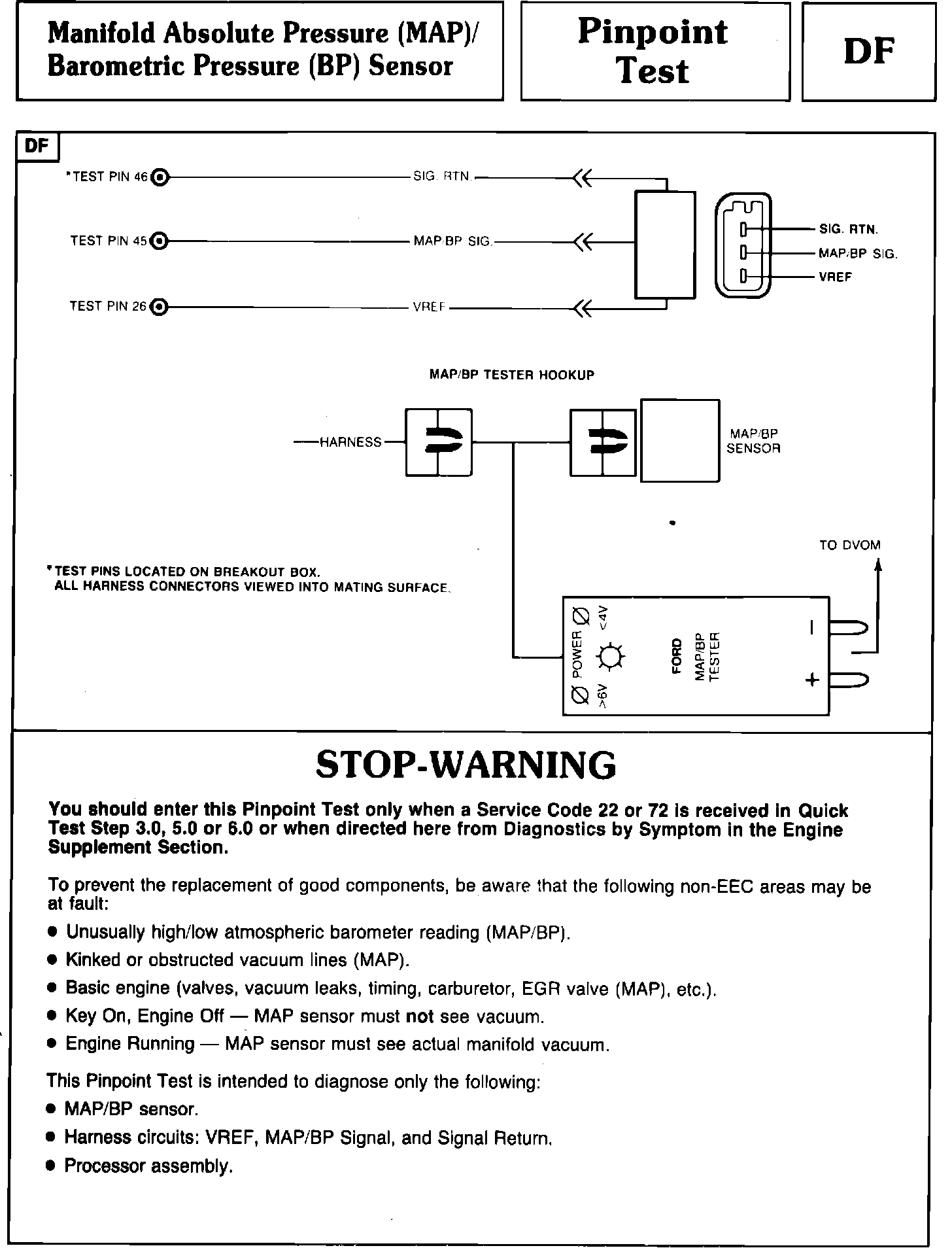

Home >> Ford >> 1985 >> E 250 Van V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DF - Manifold Absolute Pressure (MAP)/Barometric Pressure (BP) >> DF - Wiring Diagram
