LEMON Manuals: Even more car manuals for everyone
Home >> Ford >> 1985 >> E 250 Van V8-302 5.0L >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> DD - EGR Valve Position Sensor (EVP) Control/Vent (EGRC/EGRV) >> DD16 - DD18

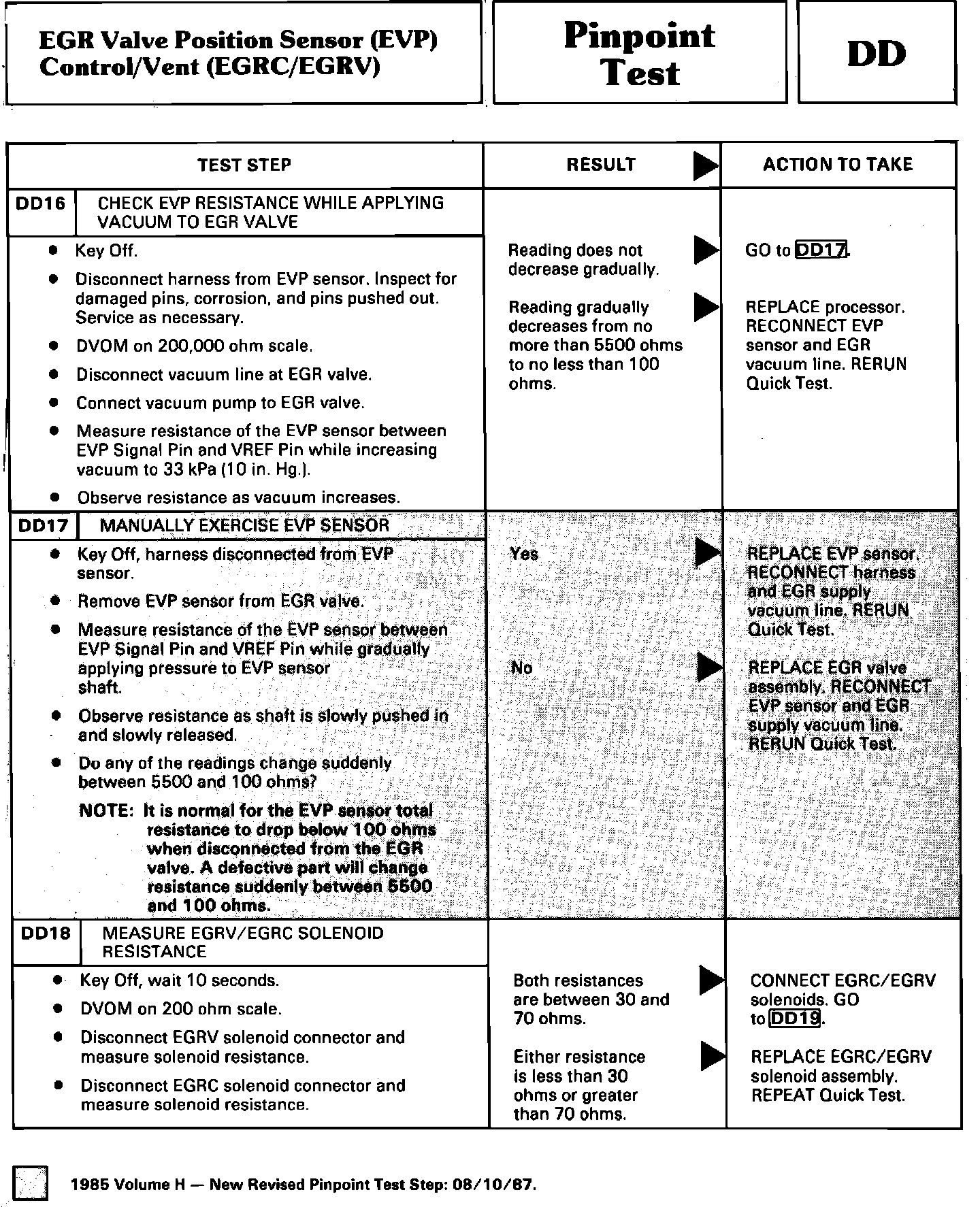

DD16 - DD18





*** UPDATED BY TSB #871817
