Engine Mount: Service and Repair

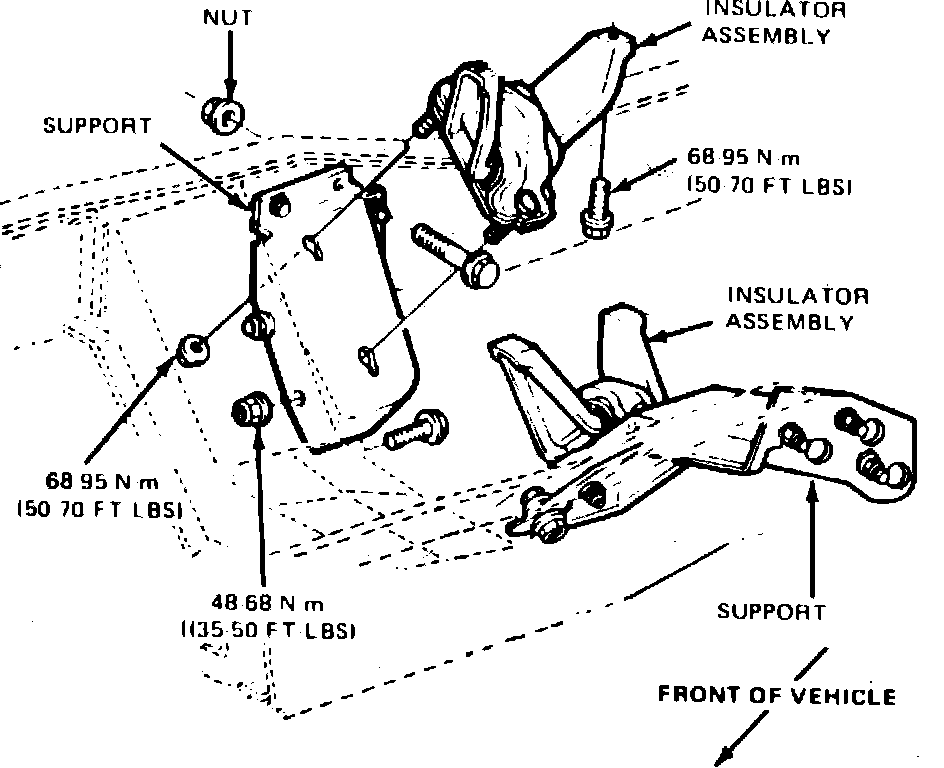

Fig. 6 Engine mounts. E-100---350 w/V8-302, 351W engine:

V8-302 & 351W
E-100-350
1. Remove fan shroud attaching bolts and the insulator-to-support nuts.
2. Raise engine assembly and remove starter motor.
3. Remove insulator attaching bolts, then the alternator splash shield and insulator, Fig. 6.
4. Reverse procedure to install.
