Premium Sound, With Rear Speakers

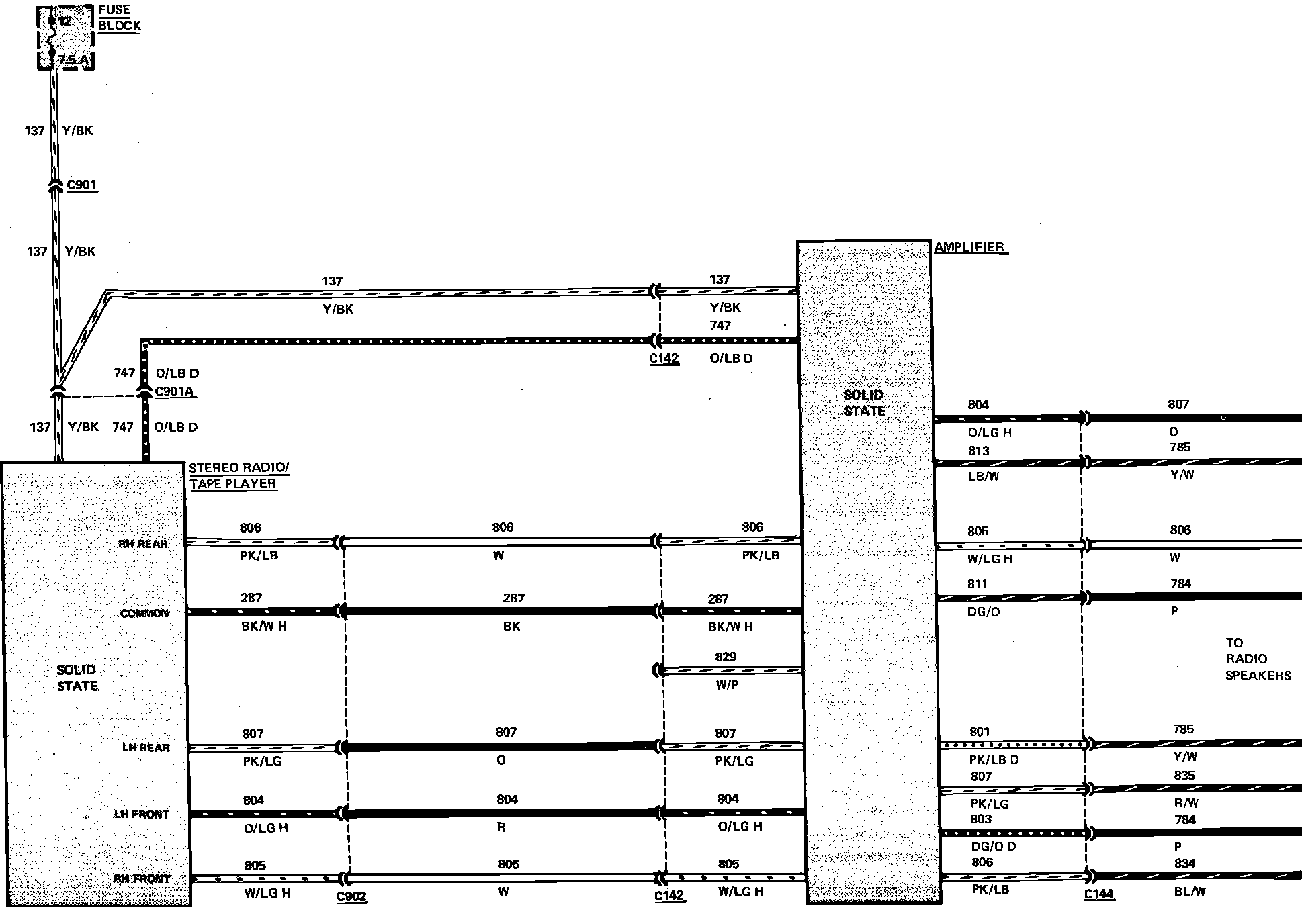

Fig. 41 Radio Wiring Circuit (With Premium Sound, Part 1 of 2). 1985 With Rear Speakers:

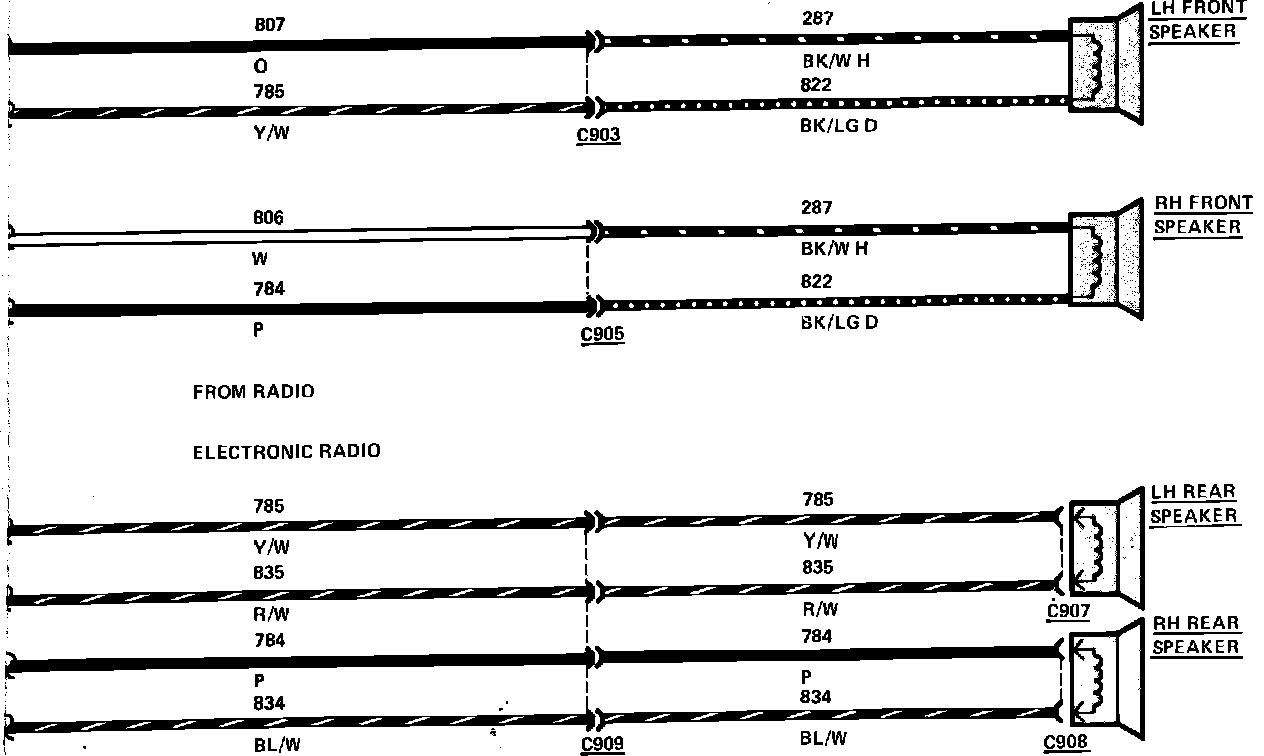

Fig. 41 Radio Wiring Circuit (With Premium Sound, Part 2 of 2). 1985 With Rear Speakers:
