Premium Sound, Less Rear Speakers

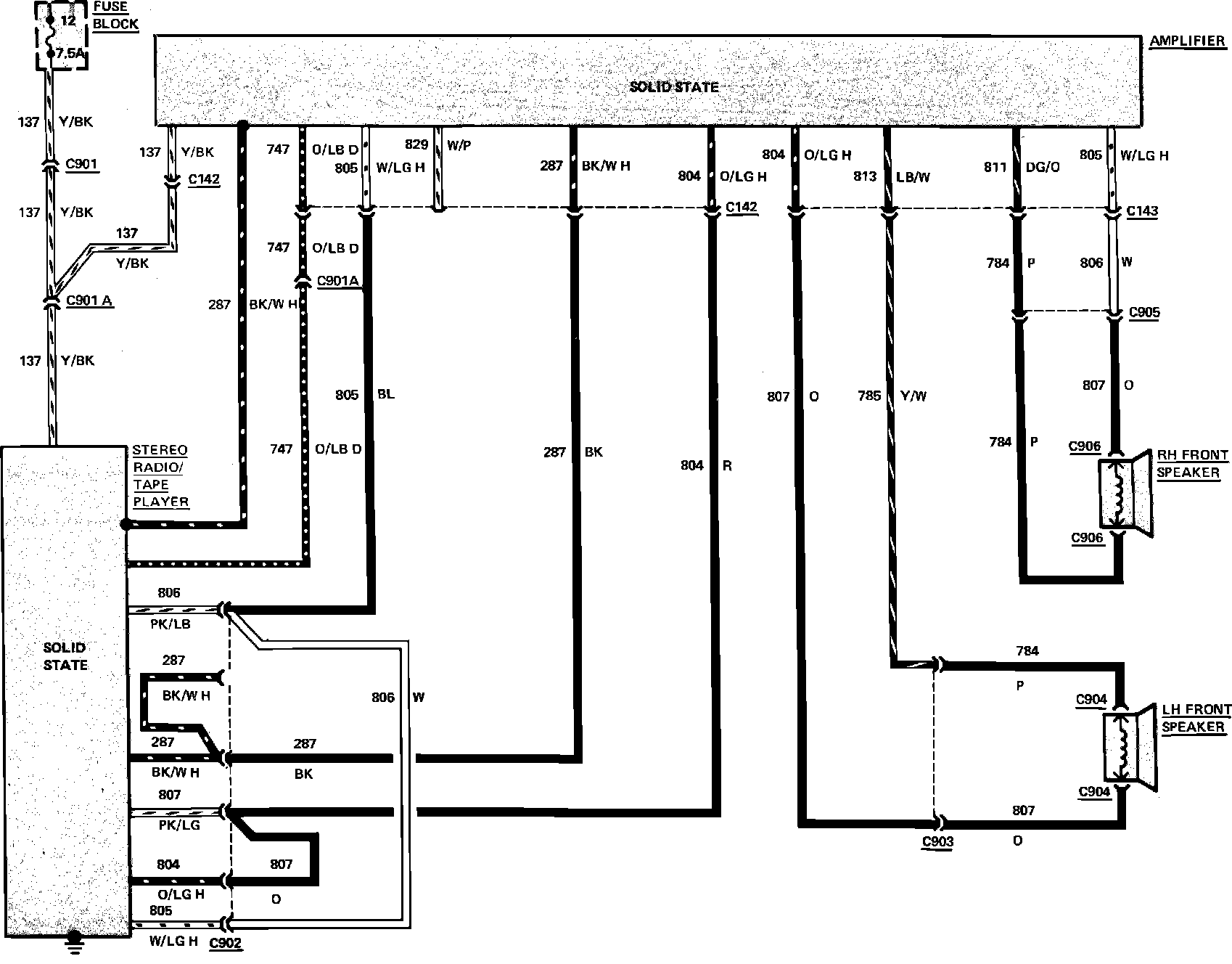

Fig. 40 Radio Wiring Circuit (With Premium Sound, Less Rear Speakers). 1985:
