Cruise Control
>>
Cruise Control Switch
Cruise Control Switch

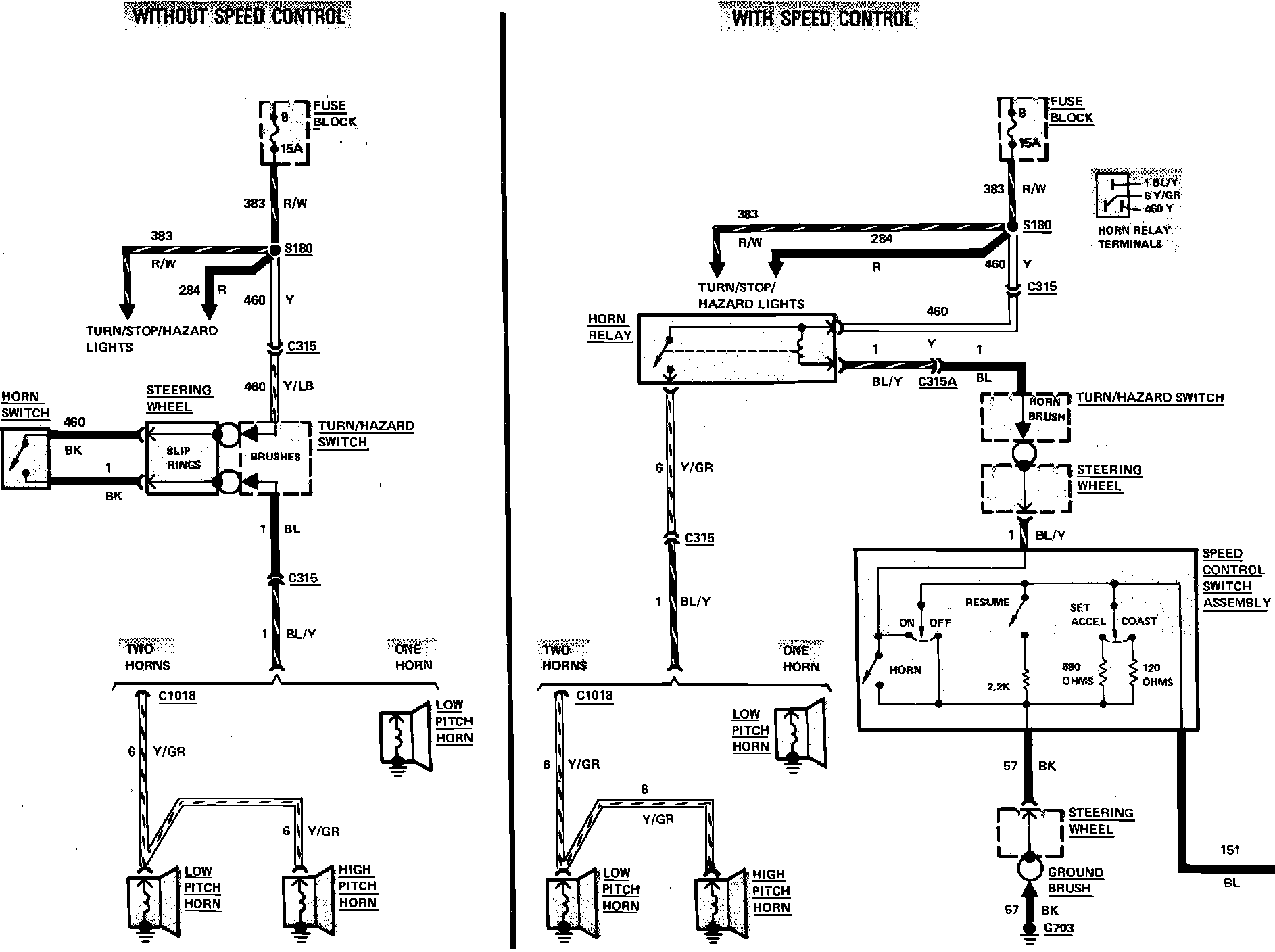

Horn & Speed Control Wiring Circuit (Part 1 of 2):

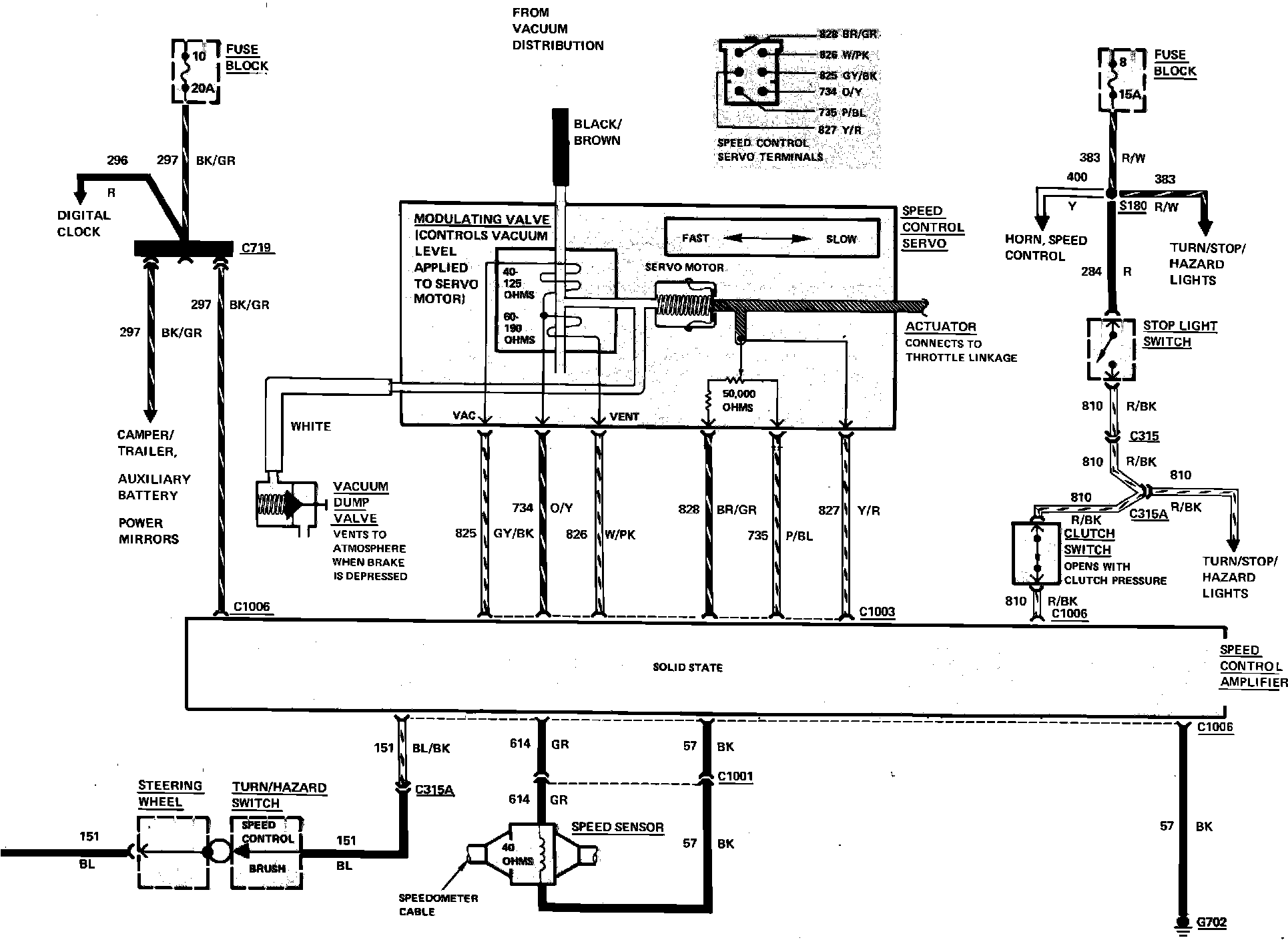

Horn & Speed Control Wiring Circuit (Part 2 of 2):
