Hydraulic Valve Lifter

  1. Service lifters only as complete assemblies. Disassemble lifters and thoroughly clean. DO NOT  interchange parts between lifters.
  2. Reassemble lifters and test with hydraulic lifter test fluid and lifter leak-down tester tool.
  3. Leak-down rate on hydraulic lifters is 2-8 seconds at 1/8" (3.2 mm) travel.

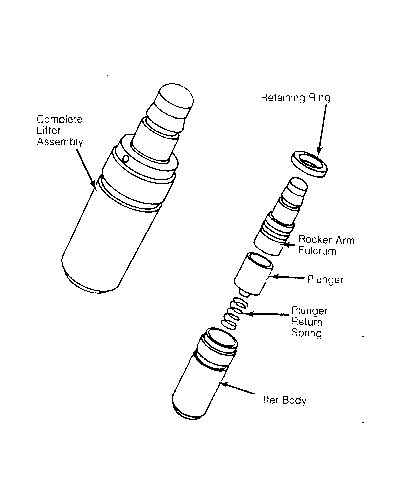

Fig 1: Exploded View of Hydraulic Lifter Assembly
G91039
