Rear Main Bearing Oil Seal: Installation

  1. Position seal on seal installer tool (T82L-6701-A or equivalent). See Fig 1 . Place tool and seal assembly on engine.
  2. Install 2 bolts through seal installer into crankshaft. Alternately tighten bolts until seal is completely installed. Remove seal installer tool.

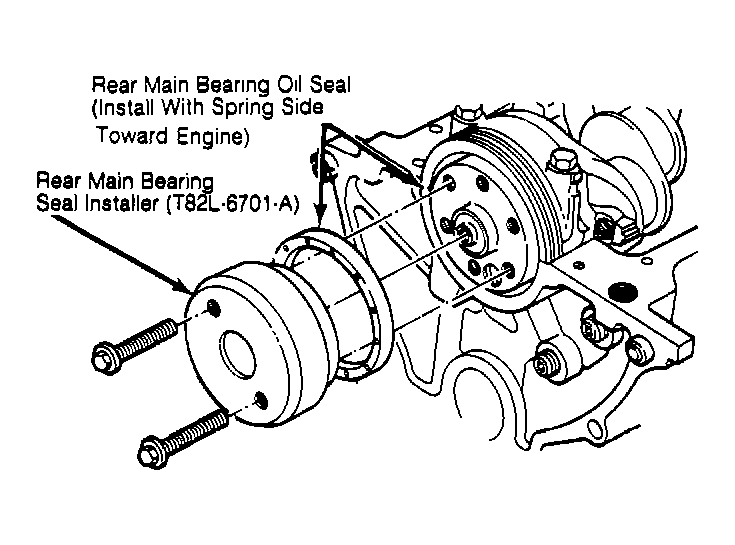

Fig 1: Rear Main Bearing Oil Seal Installation
G91621
