Engine Oiling System

System is pressure fed from a rotor-type oil pump. Oil flows through oil filter before entering main oil gallery. See Fig 1 .

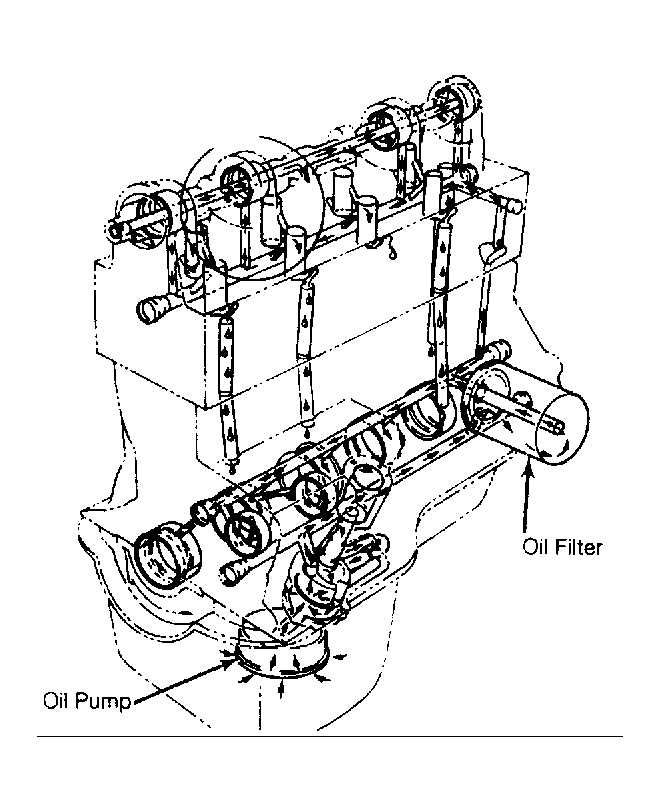

Fig 1: Engine Oiling System
G91336
