Bronco, Bronco II, E-Series Vans, F-Series Trucks & Ranger

To raise front of vehicle, use designated front jacking point. To raise rear of vehicle, use designated rear jacking point.

Fig 1: Front Jacking Point (Bronco, F150 & F350 4WD)

Courtesy of FORD MOTOR CO.

Fig 2: Front Jacking Point (E150)

Courtesy of FORD MOTOR CO.

Fig 3: Front Jacking Point (E & F250/350 2WD)

Courtesy of FORD MOTOR CO.

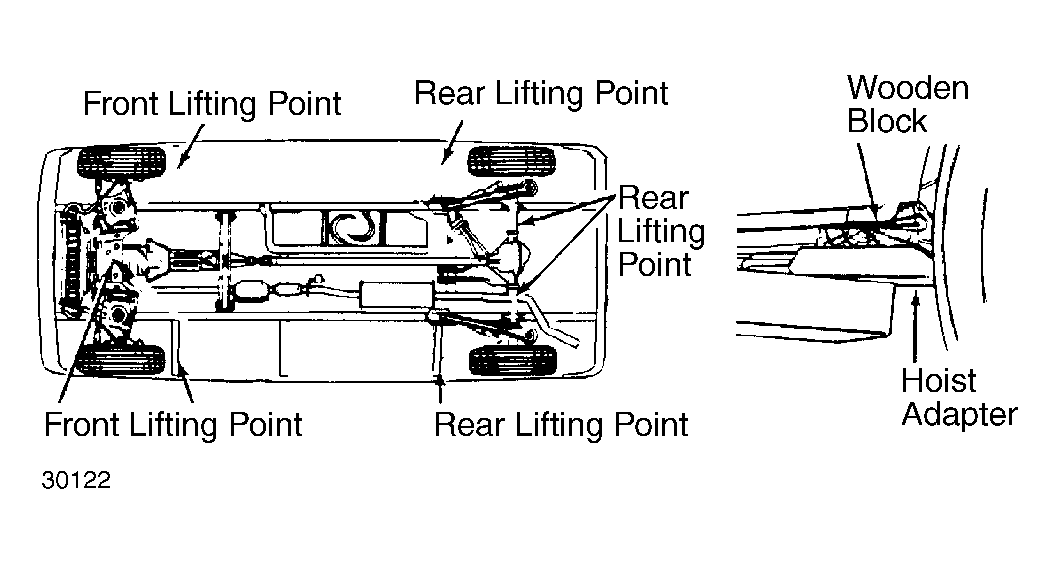

Fig 4: Hoisting & Jacking Contact Points (Aerostar) Wooden blocks must be used to maintain necessary underbody clearance. Courtesy of Ford Motor Co.

Fig 5: Rear Jacking Point (Bronco, E & F150/350 2WD & 4WD)

Courtesy of FORD MOTOR CO.

Fig 6: Front Jacking Point (Ranger 2WD)

Courtesy of FORD MOTOR CO.

Fig 7: Front Jacking Point (Bronco II & Ranger 4WD)

Courtesy of FORD MOTOR CO.

Fig 8: Rear Jacking Point (Bronco & Ranger)

Courtesy of FORD MOTOR CO.
