Compressor Diagnostic Flow Charts (Escort & Lynx)

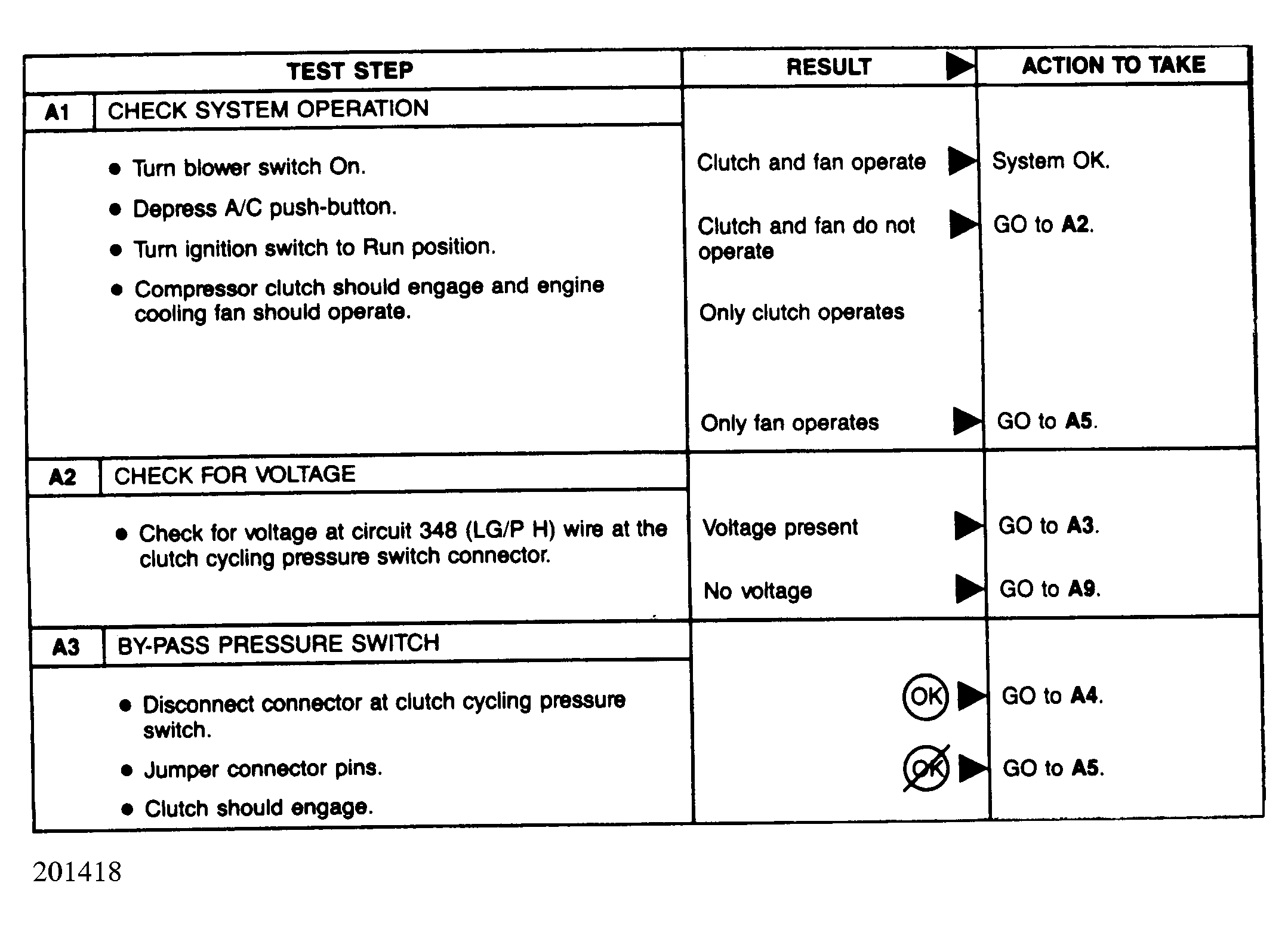

Fig 1: Compressor Clutch Diagnostic Charts (A1-A3)
G201418

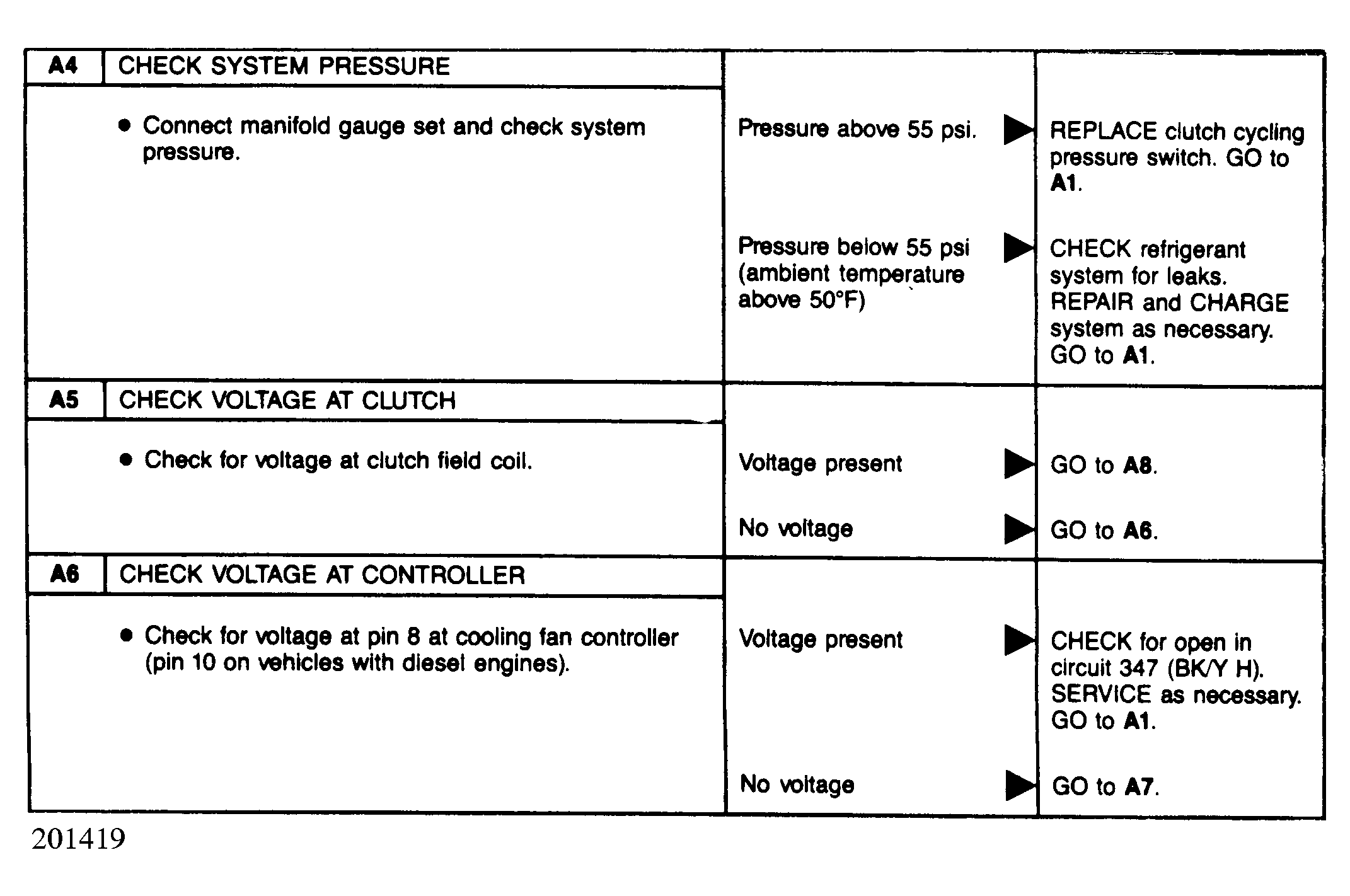

Fig 2: Compressor Clutch Diagnostic Charts (A4-A6)
G201419

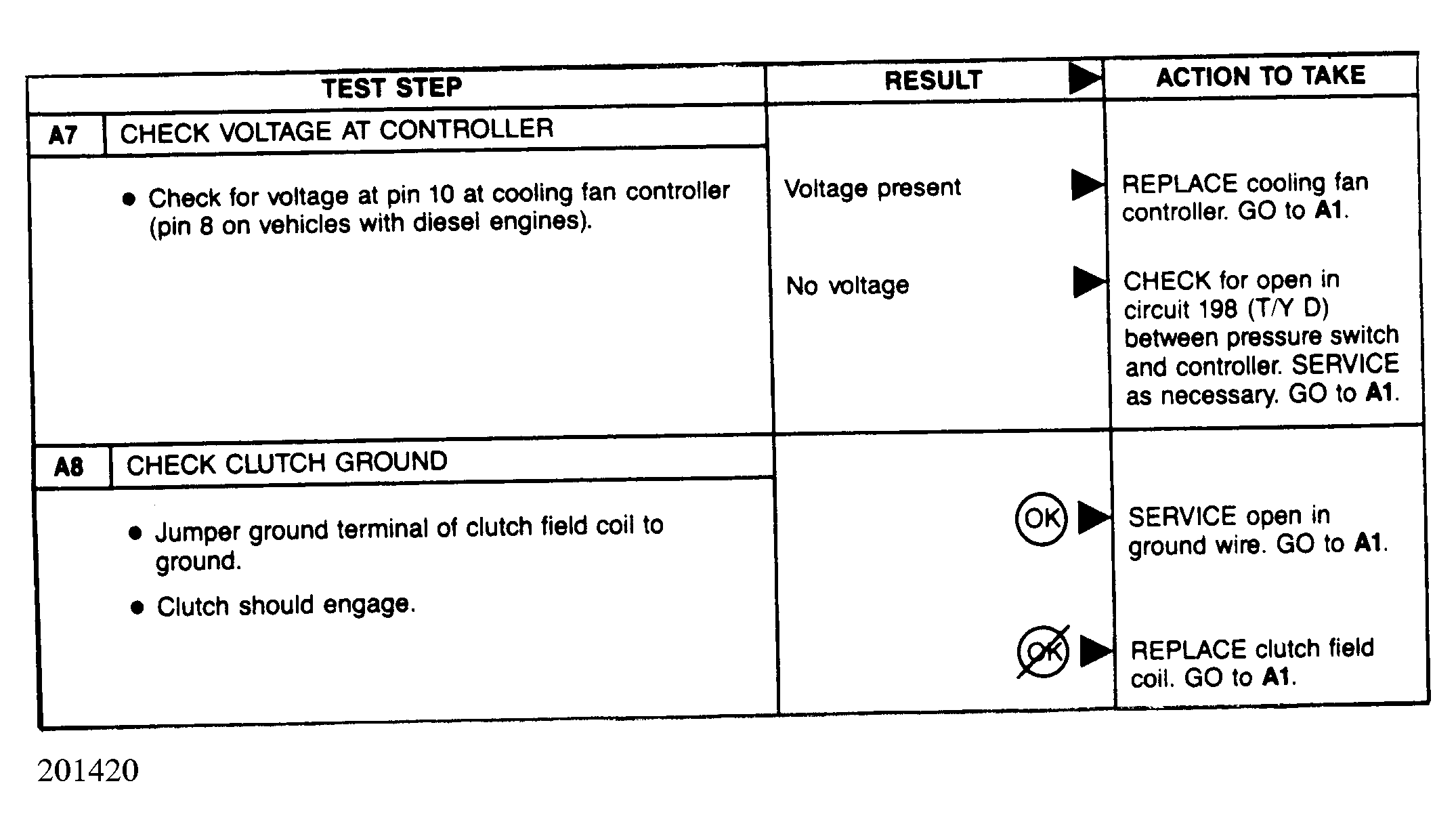

Fig 3: Compressor Clutch Diagnostic Charts (A7-A8)
G201420

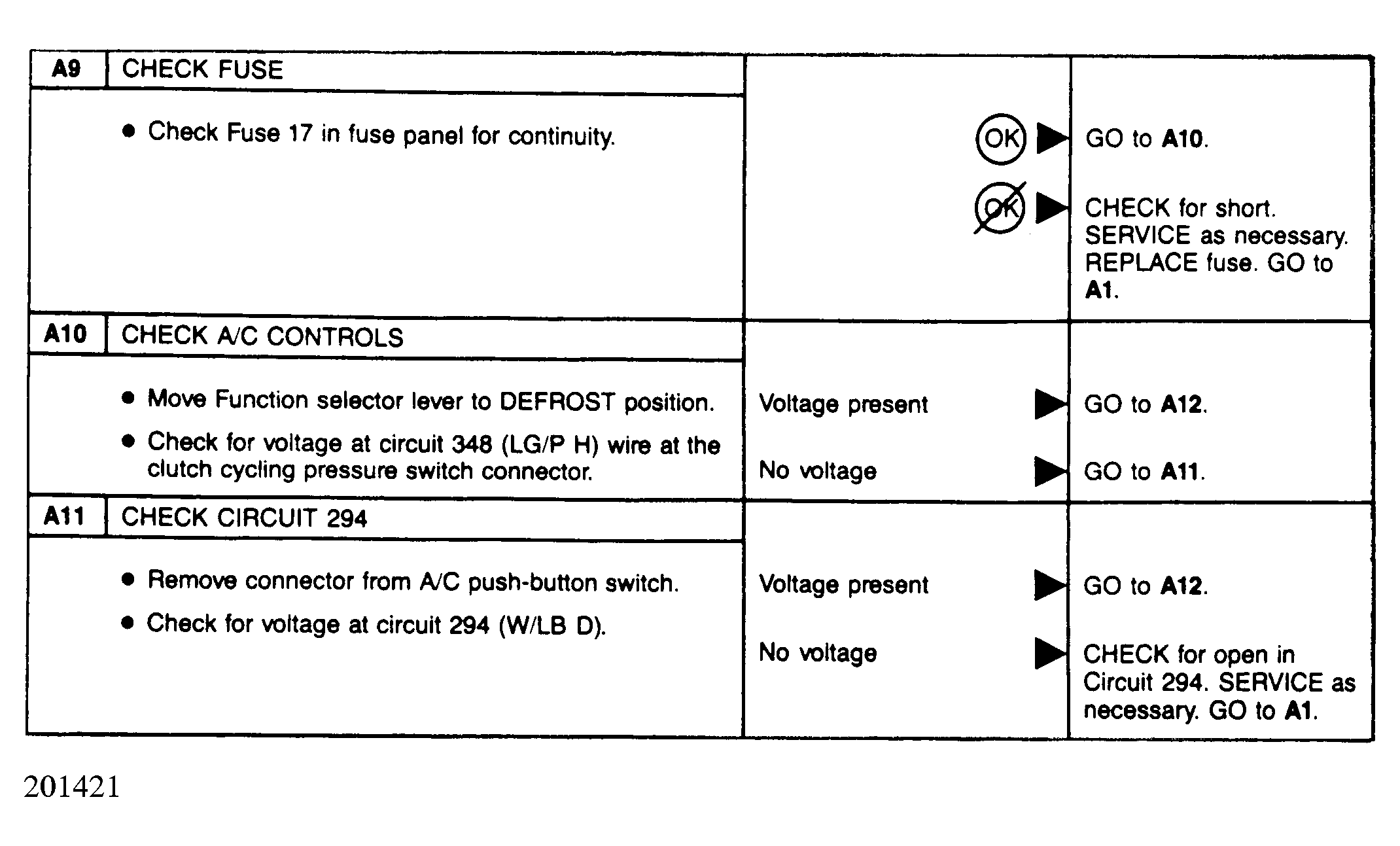

Fig 4: Compressor Clutch Diagnostic Charts (A9-A11)
G201421
