Timing Gears: Installation

  1. Align keyway on camshaft gear with key on camshaft. Slide gear onto camshaft and install camshaft gear retaining bolt.
  2. Align keyway in crankshaft gear with key in crankshaft and timing marks on both gears. See Fig 1 . Slide gear onto crankshaft.
  3. Reverse removal procedure to complete installation of remaining components.

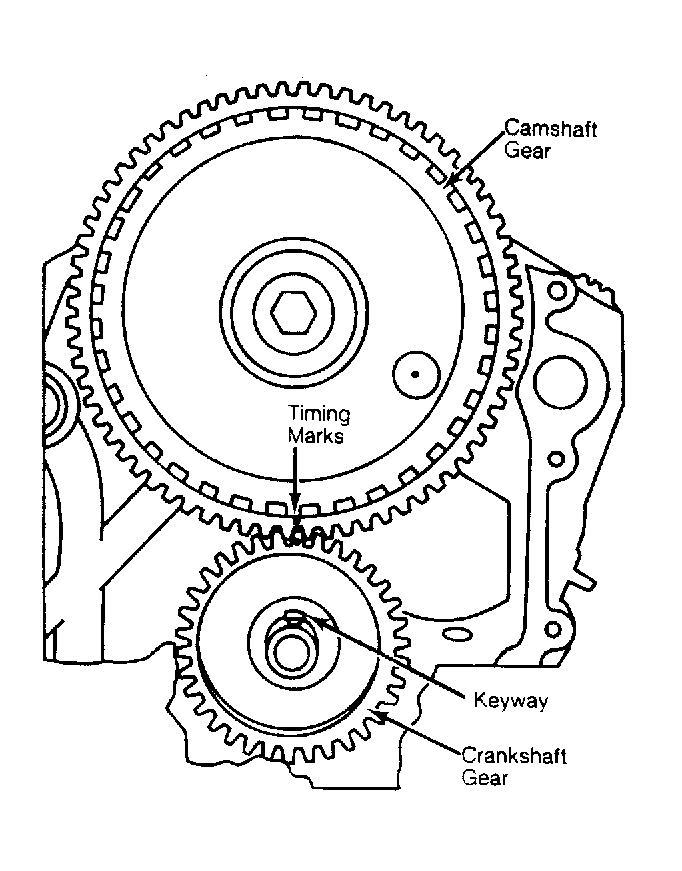

Fig 1: Aligning Timing Marks on Timing Gears
G91349
