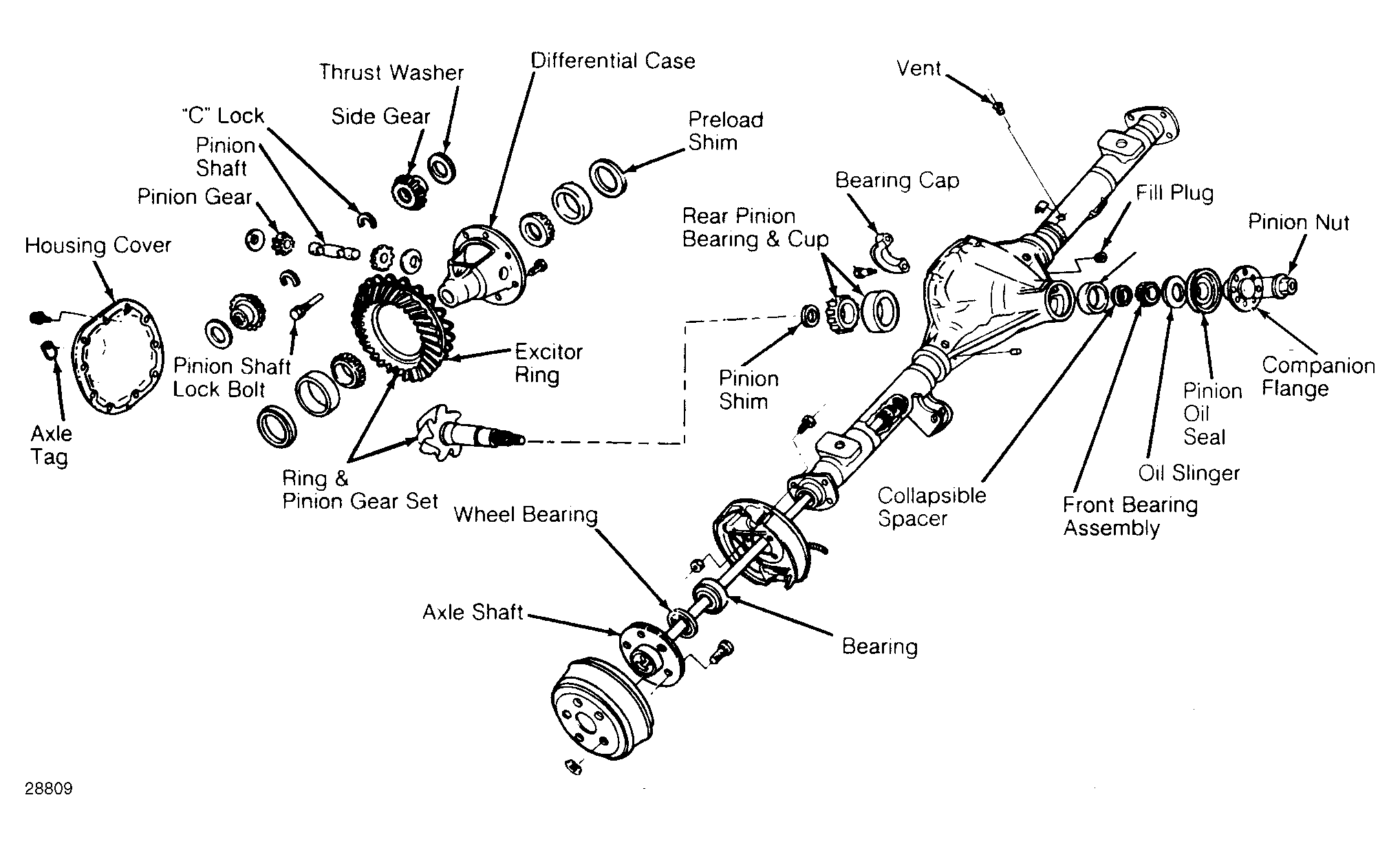

Axle Shafts & Bearings: Installation
- Lubricate bearing with rear axle lubricant and install with a driver. Install seal. If seal becomes cocked during installation, remove it and replace it with a new one.
- Insert axle in housing with care to avoid damage to oil seal. Install "C" locks and push shafts outboard to seat locks in counterbore of differential side gears.
- Replace pinion gears and washers (if removed) and install pinion shaft and lock bolt. Apply silicone sealant in a 1/8" to 3/16" bead on face of carrier housing and install housing cover.NOTE: No gasket other than the silicone seal is used. Cover assembly must be installed within 15 minutes of application of sealant.
