Washer Pump And Reservoir: Installation
To install, reverse removal procedure.

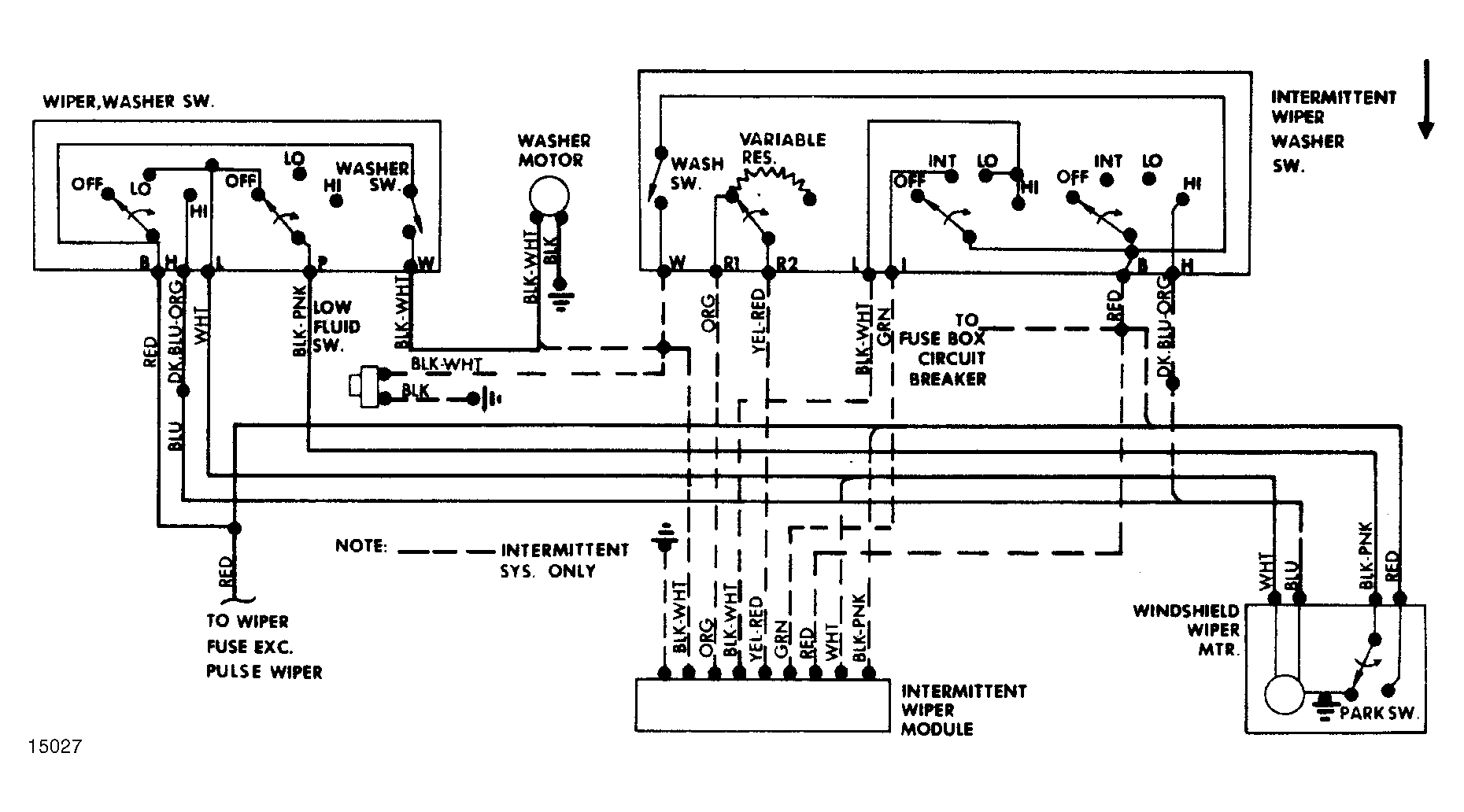

Fig 1: Bronco II and Ranger Wiper System Wiring Diagram
