Wiring Diagrams

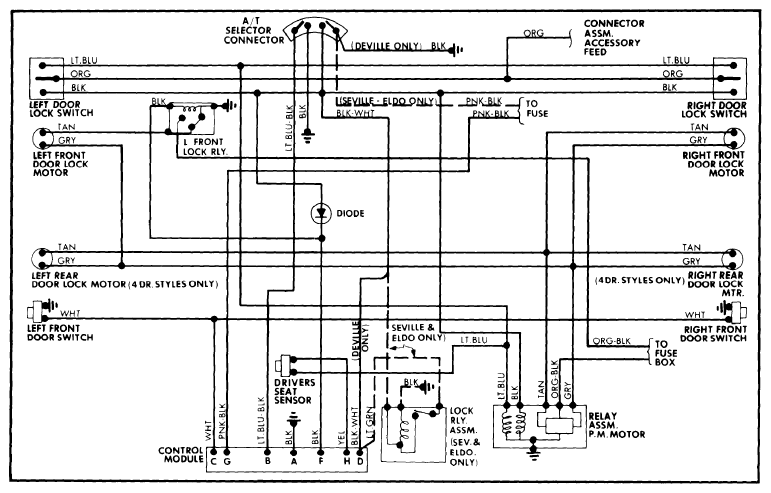

Fig 1: Automatic Door Lock Wiring Diagram for General Motors (Cadillac)

Courtesy of GENERAL MOTORS COMPANY

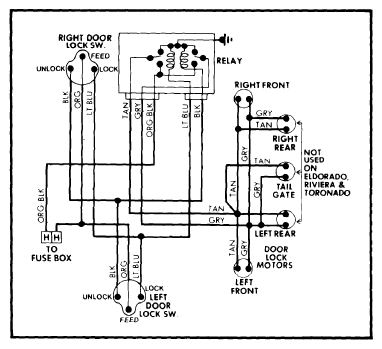

Fig 2: Relay System Electric Door Locks, Including Station Wagons with Both Door and Tailgate Locks, Wiring Diagram for General Motors

Courtesy of GENERAL MOTORS COMPANY

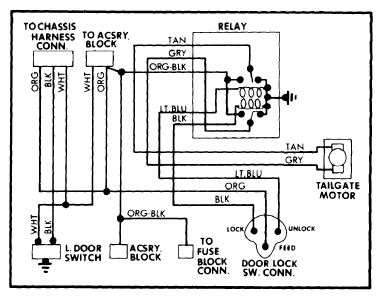

Fig 3: Relay System Electric Door Locks Wiring Diagram for Buick Station Wagon Tailgate Lock Only

Courtesy of GENERAL MOTORS COMPANY

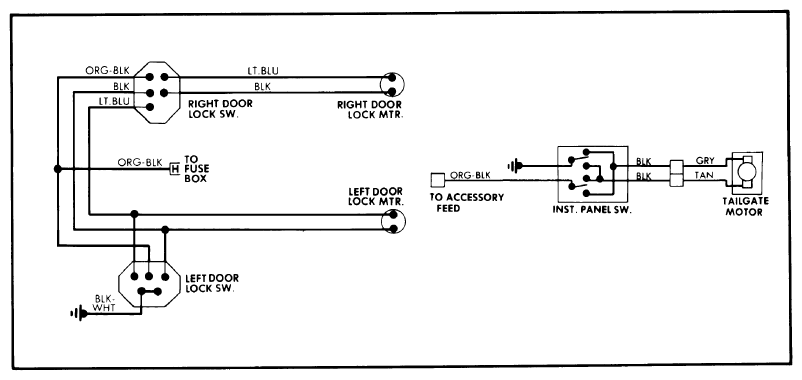

Fig 4: Polarity Switch System Door Locks Wiring Diagram for Camaro, Firebird and Station Wagons (Exc. Buick)

Courtesy of GENERAL MOTORS COMPANY

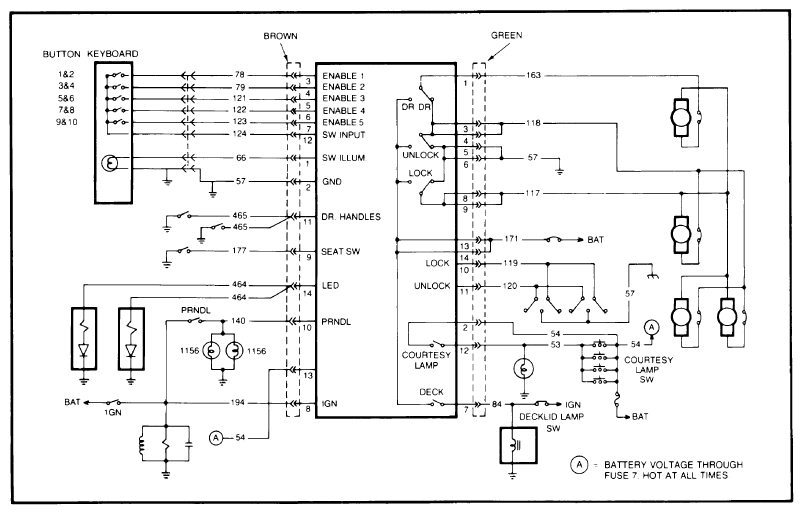

Fig 5: Keyless Entry System Wiring Diagram for Ford Motor Co.

Courtesy of GENERAL MOTORS COMPANY
