Wiring Diagrams - Printed Circuit - Ford & Mercury
>>
Wiring Diagrams
Wiring Diagrams

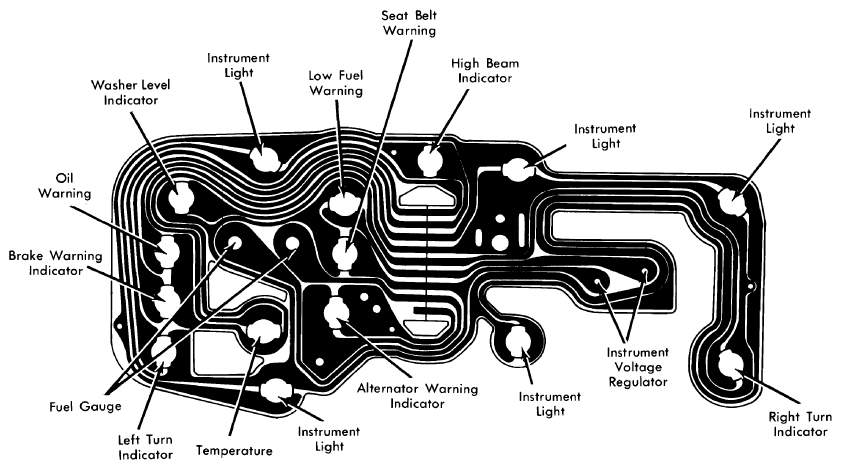

Fig 1: Ford Instrument Panel
Courtesy of FORD MOTOR CO.

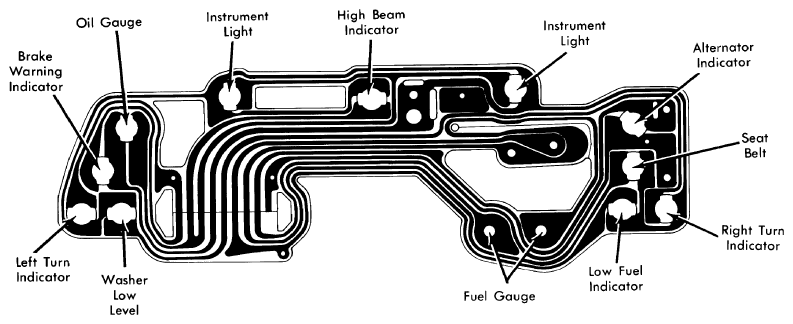

Fig 2: Mercury Instrument Panel
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
