Wiring Diagrams

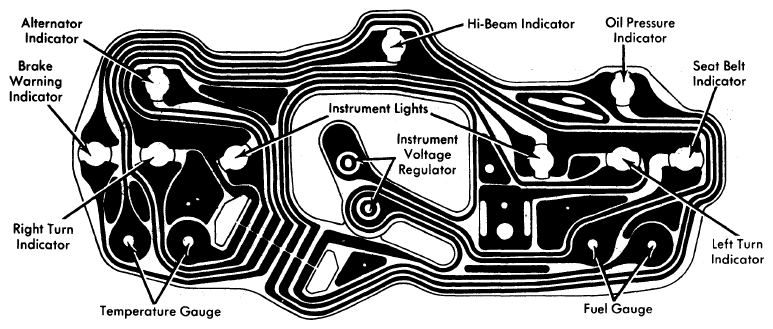

Fig 1: Ford "E" and "F" (All Models) With Alternator and Oil Pressure Indicator Lights

Courtesy of FORD MOTOR CO.

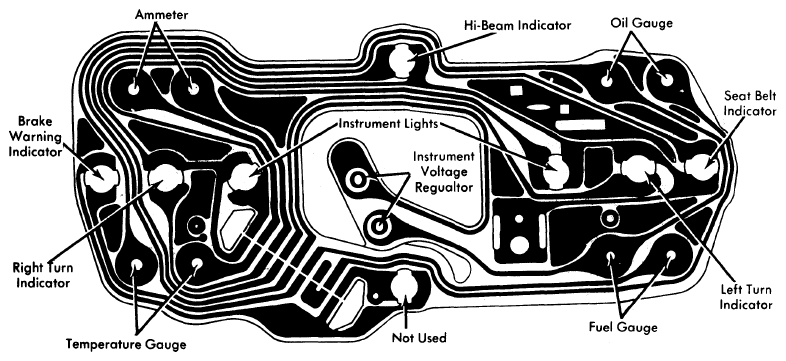

Fig 2: Ford "E" and "F" (All Models) With Ammeter and Oil Gauge

Courtesy of FORD MOTOR CO.

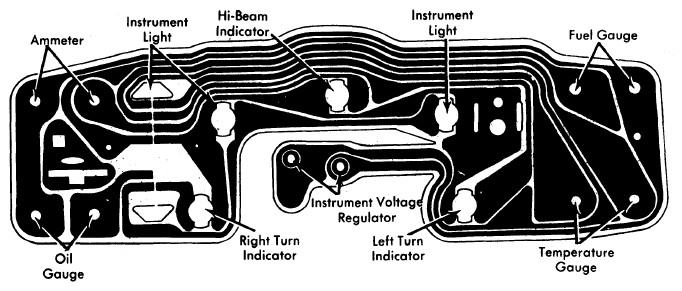

Fig 3: Ford M-450 and M-500 Motor Home Chassis

Courtesy of FORD MOTOR CO.
