Wiring Diagrams - Automatic Headlights
>>
Wiring Diagrams
Wiring Diagrams

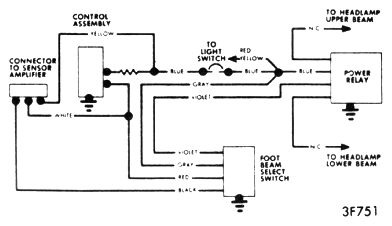

Fig 1: FORD MOTOR CO. HEADLIGHT DIMMER
Courtesy of FORD MOTOR CO.

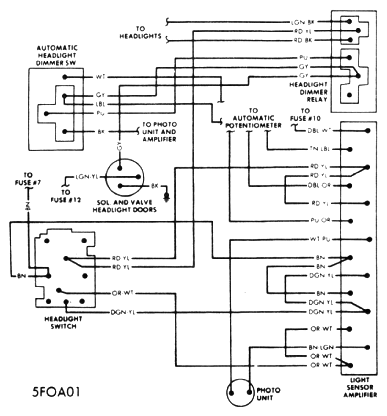

Fig 2: FORD MOTOR CO. AUTOLAMP.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
