Wiring Diagrams

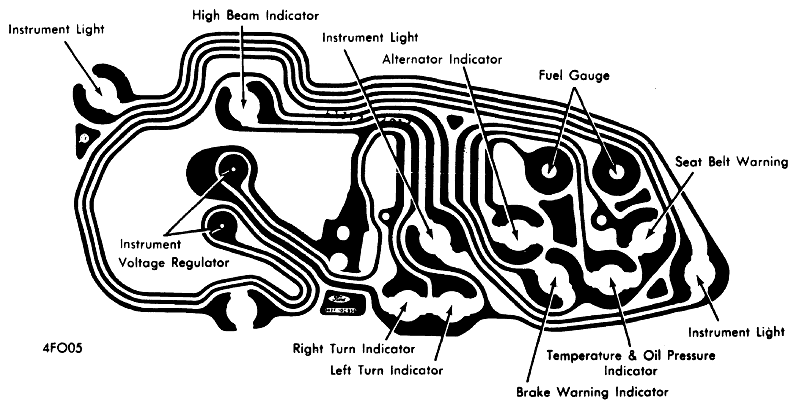

Fig 1: PINTO

G09306279

Courtesy of FORD MOTOR CO.

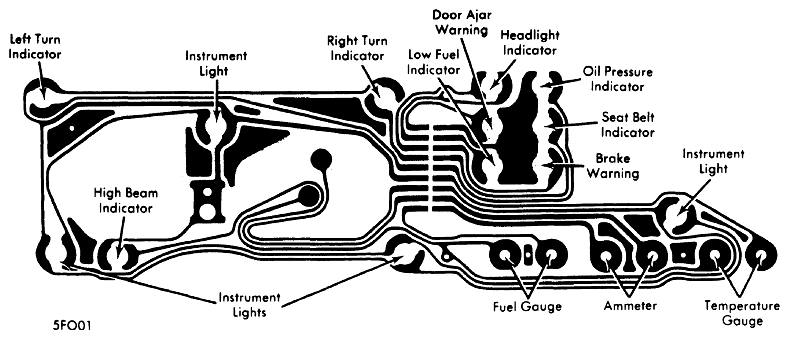

Fig 2: MUSTANG II

G09306280

Courtesy of FORD MOTOR CO.

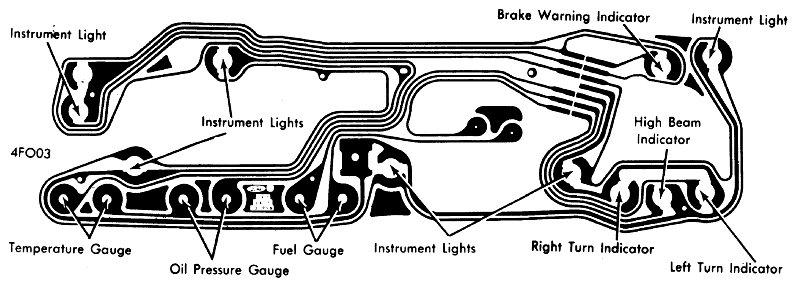

Fig 3: TORINO, MONTEGO, COUGAR (WITH GAUGES)

G09306281

Courtesy of FORD MOTOR CO.

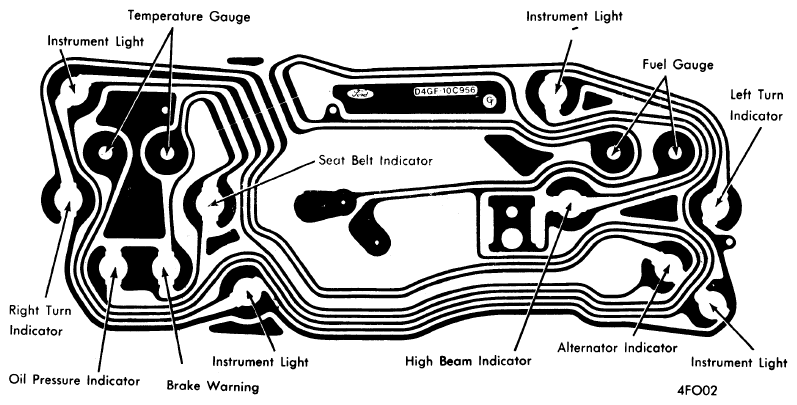

Fig 4: TORINO, MONTEGO

G09306282

Courtesy of FORD MOTOR CO.

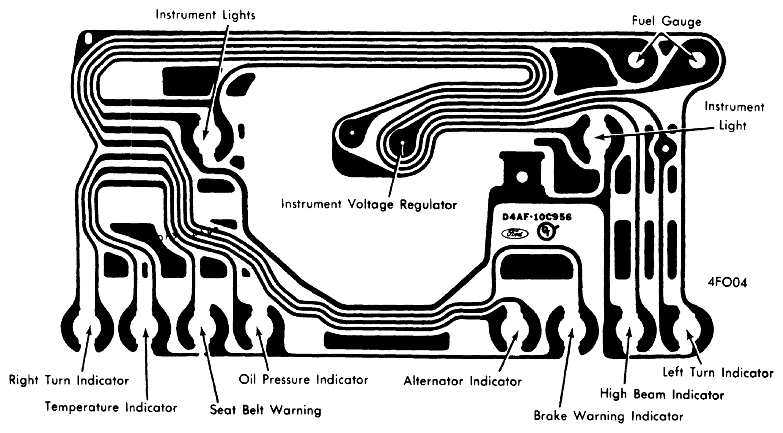

Fig 5: FORD, MERCURY

G09306283

Courtesy of FORD MOTOR CO.

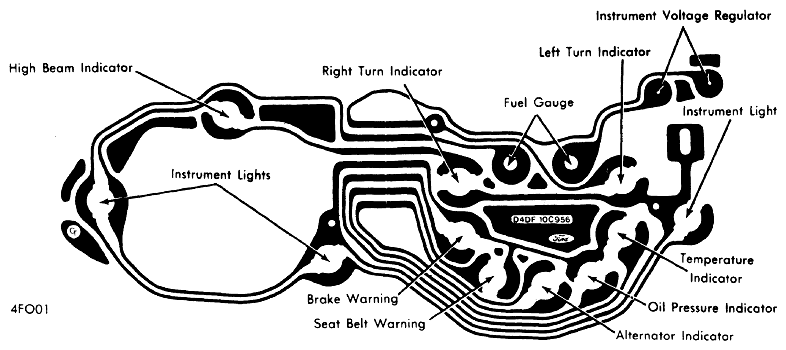

Fig 6: MAVERICK COMET

G09306284

Courtesy of FORD MOTOR CO.

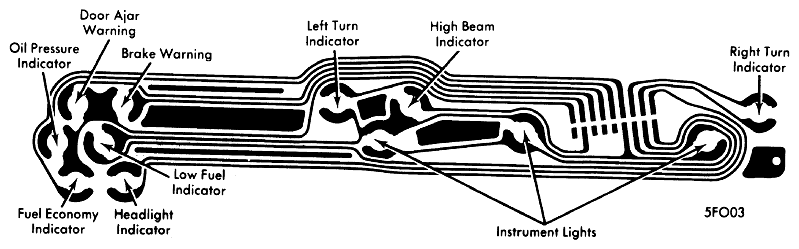

Fig 7: LINCOLN (UPPER)

G09306285

Courtesy of FORD MOTOR CO.

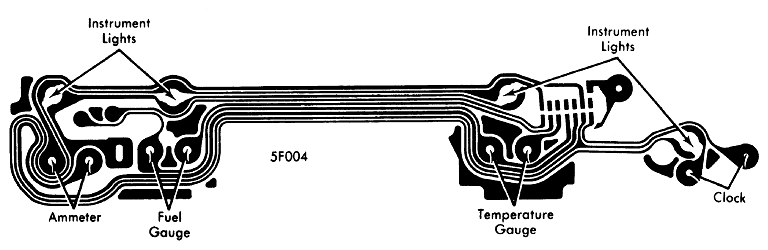

Fig 8: LINCOLN (LOWER)

G09306286

Courtesy of FORD MOTOR CO.

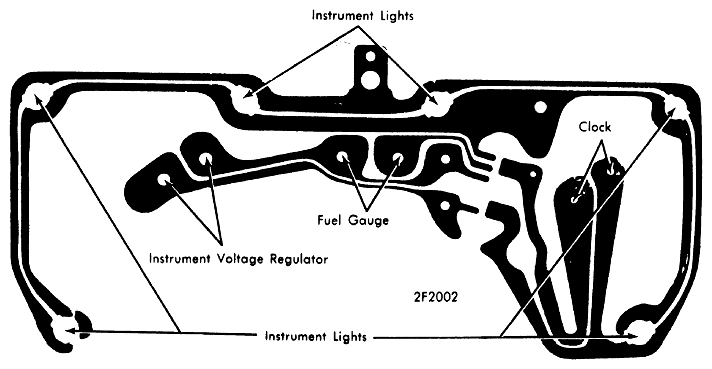

Fig 9: THUNDERBIRD

G09306287

Courtesy of FORD MOTOR CO.

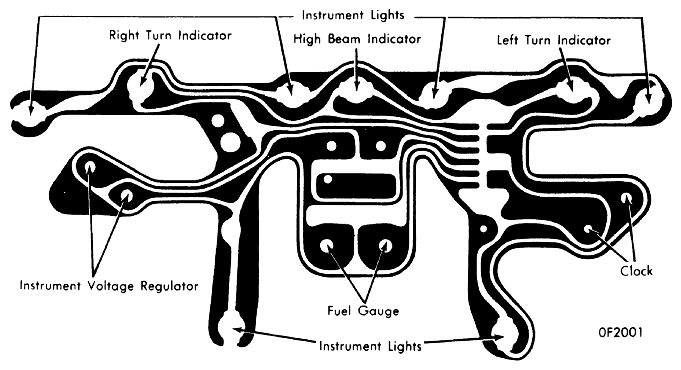

Fig 10: CONTINENTAL MARK IV

G09306288

Courtesy of FORD MOTOR CO.

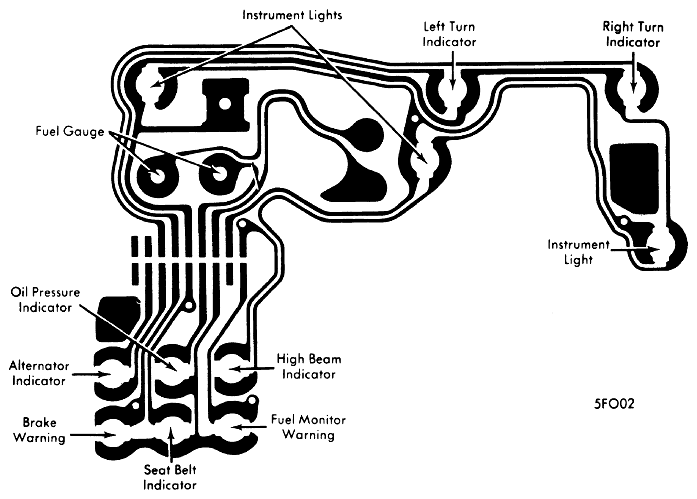

Fig 11: GRANADA & MONARCH

G09306289

Courtesy of FORD MOTOR CO.
