Pressure Differential Valve

Pressure Differential Valve should be replaced if found to be defective. Differential valve and brake warning lamp switch are separate units and each is serviced as a separate assembly only.

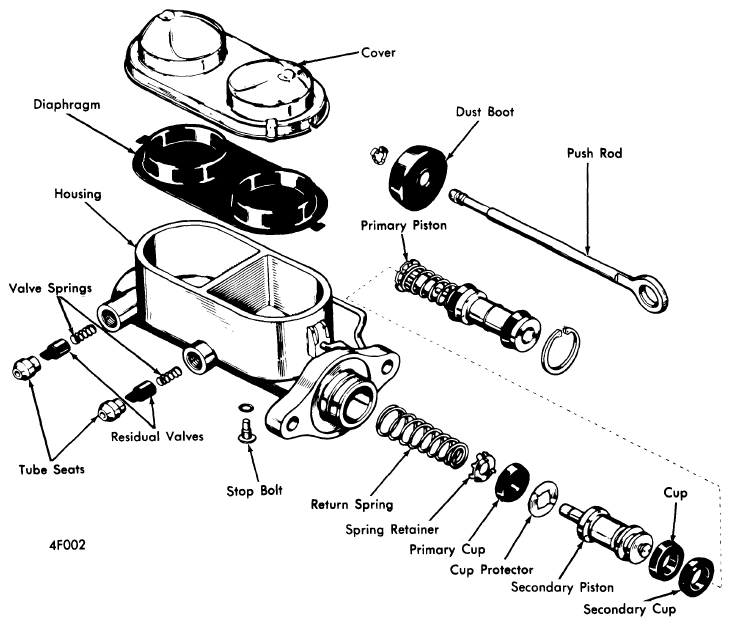

Fig 1: MASTER CYLINDER ASSEMBLY (TYPICAL)
G09339729Courtesy of FORD MOTOR CO.
