E-100, 200, 300 & F-100, 250, 350 (1970-74)

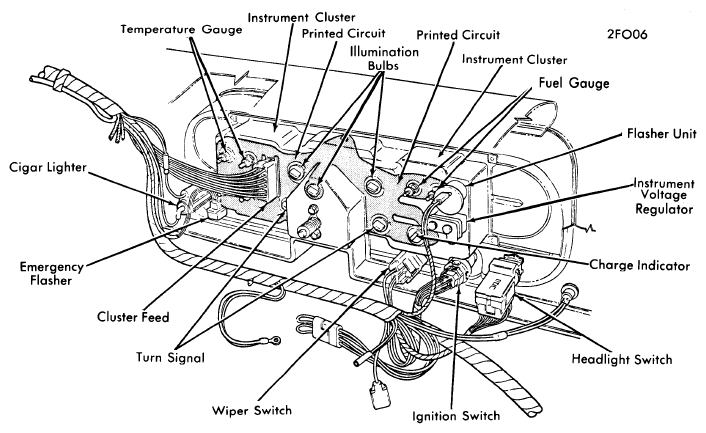

Remove instrument panel cluster as described. Snap off printed circuit connector buttons from voltage regulator. Remove voltage regulator from cluster (one retaining screw). Remove four gauge retaining nuts and seven light bulbs (all of which hold printed circuit to back of cluster). Remove printed circuit.
