U-100 (1965-67)

Remove headlight switch knob and shaft. Remove headlight switch bezel nut, lower switch and remove junction block (plug in type) from light switch. Remove switch.

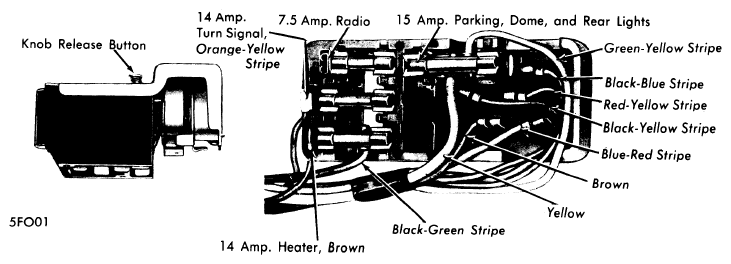

Fig 1: HEADLIGHT SWITCH WITH CIRCUIT BREAKER (TYPICAL)
G09324307Courtesy of FORD MOTOR CO.
