Description And Operation
3.5 inch Electronic Vehicle Information Center (EVIC)

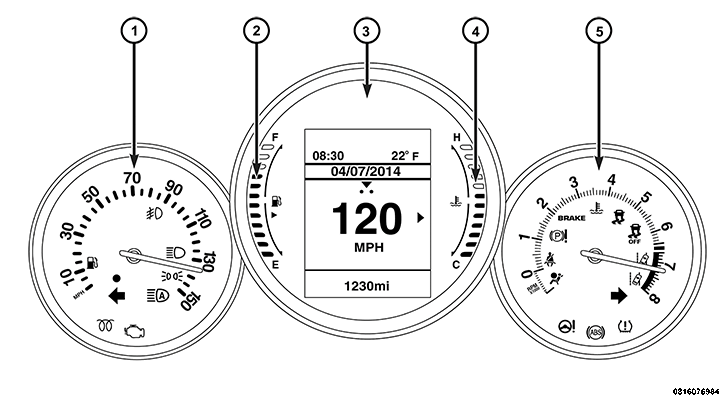

The EVIC display (3) is designed using the Thin Film Transistor (TFT) technology and is positioned in the center of the instrument panel. To access the EVIC menu, use the EVIC control switch on the left steering wheel spoke.
Examples of the possible menus within 3.5 inch EVIC are shown in illustration below:
| Menu | Submenu | |
| Digital speed | MPH or km/h |
| Vehicle information | Tire pressure Water temperature Transmission fluid temperature Fluid temperature Battery voltage Service |
| Trip A | Distance Average speed Time elapsed |
| Trip B | Distance Average speed Time elapsed |
| Fuel Economy | Instant consumption Average consumption Mileage from refuelling |
| Drive assist | LDW function display |
| Audio | Source currently used |
| Stored messages | Example: Low fuel level |
| Navigation | Direction display |
The display options of the EVIC can be navigated and selected using the EVIC control switches located on the left steering wheel spoke. For more information refer to the vehicle's owner manual.
The EVIC electronic display unit is integral to the IPC unit. If the EVIC is damaged or ineffective, the entire IPC unit must be replaced. Refer to REMOVAL AND INSTALLATION .
