Description And Operation: Description
The steering wheel button panel sends the commands to the BCM via the LIN line. The BCM translates the controls requested by the driver and sends them via CAN to the IPC module, to access menus and submenus.
Other display activation requests can come from other systems, to warn the driver when the corresponding system activates.

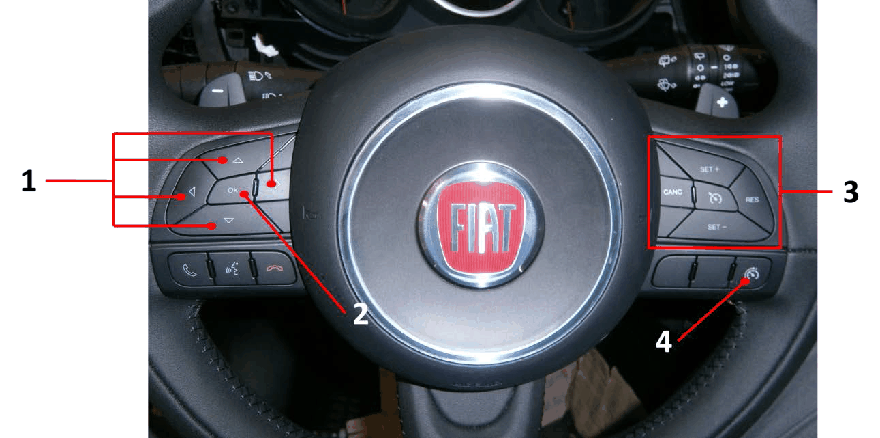

- Menu selection buttons (1)
- Selection confirmation button (2)
- Cruise control buttons (3)
- Speed Limiter (4)
The EVIC control switch cannot be adjusted or repaired. If any function of the switch is ineffective or damaged, the entire switch unit must be replaced.
