Front Floor Duct

WARNING:

Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable, then wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE:

Left side shown. Right side similar.

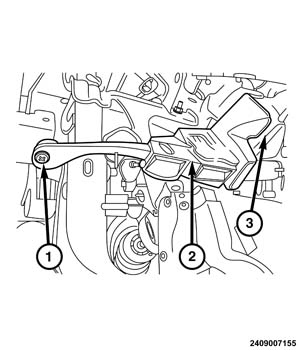

GC0159012Courtesy of CHRYSLER GROUP, LLC
  1. Remove the center console closeout.
  2. Remove the screw (1) that secures the floor duct (2) to the HVAC housing (3) and remove the duct, as necessary.
