Bezel, Instrument Cluster: Removal

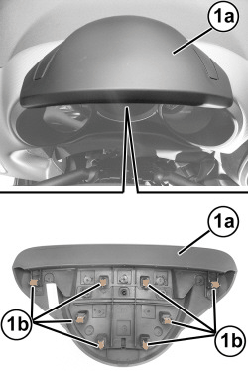

GC0184332Courtesy of CHRYSLER GROUP, LLC
  1. Working above the instrument cluster, pull up on the bezel (1a) disengaging its lower retainer clips (1b).
  2. Remove the cluster bezel from the vehicle.
