Headlamp Alignment
- Turn the headlamps ON and select the LOW beams.
- Block the light of the right headlamp.

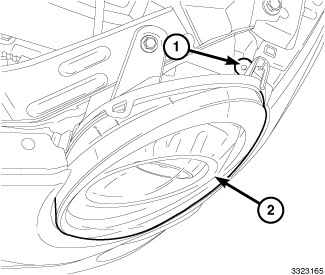

- Rotate the left headlamp (2) vertical adjustment screw (1) to adjust the right side of the beam pattern to the lamp horizontal reference height as required.
- Block the light of the left headlamp.
- Rotate the right headlamp vertical adjustment screw to adjust the right side of the beam pattern to the lamp horizontal reference height as required.
- For vehicles built for Mexico and Latin America markets only, use a screwdriver to rotate the headlamp horizontal adjustment screw (located inboard from the vertical adjustment screw) on each headlamp to adjust the beam right or left as required.
