Lamp, Tail/Stop/Turn: Removal: Bulb

Courtesy of CHRYSLER GROUP, LLC

Disconnect and isolate the battery negative cable.
Remove the rear lamp unit from the end of the quarter panel. Refer to LAMP, TAIL STOP TURN, REMOVAL .

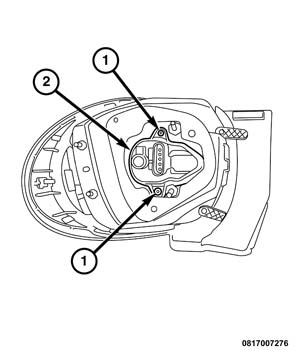

Remove the fasteners (1) that secure the socket plate (2) to the back of the lamp housing.
Pull the socket plate (2) straight out from the back of the lamp housing.

Courtesy of CHRYSLER GROUP, LLC

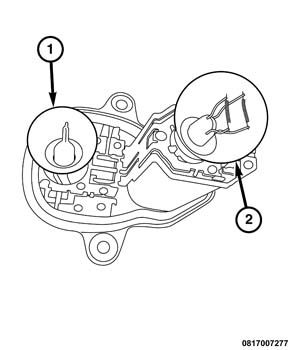

Firmly grasp the bulb (2) and pull the base of the bulb straight out of the socket plate.
